LLE FLEX 8mm 48V 8W 1200lm 8XX SNC2 R10

Tridonic LLE FLEX 8 mm 48 V 8 W 1200 lm

Supplied on 10 m reel

Power: approx. 8 W per metre · Luminous flux: approx. 1,200 lm per metre (typ.)

High design freedom: cut every 6.25 cm, 128 LED light points per metre

Variant overview (SNC2 R10)

All items below are technically identical (8 mm, 48 V DC, approx. 8 W/m, approx. 1,200 lm/m, SNC2 R10). The only difference is the colour temperature (CCT).

CCT legend: 827 = 2700 K · 830 = 3000 K · 840 = 4000 K (2700 K on request).

Product description

The LLE FLEX 48 V is a slim, flexible 8 mm LED tape (SELV) delivering uniform light lines in profiles, furniture and architectural accents. The module operates with 48 V DC (constant voltage) and is dimmable with suitable CV drivers. Made in Europe, long lifetime up to 60,000 h and 5-year guarantee (conditions at tridonic.com).

Main features

• 48 V constant voltage, dimmable (SELV) – compatible with Tridonic CV drivers (fixed output and dimmable).
• High efficiency – module efficacy up to 173 lm/W at tp=25 °C.
• High colour quality – CRI > 80 and CRI > 90, MacAdam 3 consistency.
• Design freedom – cut every 6.25 cm, 128 LED/m, uniform light lines with suitable diffuser.
• Easy mounting – 3M self-adhesive tape; PCB-to-PCB and wire-to-PCB connectors available (tool-free).
• reel2reel production – no solder joints on tape, easy to separate, low length tolerances⁽¹⁾.
• Ideal for aluminium profiles, also suitable for decorative and ambient lighting.

Typical applications

• Indirect cove lighting and linear wall/ceiling accents.
• Furniture, display and shelving lighting (retail/hospitality).
• Functional light lines in corridors, staircases and workspaces.
• Architectural details and niches with uniform light distribution.

Optical and electrical data

Supply voltage

48 V DC (constant voltage, SELV)

Power (typ.)

approx. 8 W per metre

Luminous flux (typ.)

approx. 1,200 lm per metre

Module efficacy

up to 173 lm/W at tp=25 °C

Useful luminous flux

up to 4,240 lm/m at tp=25 °C (depending on variant/CRI)

Colour temperatures (CCT)

3000 K (830), 4000 K (840); 2700 K (827) on request

Colour rendering

CRI > 80 and CRI > 90

Colour consistency

MacAdam 3 (low tolerance)

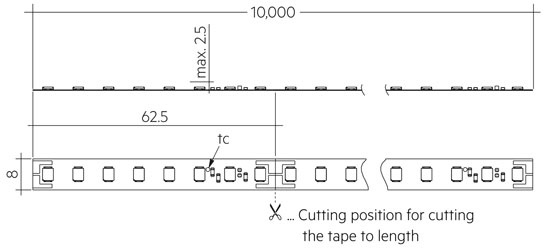

Mechanical properties

Width

8 mm (flexible LED module)

Cutting options

cut every 6.25 cm

LED density

128 LED per metre

Mounting

3M self-adhesive back; tool-free PCB/connector options available

Lifetime

up to 60,000 h

Guarantee

5 years (see conditions)

Reel

1 reel = 10 m

System solution

Optimised for use with Tridonic 48 V constant voltage LED drivers (fixed output and dimmable, e.g. PWM, 0/1–10 V or DALI-CV with suitable interface).

Important notes

• Use only 48 V DC SELV power supplies with sufficient power reserve.
• Observe polarity; never connect directly to 230 V.
• For thermal stability and uniform light: mount preferably in an aluminium profile with diffuser.
• Consider voltage drop on longer lengths; feed from both ends or with intermediate feed points if necessary.
• Cut only at marked 6.25 cm cut marks; observe minimum segment length.
• Respect maximum tp (temperature point) as per datasheet for lifetime and colour stability.
• Dimming only via a suitable 48 V CV driver; verify driver and dim protocol compatibility.
• Install and test according to applicable standards; professional installation recommended.

⁽¹⁾ For a 10 m reel max. 2 solder joints.
