ACL flex connector PCB - PCB | LED modules accessories

Name: Tridonic ACL flex connector PCB - PCB | LED modules accessories
Brand: Tridonic
Price: 3.52 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€3,52 Excl. tax €7,04 Excl. tax
€4,26 Incl. tax €8,52 Incl. tax. Out of stock, but available

Unit price: €3,52

ACL flex connector PCB-PCB for LLE FLEX modules. Easy open/close. For internal wiring, max. 5 A, 24–48 V. Compact accessory for LED modules. Read more

Specifications

Brand:

Tridonic

Article number:

28004988

EAN:

9006210833248

Availability:

Out of stock, but available

Information

Link to Tridonic website

Tridonic ACL flex connector PCB - PCB

Article number: 28004988

Product overview

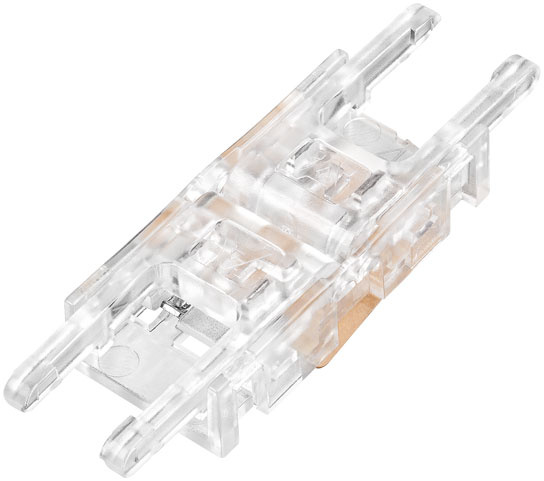

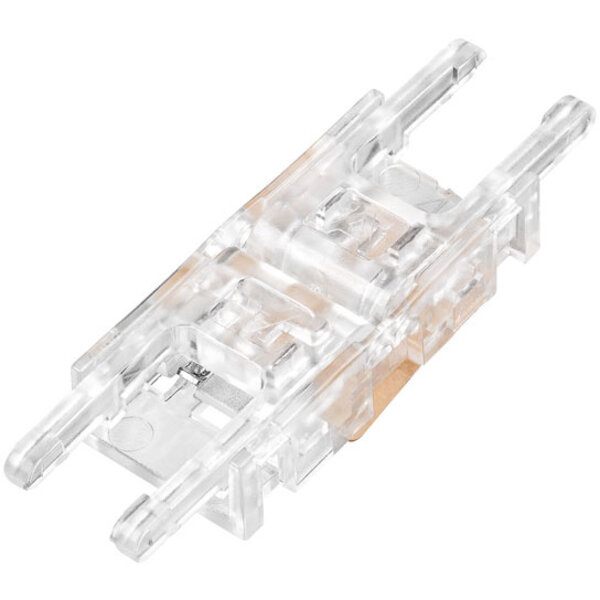

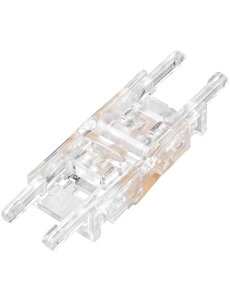

The ACL flex connector PCB-PCB is an accessory for LLE FLEX LED modules. Designed for internal wiring, easy to install and suitable for safe, reliable connections. Compact design with click closure that can be opened and closed repeatedly.

Product description

The connector is specifically developed for the connection of LLE FLEX modules and is intended for internal wiring only (no strain relief). Its design allows the connection to be opened and re-closed easily. Detailed assembly instructions are available in the application note at Tridonic.com.

Main features

Suitable for LLE FLEX LED modules.
For internal wiring only (no strain relief).
Easy assembly, connector can be opened and closed multiple times.
Maximum current: 5 A in combination with LLE FLEX.
Rated voltage: 24–48 V.
For wire cross section AWG 18.
Glow wire test according to IEC 60695-2-11.
Compact, robust design for LED applications.

Technical data

Article number: 28004988
EAN / UPC: 9006210833248
Compatibility: LLE FLEX LED modules
Application: Internal wiring (no strain relief)
Rated voltage (Urated): 24 – 48 V DC
Maximum current: 5 A in combination with LLE FLEX
Wire cross section: AWG 18
Test standard: Glow wire test IEC 60695-2-11
Country of origin: China (CN)
Customs tariff number: 85444290

Important notes

Intended for internal wiring only. Do not use as strain relief or external connector.
Maximum permissible current is 5 A in combination with LLE FLEX modules.
Rated voltage limited to 24–48 V. Never connect directly to 230 V.
Assembly instructions available in the application note at Tridonic.com.
Installation and operation only in accordance with applicable standards; qualified installer recommended.
