ACL flex connector Wire | PCB xxx mm

Name: Tridonic ACL flex connector Wire | PCB xxx mm
Brand: Tridonic
Price: 4.57 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€4,57 Excl. tax €9,14 Excl. tax
€5,53 Incl. tax €11,06 Incl. tax. Out of stock, but available

Unit price: €4,57

ACL flex connector Wire-PCB for LLE FLEX modules. Internal wiring (AWG18), cable length 100/500/2000 mm, easy and reusable, max. 5 A, 24–48 V, IEC 60695-2-11. Read more

Specifications

Brand:

Tridonic

Article number:

28004985

EAN:

9006210833187

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Tridonic website

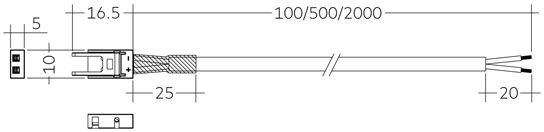

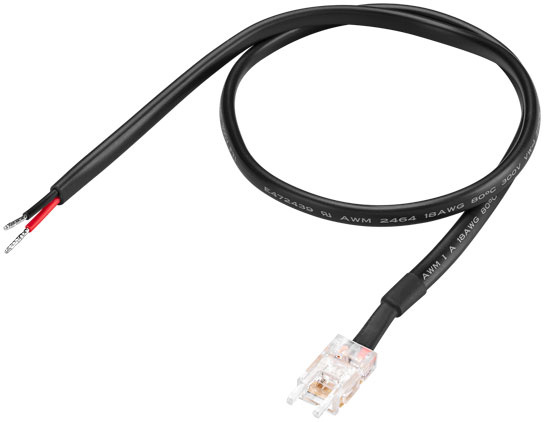

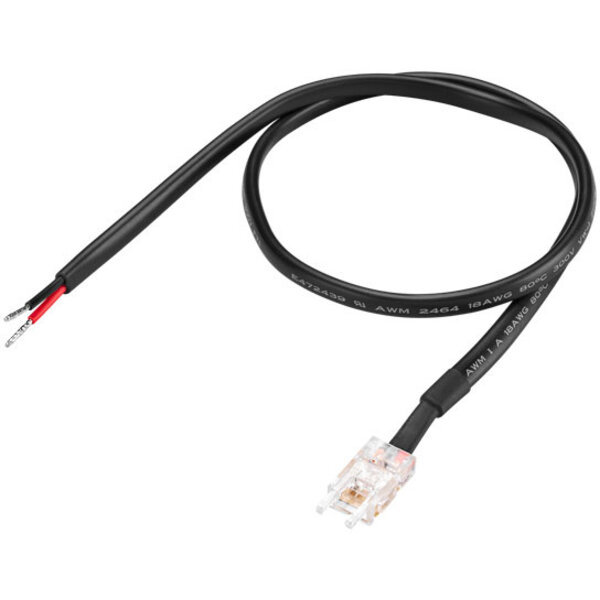

TRIDONIC ACL flex connector Wire – PCB (100/500/2000 mm)

The TRIDONIC ACL flex connector Wire–PCB is a reusable connector solution for the connection of LLE FLEX modules. Designed for internal wiring in luminaires or light lines, suitable for AWG18 conductors. The connector can be easily opened and closed for quick assembly, disassembly and maintenance.

Applications

Internal wiring of luminaires with LLE FLEX modules
Prototyping, service and maintenance requiring repeated assembly/disassembly
Series production of linear LED systems on printed circuit boards (PCB)

Main features

Reusable: connector can be opened and closed multiple times
For internal wiring only (no strain relief)
Glow wire test according to IEC 60695-2-11
Maximum current: 5 A (in connection with LLE FLEX)
Rated voltage (Urated): 24–48 V
Wire cross section: AWG 18
Compatible with TRIDONIC LLE FLEX modules
Easy assembly: see application note at tridonic.com

Technical data

Brand	TRIDONIC
Product name	ACL flex connector Wire – PCB
Application	Connection of LLE FLEX modules (internal wiring only)
Operating current	max. 5 A (with LLE FLEX)
Rated voltage (Urated)	24–48 V
Wire cross section	AWG 18
Safety test	Glow wire test according to IEC 60695-2-11
Assembly	Connector open/close; assembly instructions in application note
Strain relief	Not available
Usage	Inside luminaire / internal wiring

Variants & identification

Length	Article number	EAN
100 mm	28004985	9006210833187
500 mm	28004986	9006210833200
2000 mm	28004987	9006210833224

Important notes

This product is intended exclusively for internal wiring within luminaires and provides no strain relief. Additional cable clamps may be required depending on the application.
Observe the maximum current of 5 A and rated voltage of 24–48 V according to the specifications of the LLE FLEX modules used.
Follow the assembly instructions in the application note at tridonic.com to ensure proper and safe installation.
Use AWG18 wires or equivalent according to installation requirements; check compatibility with PCB and module layout.
