Constant Voltage – LC 60W 48V one4all NF SC EXC

69,19 Excl. tax €138,37 Excl. tax
€83,72 Incl. tax 167,43 Incl. tax.
Out of stock, but available
Unit price: €69,19 / Piece
Dimmable 48V LED driver, up to 60W, constant voltage. one4all interface and NFC, for LED strips. 1–100% dimming, 5-year guarantee, emergency lighting. Read more

Specifications

Brand:
Tridonic
Housing:
Surface mounted
Input voltage:
230Vac
DALI Type:
DT6
DALI-2 certified:
Yes
Article number:
28003534
EAN:
9006210745121
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

click here for information on the Tridonic website

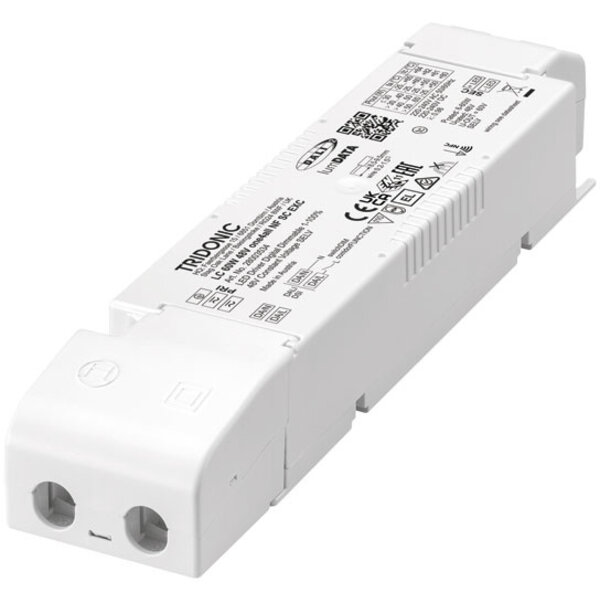

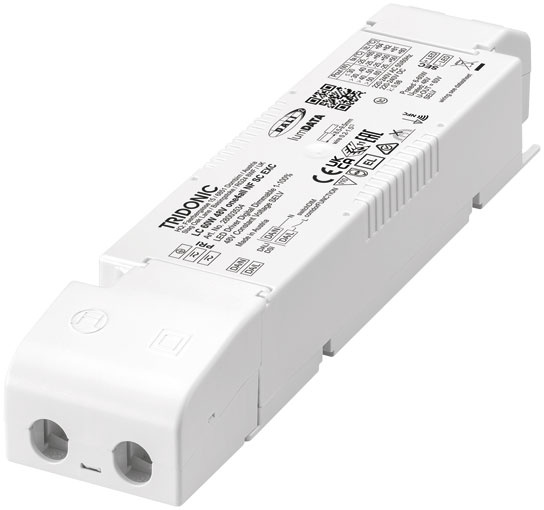

Tridonic LC 60W 48V one4all NF SC EXC

Art. No.: 28003534

The Tridonic LC 60W 48V one4all NF SC EXC is a compact, dimmable LED driver with a constant output voltage of 48V and a maximum output power of 60W. This driver is specifically designed for powering and dimming 48V LED strips and linear lighting, offering maximum flexibility thanks to the advanced one4all interface (DALI-2, DSI, switchDIM, corridorFUNCTION) and NFC functionality.

The driver is suitable for both built-in and independent mounting and comes standard with a clip-on strain relief for easy and safe installation. The LC 60W 48V one4all NF SC EXC meets emergency lighting system requirements according to EN 50172. With a wide dimming range of 1–100% and no need for an external dimmer, diverse installations are easily achievable. The compact design (195 x 43 x 30 mm) and convenient 45° push terminals make installation and wiring fast and efficient.

This driver features lumDATA for extensive reporting of luminaire data, energy usage, and maintenance diagnostics. Compatible with Tridonic LLE FLEX 48V systems (8 mm and 12 mm width, various lumen options). The nominal lifetime is up to 100,000 hours and the product comes with a 5-year guarantee (conditions).

Applications

  • Cove lighting (indirect light lines and accent lighting)
  • LED linear lighting integrated in ceilings
  • Facade accent lighting
  • Emergency lighting

Technical Data

  • Input voltage: 220–240 V AC (198–264 V AC), 176–280 V DC
  • Maximum output power: 60 W
  • Output voltage: 48 V DC (constant voltage)
  • Dimming range: 1–100% (no external dimmer required)
  • Nominal lifetime: up to 100,000 hours
  • Standby power consumption: <0.2 W
  • Efficiency: up to 91% (at full load, 230V)
  • Protection: IP20, SELV, short-circuit proof, overvoltage protection (320 V AC, 48 h)

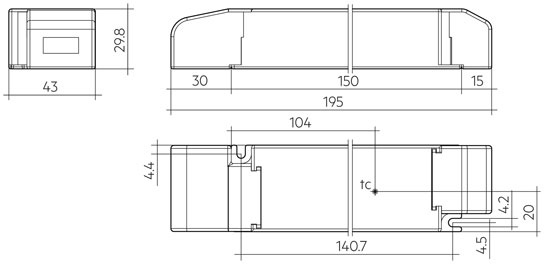

  • Dimensions: 195 x 43 x 30 mm
  • Interfaces: one4all (DALI-2, DSI, switchDIM, corridorFUNCTION), NFC
  • Input and output terminals: 45° push terminals
  • PWM frequency: ~1000 Hz
  • Power factor (λ): 0.98 (at 230V, full load)
  • THD: <10% (at 230V, full load)
  • Inrush current (peak/duration): 39 A / 187 µs
  • Output voltage ripple (LF): ±5% (<120 Hz)
  • Maximum output voltage: 60 V
  • Country of origin: Austria (AT)
  • Certifications: DALI-2, lumDATA, IP20, SELV, RoHS, UKCA, ENEC
  • Guarantee: 5 years
  • EAN: 9006210745121

Important Notes

  • Always test the function of external LED light sources at low dimming levels in advance.
  • Suitable for use in emergency lighting systems according to EN 50172.
  • Strain relief is included in all packaging variants.
  • Flexible use with Tridonic LLE FLEX 48V LED modules and accessories.
  • Refer to the data sheet for detailed installation instructions and compatibility.

Explanation of Tridonic constant voltage driver naming

For Tridonic constant voltage drivers such as the LC 60W 48V one4all NF SC EXC, the numbers mean:
60W = maximum output power in watts
48V = constant output voltage in volts
There is no adjustable output current range; the driver provides a fixed voltage, ideal for LED strips and linear lighting.
