ACL alu-profile Corner/Flexible 2m | LED mounting accessory
€29,52 Incl. tax €59,05 Incl. tax. Out of stock, but available
Specifications
Information
Description
Aluminium profiles with anodized, silver-coloured finish for LED applications. Available in Corner (angled profile) and Flexible (slim, flexible) versions. Designed for surface mounting and suitable for flexible LED strips up to 8 mm wide. Easy installation with matching covers (diffusers) and mounting accessories.
Important Note
- Covers (diffusers) and mounting accessories are sold separately.
- Maximum load: up to 30 W/m (depending on LED strip and thermal conditions).
- Check strip width (≤ 8 mm) and installation space before mounting.
Features
- Aluminium with anodized, silver-coloured finish (corrosion and scratch resistant).
- Length per profile: 2 metres.
- Compatible with various covers (click-in/slide-in, depending on type).
- System solution possible with LED strips (constant-voltage drivers) and LLE FLEX modules.
- Simple, neat and durable LED integration for furniture, ceilings, walls, showcases and cove lighting.
Variants

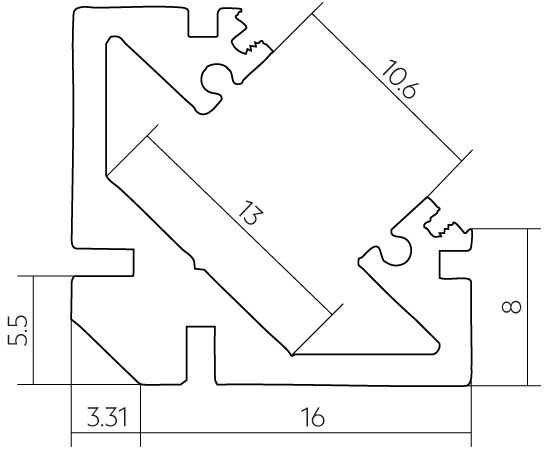

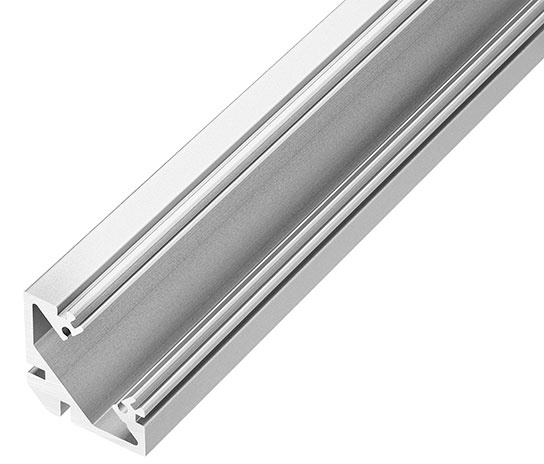

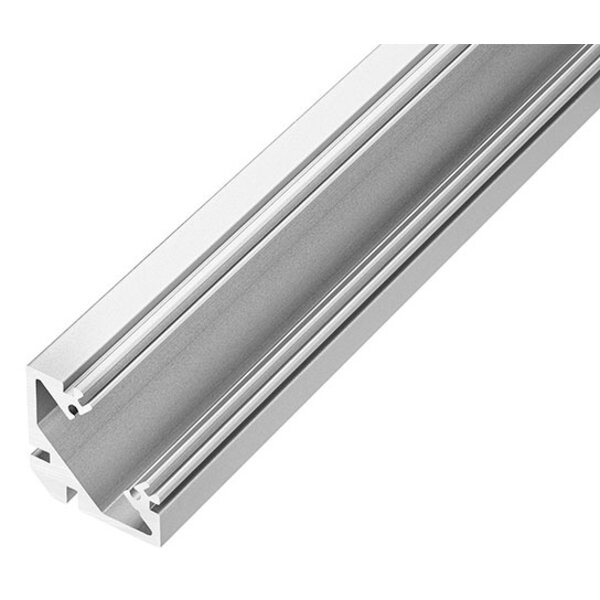

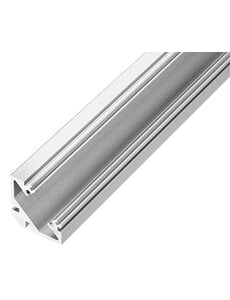

- Corner — 16 × 18.5 mm, length 2 m (Art. No. 28005794)

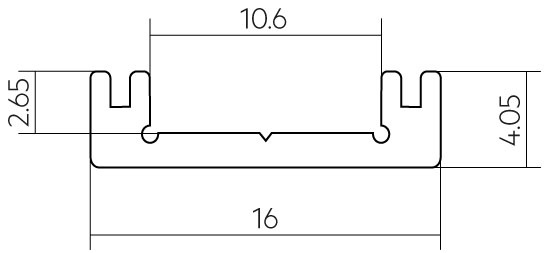

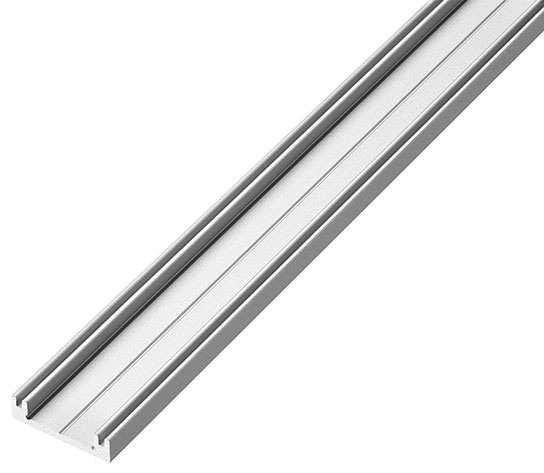

- Flexible — 16 × 4 mm, length 2 m (Art. No. 28005795)
Technical Specifications
| Material | Aluminium |
|---|---|
| Finish | Anodized, silver-coloured |
| Versions | Corner (angled profile), Flexible |
| Profile dimensions | Corner: 16 × 18.5 mm | Flexible: 16 × 4 mm |
| Length | 2 m per profile |
| Compatible LED strip width | Up to 8 mm (flexible strips) |
| Max. system power | Up to 30 W/m (depending on strip/driver) |
| Mounting | Surface mounted; fixation with suitable clips/screws (accessories separate) |
| Covers | Compatible diffusers/covers available (sold separately) |
| System compatibility | Suitable in combination with LLE FLEX modules and constant-voltage LED drivers |
| Applications | Indirect lighting, showcases, cove and accent lighting, furniture integration |
Scope of Delivery
1× aluminium profile (Corner or Flexible, as selected). Covers and mounting accessories are not included and must be ordered separately.
