ACL ALU-PROFILE Surface | 16x7/16x11mm 2m – LED profile
€14,76 Incl. tax €29,52 Incl. tax. Out of stock, but available
Specifications
Information
Product Description

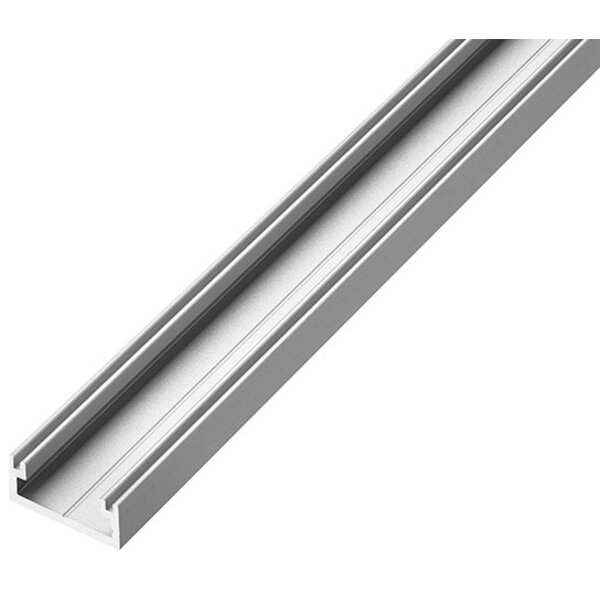

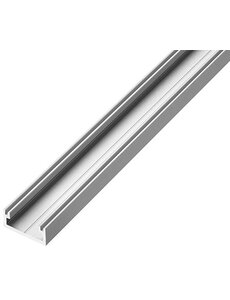

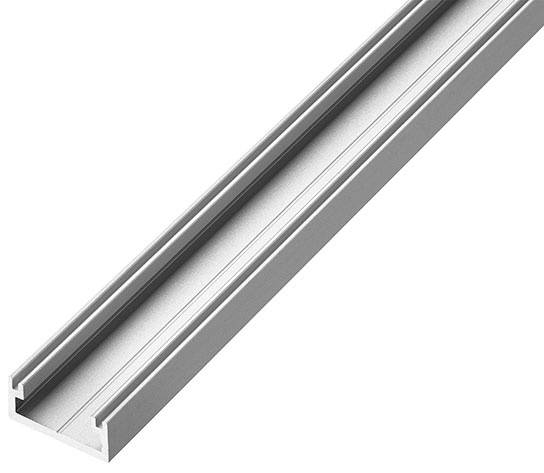

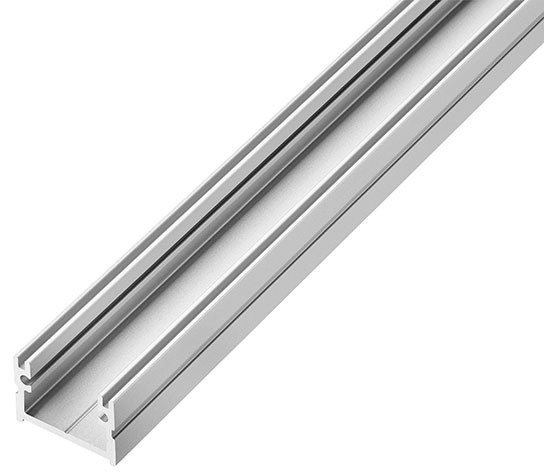

Aluminium surface-mounted profile with anodized, silver-coloured finish for a clean and durable installation of flexible LED strips. Ideal for creating uniform light lines on walls, ceilings, coves and furniture. Available in two profile sizes (16×7 mm and 16×11 mm) and supplied in 2 m length.
Main Features
- Material: Aluminium
- Finish: Anodized, silver-coloured
- Mounting: Surface mounted
- Suitable for flexible LED strips up to 8 mm width
- Provides thermal and mechanical support for LED strips
- Power density up to 30 W/m
- Compatible with Tridonic covers (diffusers) and mounting accessories
- System solution with Tridonic LLE FLEX modules and constant voltage drivers
- Made in Europe
- Warranty: 5 years (conditions: warranty conditions)
Applications
- Indirect and direct LED lighting in interiors
- Architectural accent lighting, cove and niche lighting
- Furniture, showcase and display lighting
- Office and retail environments for neat LED strip integration
Technical Specifications
| Property | 16×7 mm (Art. No. 28005790) | 16×11 mm (Art. No. 28005791) |
|---|---|---|

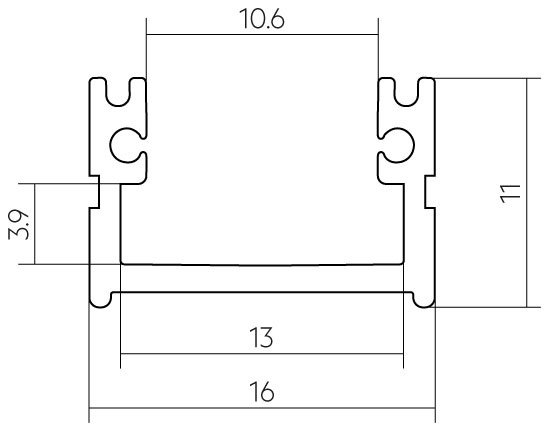

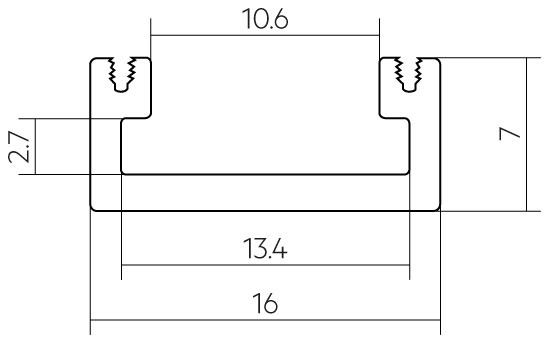

| Profile dimensions (W×H) | 16 × 7 mm | 16 × 11 mm |
| Length per piece | 2 m | |
| Material | Aluminium | |
| Finish | Anodized, silver-coloured | |
| Compatible strip width | up to 8 mm | |
| Max. power density | up to 30 W/m | |
| Mounting | Surface mounted; fixation with suitable clips/screws | |
| Compatible components | Tridonic covers/diffusers and mounting accessories (sold separately) | |
| System integration | Tridonic LLE FLEX modules + Tridonic CV drivers | |
| Origin | Europe | |
| EAN/UPC | 9006210879628 | — |
| Warranty | 5 years (see warranty conditions) | |
Scope of Delivery
1× aluminium surface-mounted profile (2 m). Covers (diffusers), end caps, mounting clips and other accessories are not included and must be ordered separately.
Important Notes
- Install only on stable, flat surfaces with appropriate fixation.
- Check thermal load of the LED strip (max. 30 W/m) and ensure sufficient heat dissipation.
- Use only LED strips ≤ 8 mm wide to ensure proper fitting of profile and cover.
- Choose compatible Tridonic covers and accessories for optimal light distribution and protection (IP rating depends on cover and installation, not waterproof without additional measures).
- Cutting and drilling may damage the anodized surface; deburring and protection are recommended.
