Constant Current LED driver LC 30/350-700/50 DA SC SNC4

Information

Hier klicken für Informationen auf der Tridonic-Website

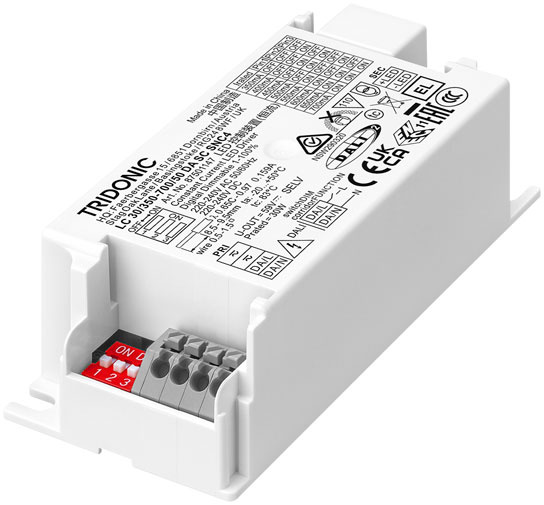

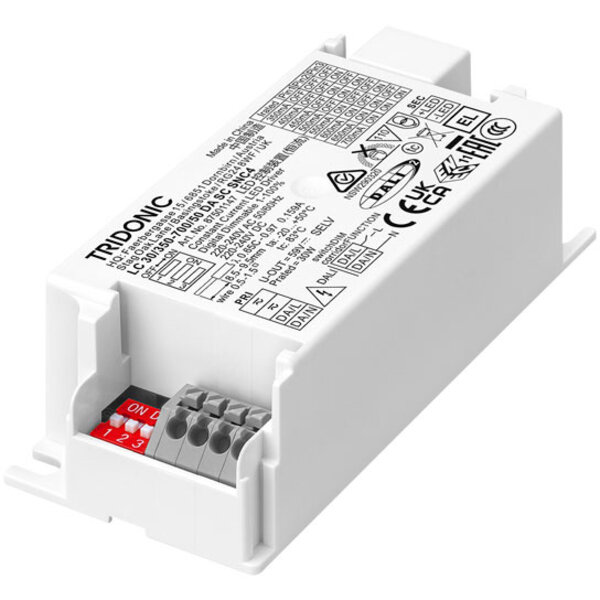

Tridonic LC 30/350-700/50 DA SC SNC4 Compact LED Driver

Art. No.: 87501147

The Tridonic LC 30/350-700/50 DA SC SNC4 is a compact, dimmable constant current LED driver, suitable for both built-in and independent use (with clip-on strain relief). This driver provides a maximum output power of 30 W and an adjustable output current from 350 to 700 mA (selectable via dip switch or DALI, adjustable in 1-mA steps via DALI). Thanks to DALI-2, CLO function (Constant Light Output), high efficiency and comprehensive protective features, this driver is ideal for general, decorative and emergency lighting applications.

Explanation of Tridonic Product Designation

• 30 = maximum output power in watts
• 350–700 = adjustable output current range in mA
• 50 = maximum output voltage in volts

Main Features

• Compact, dimmable constant current LED driver
• Selectable output current: 350, 400, 450, 500, 550, 600, 650, 700 mA (preselected: 350 mA)
• Fine adjustment of output current via DALI in 1-mA steps
• Maximum output power: 30 W
• Dimming range: 1 – 100% (min. 5 mA)
• DALI-2, switchDIM and corridorFUNCTION support
• Constant Light Output (CLO) function
• Suitable for luminaires of protection class I and II
• Temperature protection according to EN 61347-2-13 C5e
• Suitable for emergency lighting systems according to EN 50172

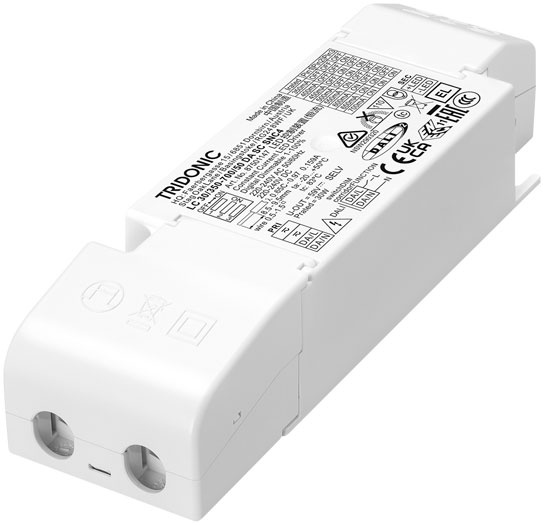

• Clip-on strain relief with through-wiring function possible
• Polycarbonate housing, white
• IP20 protection
• Long lifetime up to 100,000 hours
• 5 years warranty (conditions)

Technical Data

• Rated supply voltage: 220 – 240 V
• AC voltage range: 198 – 264 V
• DC voltage range: 176 – 280 V
• Mains frequency: 0 / 50 / 60 Hz
• Max. output power: 30 W
• Output current: 350 – 700 mA, selectable via dip switch/DALI
• Max. output voltage: 59 V
• Output power range: 5.25 – 30 W
• Typical efficiency: up to 88% (at 230 V, full load)
• Power factor (λ): max. 0.97 / min. 0.65
• THD (at 230 V, full load): < 15%
• Output ripple (LF <120 Hz): ±5%
• In-rush current (peak/duration): 24 A / 98 µs
• Stand-by power consumption: < 0.45 W
• Overvoltage protection: 320 V AC, 48 h
• Surge capability: L-N: 1 kV, L/N-PE: 2 kV, output-PE: <3 kV
• Protection class: II
• Type of protection: IP20

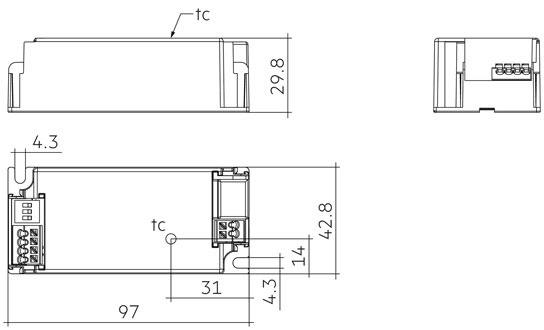

• Dimensions (L x W x H): 97 x 43 x 30 mm
• Weight: approx. 95 g
• Lifetime: up to 100,000 hours
• Approvals: DALI-2, CE, ENEC, UKCA, RoHS, SELV
• Country of origin: China
• EAN/UPC: 9006210857695
• Customs tariff No.: 85044095
• SCIP: b0eb0d35-8ca7-400d-8611-9c14ecdd17c9

Important Notes

• Please consult the warranty conditions for details.
• Suitable for emergency lighting according to EN 50172.
• Do not cover during operation (IP20, "Do Not Cover").
• For indoor use only.
