75W Constant Current LED Driver 100–700 mA | NFC configurable | 230V Input – EXC3 IP20 – for industrial applications (-40°C to +80°C)

Name: Tridonic 75W Constant Current LED Driver 100–700 mA | NFC configurable | 230V Input – EXC3 IP20 – for industrial applications (-40°C to +80°C)
Brand: Tridonic
Price: 31.57 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€31,57 Excl. tax €63,13 Excl. tax
€38,20 Incl. tax €76,39 Incl. tax. Out of stock, but available

Unit price: €31,57 / Piece

Industrial LED driver with adjustable current from 100–700 mA, 75 W power, -40 to +80 °C temperature range, and NFC configuration. Ideal for demanding environments. Read more

Specifications

Brand:

Tridonic

Housing:

Surface-mounted housing

Input voltage:

230Vac

DALI Type:

DT6

DALI-2 certified:

Article number:

87500919

EAN:

9006210723686

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

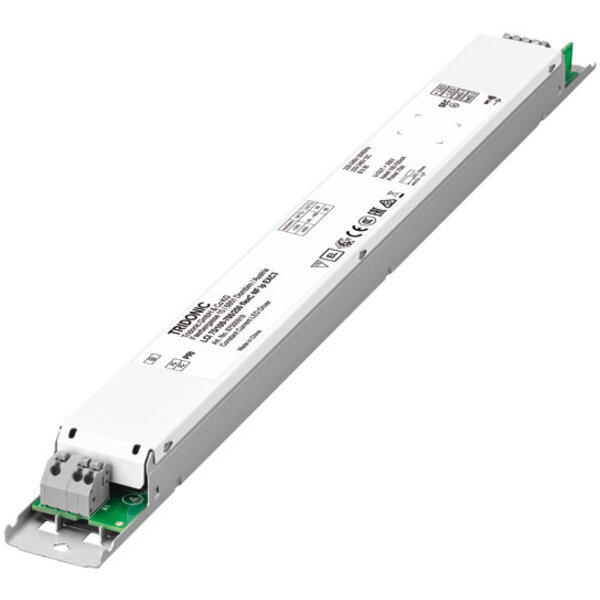

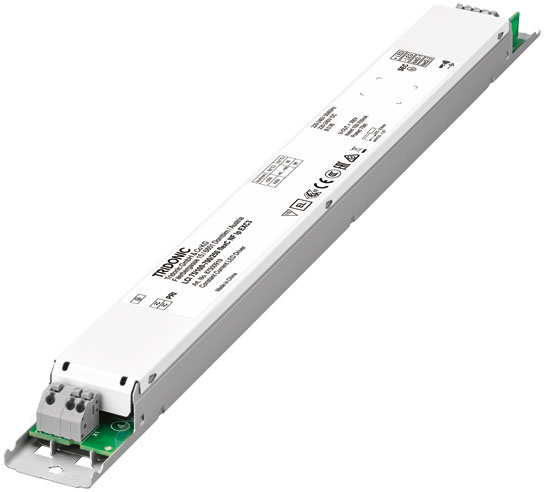

Tridonic LCI 75/100-700/250 flexC NF lp EXC3 LED Driver

The Tridonic LCI 75/100-700/250 flexC NF lp EXC3 is a powerful LED driver designed for industrial applications in demanding environments. With an adjustable output current from 100 to 700 mA and a maximum output power of 75 W, this driver offers flexibility and reliability.

Key Features:

Adjustable output current from 100–700 mA in 1 mA steps via I-SELECT 2 or NFC
Maximum output power: 75 W
Wide temperature range: -40 to +80 °C
Robust metal housing with IP20 protection
Withstands voltage peaks up to 4 kV
Lifetime up to 120,000 hours at ta 65 °C
8-year warranty under Tridonic conditions
Supports emergency lighting systems per EN 50172

Technical Specifications:

Input voltage: 220–240 V AC / 176–280 V DC
Frequency: 0 / 50 / 60 Hz
Power factor at full load: 0.95
Efficiency at full load: up to 93%

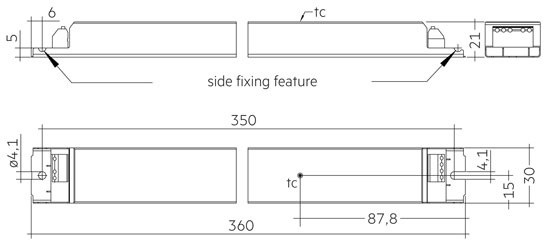

Dimensions (L x W x H): 360 x 30 x 21 mm
Weight: 0.302 kg

This driver is ideal for linear and area lighting in industrial environments such as warehouses and factories. Thanks to its flexible configuration options and robust construction, the Tridonic LCI 75/100-700/250 flexC NF lp EXC3 is a reliable choice for demanding applications.
