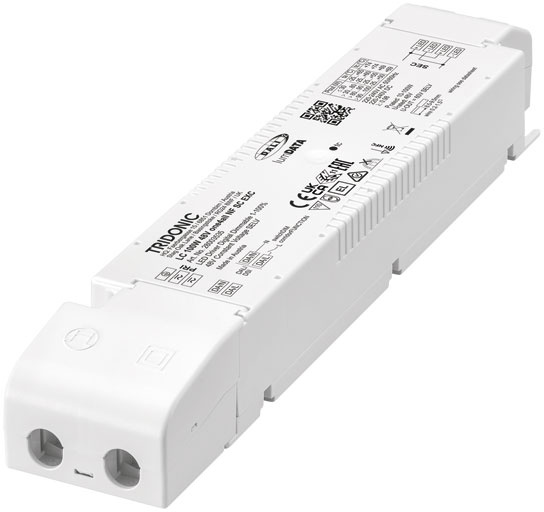

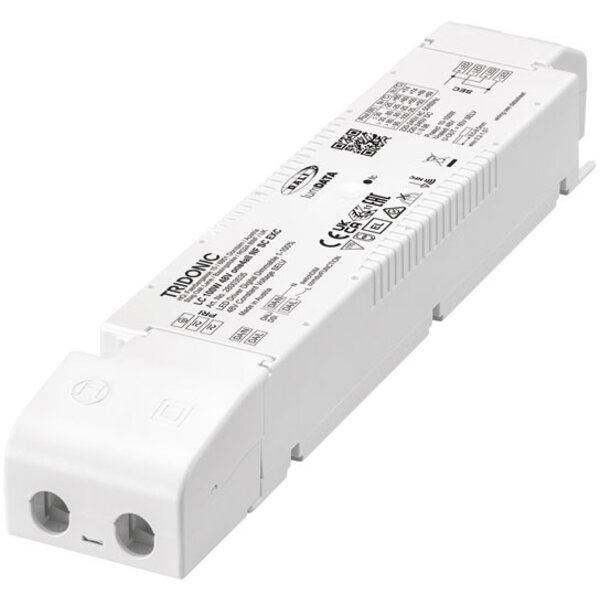

Tridonic LC 100W 48V one4all NF SC EXC

Art. No.: 28003535

Explanation of Tridonic constant voltage driver designation

With Tridonic constant voltage drivers, such as the LC 100W 48V one4all NF SC EXC, the numbers refer to:
100W = maximum output power in watts
48V = constant output voltage in volts
There is no adjustable output current range; the driver delivers a fixed voltage, ideal for LED strips and linear lighting.

Application

The Tridonic LC 100W 48V one4all NF SC EXC is a compact, dimmable 48 V constant voltage LED driver, ideal for flexible LED strips and applications requiring high efficiency and reliable control. Thanks to the integrated one4all interface, this driver supports various dimming methods and offers full compatibility with modern control systems and lumDATA features (luminaire data, energy reporting, diagnostics & maintenance).

Main features

• NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
• Dimmable 48 V constant voltage LED driver for flexible strips
• Suitable for built-in or independent use with supplied strain relief
• Dimming range from 1 to 100% via one4all (DALI-2, switchDIM, corridorFUNCTION, etc.)
• No external dimmer needed
• Suitable for emergency lighting systems according to EN 50172
• Nominal lifetime up to 100,000 hours
• High efficiency: up to 93%
• IP20 protection class, SELV, short-circuit proof
• Housing type: polycarbonate, white
• Complies with current approvals and standards (DALI-2, CE, UKCA, ENEC, RoHS, RCM, KCC, CCC, EAC, etc.)

Technical specifications

• Supply voltage: 220 – 240 V AC
• AC voltage range: 198 – 264 V
• DC voltage range: 176 – 280 V
• Mains frequency: 0 / 50 / 60 Hz
• Overvoltage protection: 320 V AC (48 hours)
• Typ. rated current (at 230 V, 50 Hz, full load): 450 mA
• Typ. current (220 V, 0 Hz, full load, 15% dim level): 85 mA
• Leakage current (at 230 V, 50 Hz, full load): < 0.55 mA
• Typ. input current in no-load operation: < 38 mA
• In-rush current (peak / duration): 44.6 A / 258 µs
• Max. input power: 106.5 W
• Typ. standby power consumption: < 0.2 W
• Typ. power consumption in no-load operation: < 0.3 W
• Typ. efficiency: 93% (at 230 V, 50 Hz, full load)
• Power factor λ: 0.98 (at 230 V, 50 Hz, full load)
• THD: < 10%
• Starting time (at 230 V, 50 Hz, full load): < 0.6 s
• Starting time (DC mode): < 0.4 s
• Switchover time AC/DC: < 0.2 s
• Turn-off time (at 230 V, 50 Hz, full load): < 0.02 s
• Output voltage tolerance: ± 2 V
• LF voltage ripple (< 120 Hz): ± 5 %
• Max. output voltage (U-OUT): 60 V
• Dimming range: 1 – 100 %
• PWM frequency: approx. 1000 Hz
• Mains surge capability (L-N): 1 kV
• Mains surge capability (L/N-PE): 2 kV

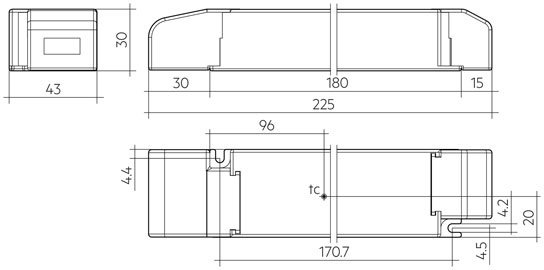

• Dimensions (L x W x H): 225 x 43 x 30 mm
• Protection class: IP20
• Lifetime: up to 100,000 hours
• Guarantee: 5 years (see conditions: Tridonic guarantee conditions)

Important notes

• The driver offers lumDATA for advanced management of luminaire data and energy reporting.
• Suitable for both professional and residential indoor applications.
• Installation only by qualified personnel, according to Tridonic instructions.
• Strain relief always included; in the SP version, each driver is individually packed.
• For correct operation and warranty, always follow the Tridonic installation manual.
