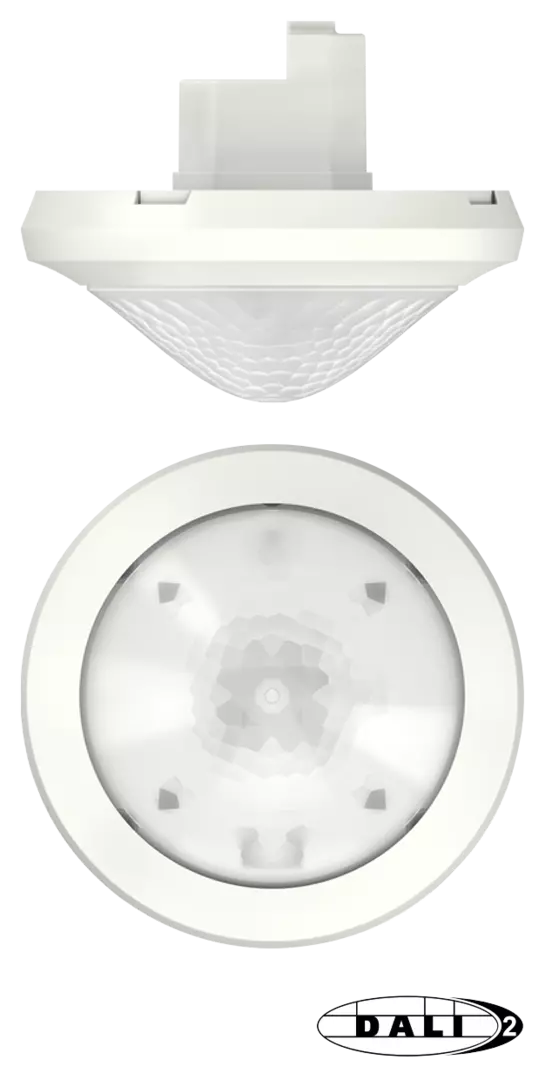

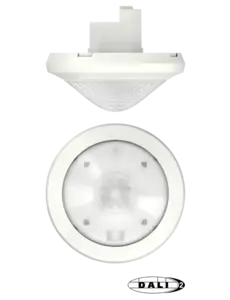

theRonda P360-330 DALI UP WH, 3-channel, 360° (up to Ø24m), white

theRonda P360-330 DALI UP WH – Item No. 2080045

Detailed Product Description

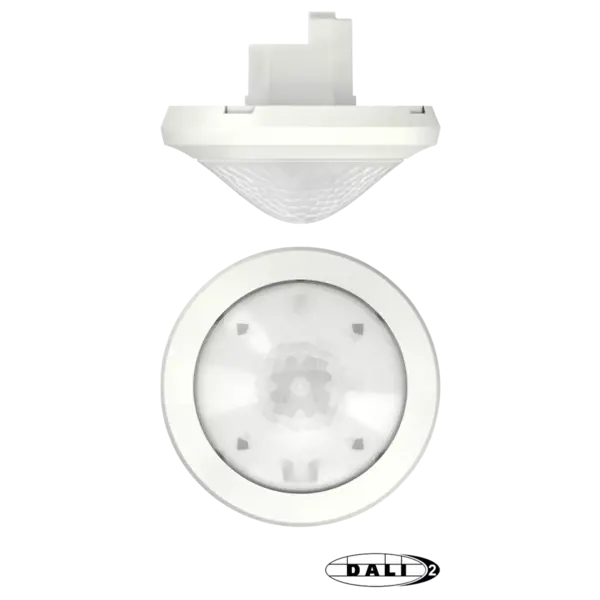

This passive infrared ceiling-mounted presence detector is DALI-2 certified and features an integrated application controller. With a full 360° detection range and a maximum diameter of Ø24 meters, this device is ideal for reliable and efficient presence and motion detection in larger spaces. The detection area can easily be limited using cover clips if required.

The integrated application controller enables the individual addressing of up to three DALI lighting channels and supports advanced automatic lighting control. Features such as constant light control, switching mode, orientation light (standby function), self-learning run-on time, and adjustable sensitivity ensure maximum flexibility and energy savings. Intuitive configuration is possible via button or remote control, with easy setup of DALI groups.

• Detection area: 360° circular, up to Ø24 m (452 m²)
• Maximum number of DALI lighting channels: 3 (individually addressable, DALI-2)
• Application controller: Integrated
• Light measurement type: Mixed light measurement, suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps, and LEDs
• Constant light control: Yes, with or without daylight influence
• Orientation light: Standby function with adjustable brightness (1–25%)
• Light level adjustment range: 10 – 3000 lux
• Run-on time adjustable: 10 s – 60 min, self-learning, reduced for short presence
• Standby time for light: 0 s – 60 min / on
• Operating voltage: 110 V AC – 230 V AC, 50 – 60 Hz
• Own consumption: < 0.4 W
• Mounting height: 2 – 10 m (min. 1.7 m, max. 15 m)

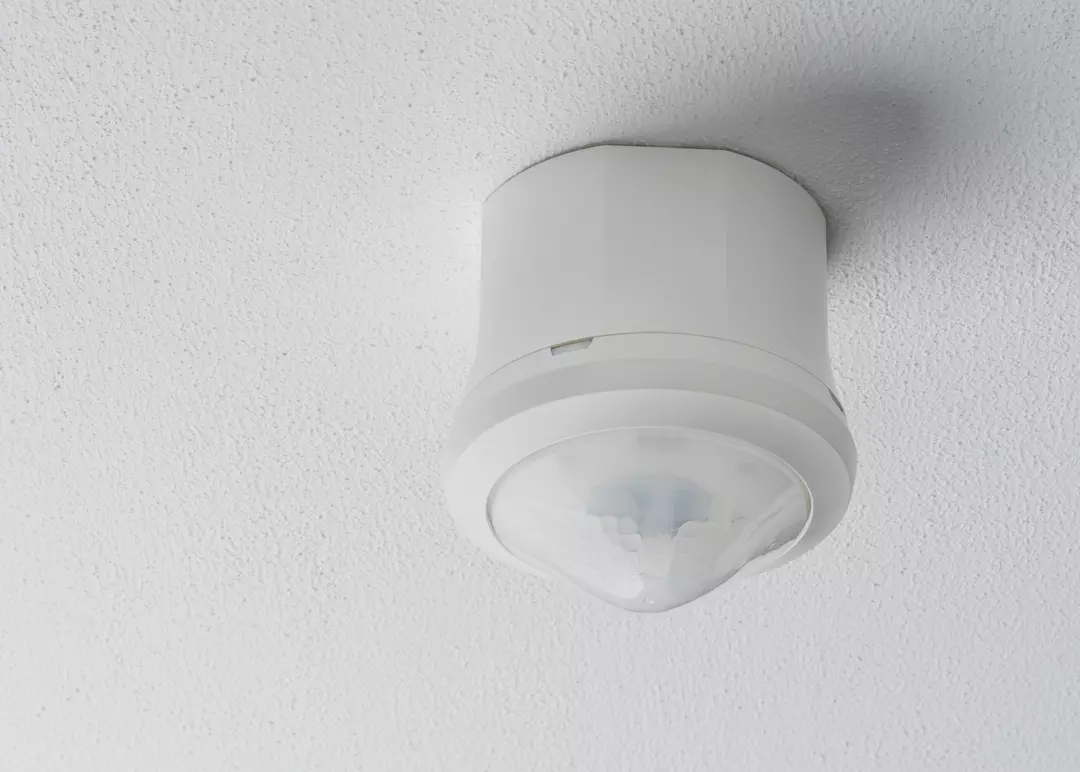

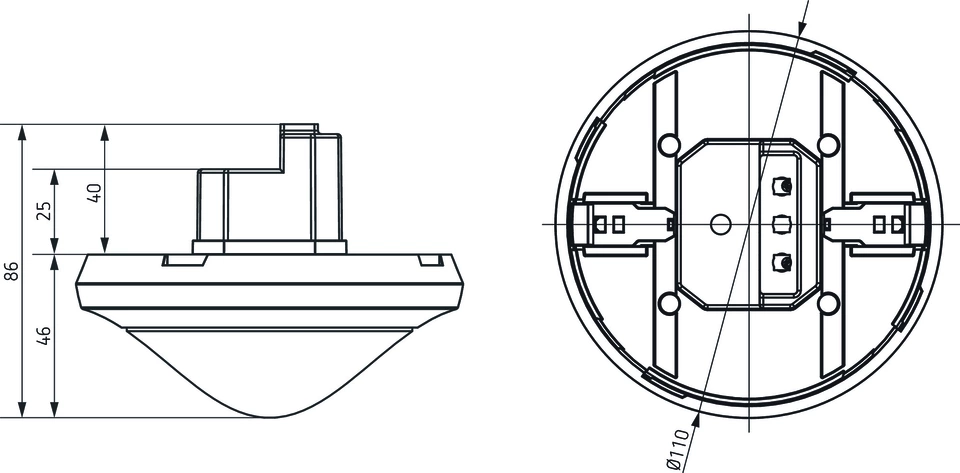

• Mounting type: Ceiling flush mounting (flush box 55 mm), surface mounting possible with optional frame
• Control output: 100 mA
• Light output: DALI interface according to IEC SN EN 62386, max. 50 DALI devices
• Max. cable diameter: 2 x 2.5 mm²
• Color: White
• Protection rating: IP 54 (when installed)
• Ambient temperature: -15°C to +50°C
• Configuration: Intuitive via button or remote control, easy setup of DALI groups
• Scene functions: Yes

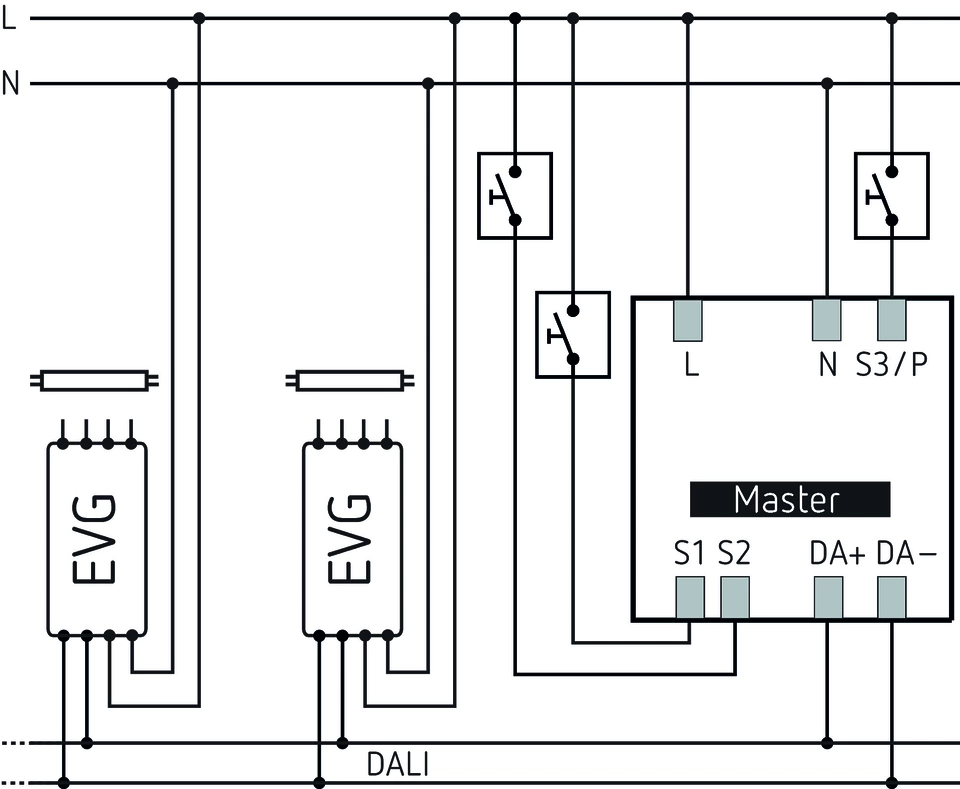

• Connection options: For up to 3 conventional push buttons for manual dimming and switching
• Test mode: Available for function and detection area testing

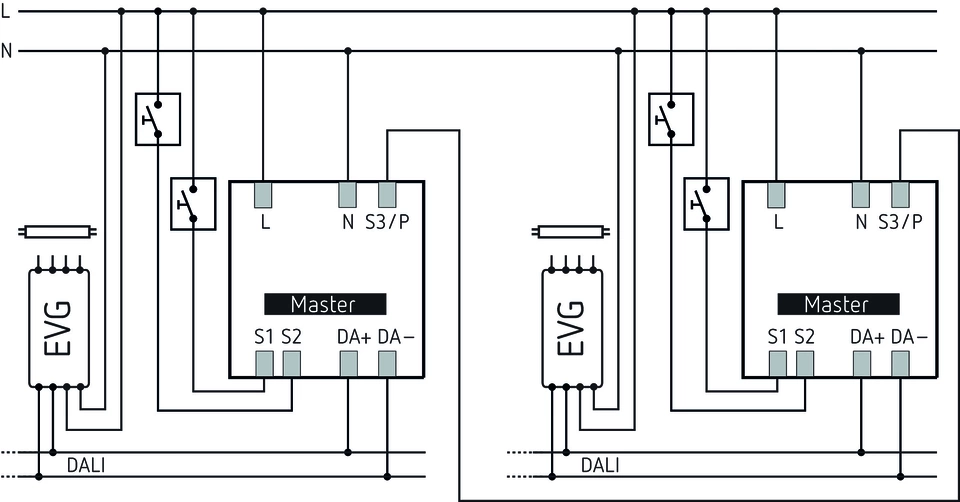

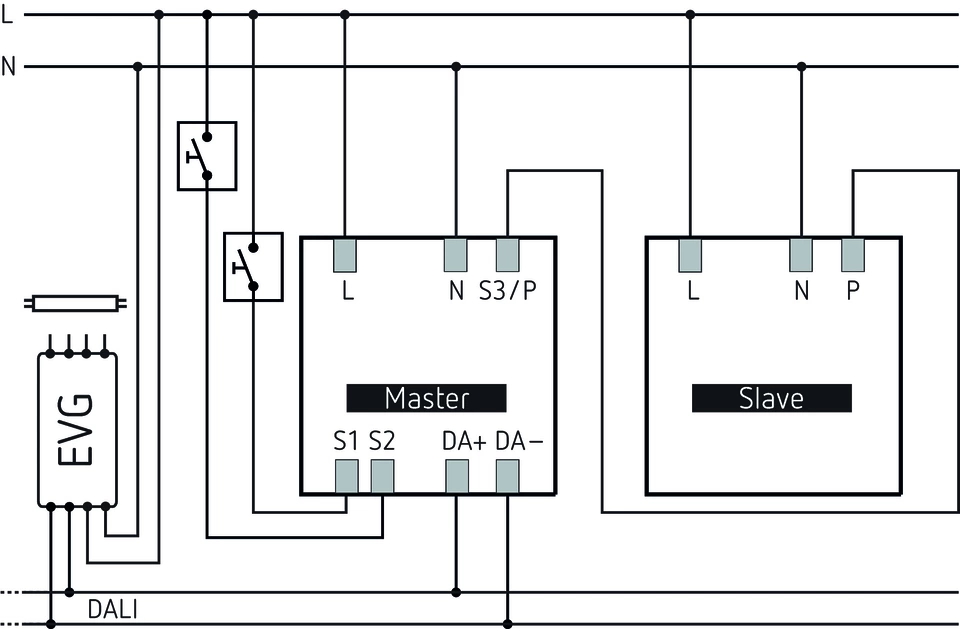

• Expandability: Master/Slave or Master/Master configuration for extended detection area
• Compatible remote controls: Management (SendoPro 868-A), installation (theSenda P), user (theSenda S) – all optional
• Preset: Ready for use ex works
• Energy saving: Energy-saving behavior can be set easily via "eco plus" function
• DALI certification: DALI-2 (according to IEC 62386 Part 101 and 103)

Important Note

This device is intended for indoor use only and must be installed by a qualified electrician. Always check the DALI-2 compatibility of the connected lighting systems to ensure optimal operation.
