LLE FLEX 8mm 24V 3W 300lm 8XX SNC4 R05

LLE FLEX 8 mm 24 V 3 W 300 lm

Supplied in 5 m rolls

Power: approx. 2.3 W per meter

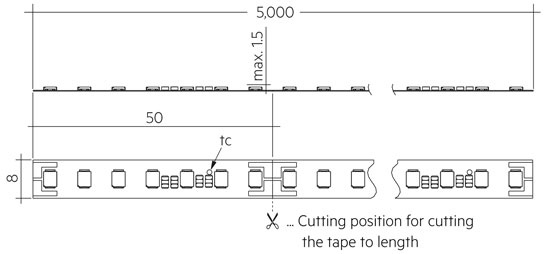

High design freedom: 5 cm cut options and 140 LED light points per meter

Variant overview (SNC4 R05)

All items below are technically identical (8 mm, 24 V DC, 3 W, 300 lm, SNC4 R05). The only difference is the color temperature (CCT).

CCT legend: 827 = 2700 K · 830 = 3000 K · 840 = 4000 K · 865 = 6500 K.

Product description

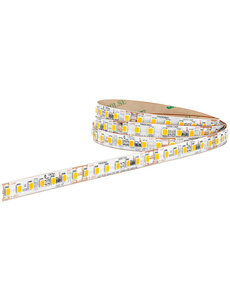

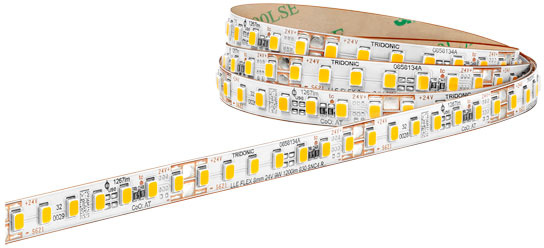

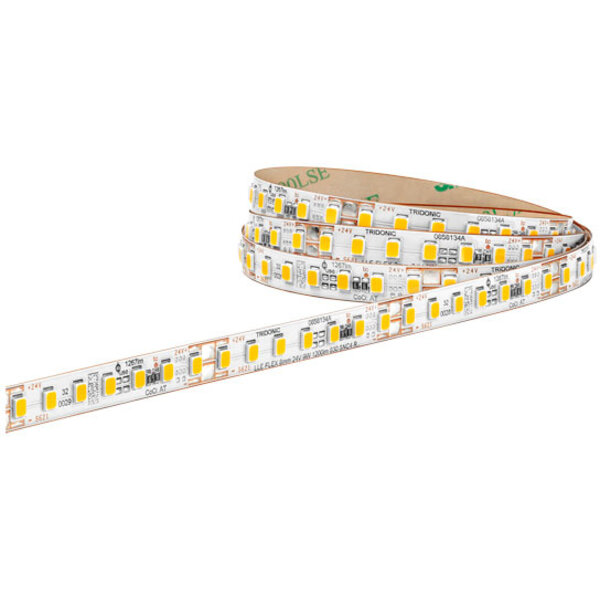

The LLE FLEX is a slim, flexible 8 mm LED strip for clean, uniform light lines in coves, furniture, displays and accents. Each variant operates on 24 V DC (constant voltage) and delivers 3 W with approx. 300 lm (≈ 100 lm/W). Available as 827 / 830 / 840 / 865 (2700 K, 3000 K, 4000 K, 6500 K) in the SNC4 R05 series.

Main features

• Narrow 8 mm design for discreet integration.
• 24 V DC constant-voltage for long, stable light lines.
• 3 W power with approx. 300 lm luminous flux.
• Homogeneous, clean light line (with suitable profile/diffuser).
• Four CCT options: 2700K / 3000K / 4000K / 6500K (827/830/840/865).
• Part of the SNC4 R05 series.
• Wide range of uses: cove, furniture, showcase, retail and accent lighting.

Typical applications

• Indirect cove lighting and wall/ceiling accents.
• Furniture and display cabinets, shelves and showcases.
• Corridors, receptions, hospitality and public areas.
• Functional light lines with neutral or cool white (840/865).

Technical data

Supply voltage

24 V DC (constant voltage)

Power

3 W

Luminous flux

approx. 300 lm

Luminous efficacy

≈ 100 lm/W (indicative from 300 lm / 3 W)

Color temperatures (CCT)

2700 K (827) · 3000 K (830) · 4000 K (840) · 6500 K (865)

Design

Flexible LED module, width 8 mm

Series

SNC4 R05

Control

24 V constant voltage; dimmable with suitable CV driver (e.g. PWM, 0/1–10 V, DALI-CV)*

Light distribution

Linear and uniform (depending on LED pitch and diffuser)

Variants (CCT)

• 827 — 2700 K: extra warm white, atmospheric light.
• 830 — 3000 K: warm white, modern residential/retail.
• 840 — 4000 K: neutral white, fresh working light.
• 865 — 6500 K: cool white/daylight, bright and functional.

Important notes

• Use only 24 V DC constant-voltage power supplies with sufficient power reserve.
• Observe polarity when connecting; never connect directly to 230 V.
• For thermal stability and uniform lighting: mount preferably in an aluminium profile with diffuser.
• Consider voltage drop for longer lengths; feed from both ends or provide mid-feed points if necessary.
• Dimming only via a suitable 24 V CV driver; check protocol and driver compatibility.
• Install and test according to applicable standards; professional installation recommended.

* Dimmability and performance depend on the selected 24 V driver and dimming interface.
