DALI-2 CS Integration, Instance mode, PIR 10x30m/Light sensor

Information

Datasheet

DALI-2 CS Integration, Instance mode, PIR 10x30m / Light

Application

Compact DALI-2 sensor with motion detection (PIR, 10x30 m at a mounting height of 15 m) and light measurement. Designed for use in instance mode with central DALI-2 control units like DALI-2 CS Master, WAGO, Beckhoff, and similar systems. Ideal for building management systems where sensor data is processed centrally. The measured values can be queried or automatically trigger events via DALI-2 instances. Multiple sensors within one group synchronize automatically. The device is powered directly via the DALI bus, with no additional power supply required.

Functions

• Motion detection via passive infrared (PIR) with detection range 10x30 m at 15 m mounting height
• Light measurement from 0 to 2047 lux
• Instance mode for integration with central DALI-2 control units
• Automatic synchronization of multiple sensors in one group
• Constant light control via a central controller
• Adjustable sensor head with swivel and tilt for easy alignment

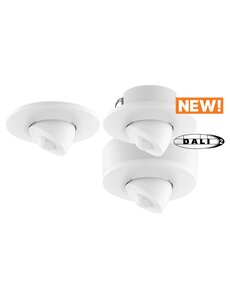

• Available in three housing versions: standard (flush-mounted), ceiling (with spring), and surface-mounted (with backbox)
• Color options: white RAL9010, traffic white RAL9016, and black
• Configuration via DALI Cockpit software
• Power supply via DALI bus (no external power needed)

Product variants

• 1 / 86458670-INT-30 – DALI-2 CS Integration, Instance mode, PIR 10x30m/Light, white RAL9010
• 2 / 86458670-INT-30-AP – DALI-2 CS Integration, Instance mode, PIR 10x30m/Light, white RAL9010, surface-mounted
• 3 / 86458670-INT-30-ZD – DALI-2 CS Integration, Instance mode, PIR 10x30m/Light, white RAL9010, ceiling mount
• 4 / 86458670-INT-30-W16 – DALI-2 CS Integration, Instance mode, PIR 10x30m/Light, traffic white RAL9016
• 5 / 86458670-INT-30-W16-AP – DALI-2 CS Integration, Instance mode, PIR 10x30m/Light, traffic white RAL9016, surface-mounted
• 6 / 86458670-INT-30-W16-ZD – DALI-2 CS Integration, Instance mode, PIR 10x30m/Light, traffic white RAL9016, ceiling mount
• 7 / 86458670-INT-30-B – DALI-2 CS Integration, Instance mode, PIR 10x30m/Light, black
• 8 / 86458670-INT-30-B-AP – DALI-2 CS Integration, Instance mode, PIR 10x30m/Light, black, surface-mounted
• 9 / 86458670-INT-30-B-ZD – DALI-2 CS Integration, Instance mode, PIR 10x30m/Light, black, ceiling mount

Technical data

General

• Power supply: via DALI bus
• Current consumption: approx. 3.5 mA
• Protection class: IP20
• Connection terminals: max. 1.5 mm² (solid or stranded)

Motion sensor (PIR)

• Detection principle: passive infrared (PIR)
• Detection range: 10x30 meters (at 15 m mounting height)
• Mounting height: up to 15 meters
• Detection angle horizontal: ±43°
• Detection angle vertical: ±22°
• Detection zones: 188 zones
• Minimum temperature difference target/environment: > 2–4 °C

Light sensor

• Measurement range: 0–2047 lux (11-bit), resolution 1 lux
• Event resolution: 0–2047 lux (10-bit), resolution 2 lux

Dimensions

• Standard (flush-mounted): 98 × 98 × 18 mm (max. 42 mm including sensor head)
• Surface-mounted (-AP): 98 × 98 × 18 mm + mounting box 98 × 98 × 32 mm
• Ceiling mount (-ZD): 98 × 98 × 18 mm + spring holder 98 × 98 × 32 mm

Ambient temperature

• Standard and ceiling: -20 °C to +60 °C
• Surface-mounted: -15 °C to +55 °C

Color variants

• White RAL9010
• Traffic white RAL9016 (-W16)
• Black (-B)

Important notes

The sensor operates exclusively in instance mode with a central DALI-2 controller. Standalone operation is not possible, unlike the DALI-2 CS Master. Instance communication is configured via the DALI Cockpit software. On delivery, all instance events are activated by default. The device is powered entirely via the DALI bus with no need for an external power supply.
