DALI-2 CS Integration – Instance mode, PIR wide angle for corridors/light

The DALI-2 CS Integration is a compact sensor module with PIR motion detection and light measurement, specifically designed for integration in DALI-2 systems with central control units such as DALI-2 CS Master, WAGO or Beckhoff. In instance mode, the sensor delivers measured values to the building management system; these values can be queried or automatically trigger events via DALI-2 instances.

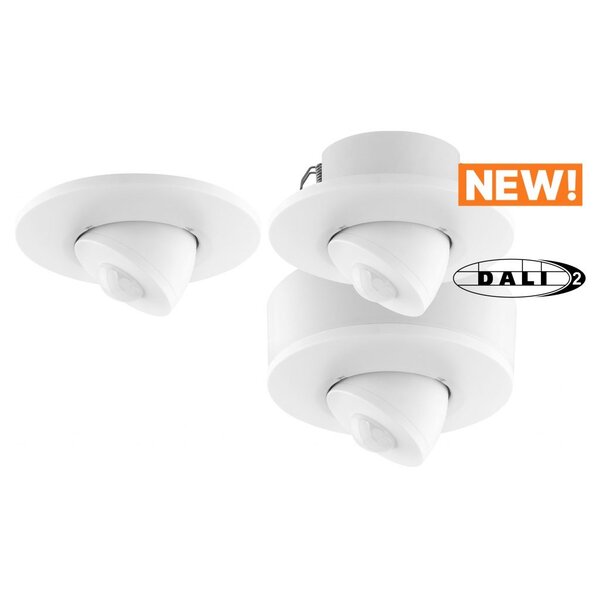

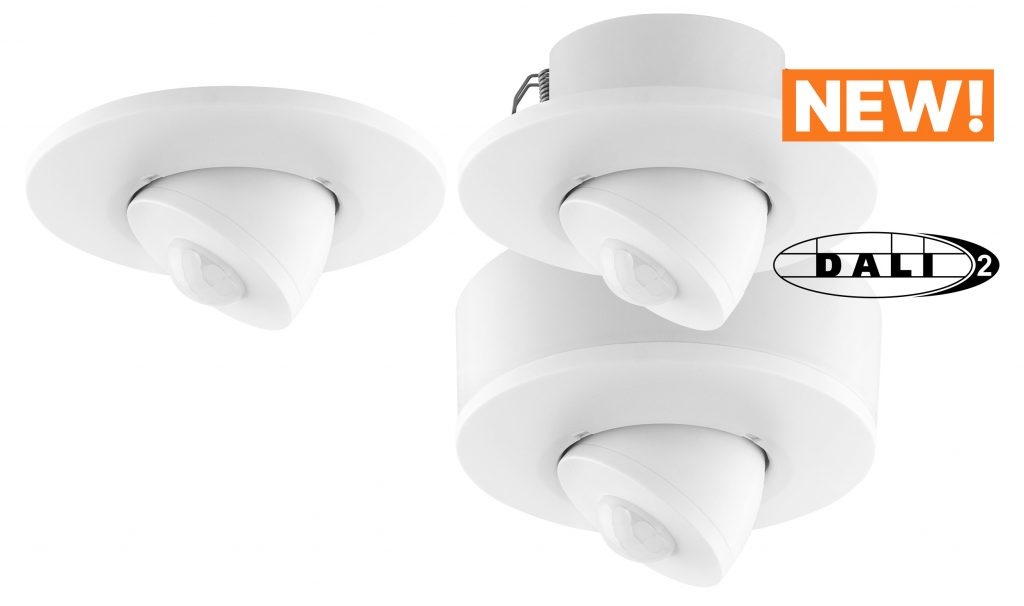

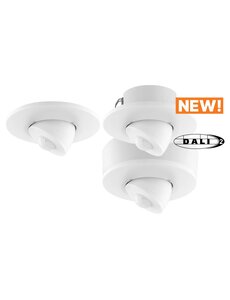

Available variants

• 1 / 86458670-INT-C – DALI-2 CS Integration, instance mode, PIR wide angle for corridors/light, white RAL9010

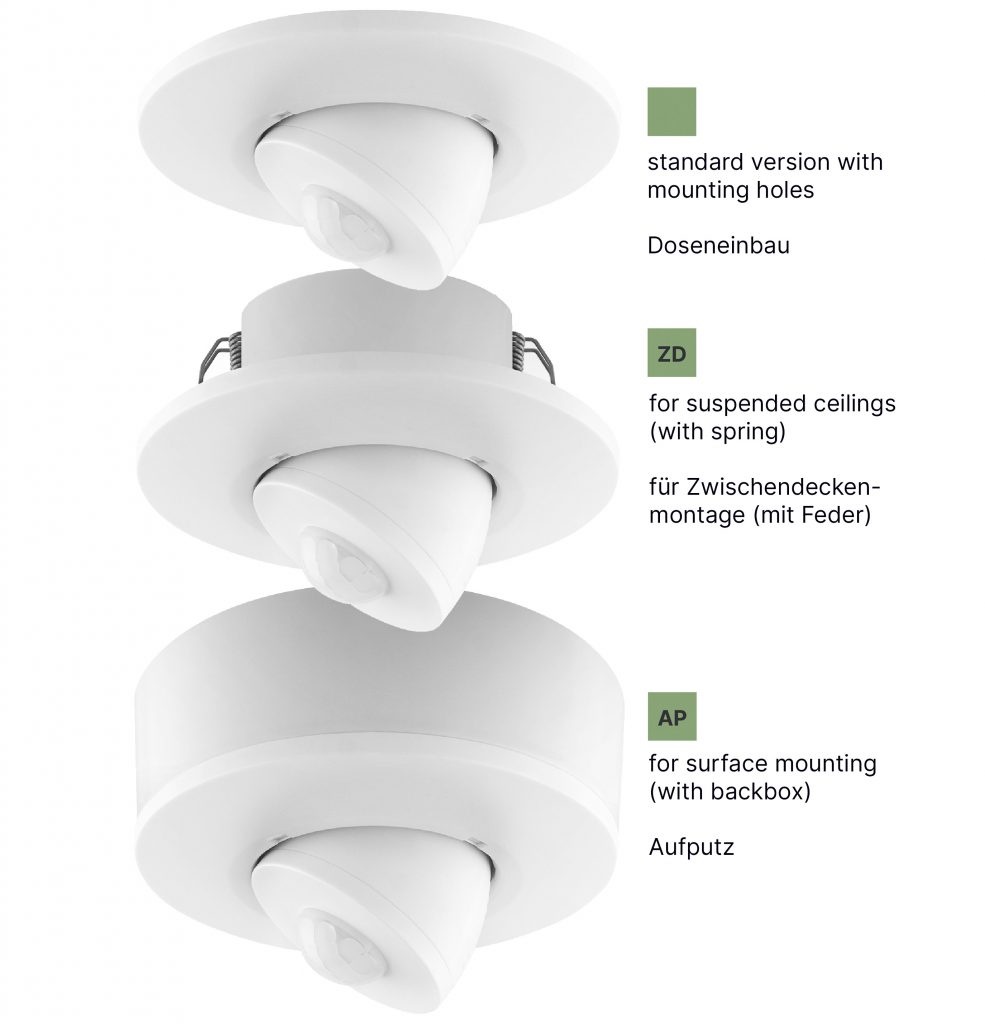

• 2 / 86458670-INT-C-AP – DALI-2 CS Integration, instance mode, PIR wide angle for corridors/light, white RAL9010, surface
• 3 / 86458670-INT-C-ZD – DALI-2 CS Integration, instance mode, PIR wide angle for corridors/light, white RAL9010, ceiling
• 4 / 86458670-INT-C-W16 – DALI-2 CS Integration, instance mode, PIR wide angle for corridors/light, traffic white RAL9016
• 5 / 86458670-INT-C-W16-AP – DALI-2 CS Integration, instance mode, PIR wide angle for corridors/light, traffic white RAL9016, surface
• 6 / 86458670-INT-C-W16-ZD – DALI-2 CS Integration, instance mode, PIR wide angle for corridors/light, traffic white RAL9016, ceiling

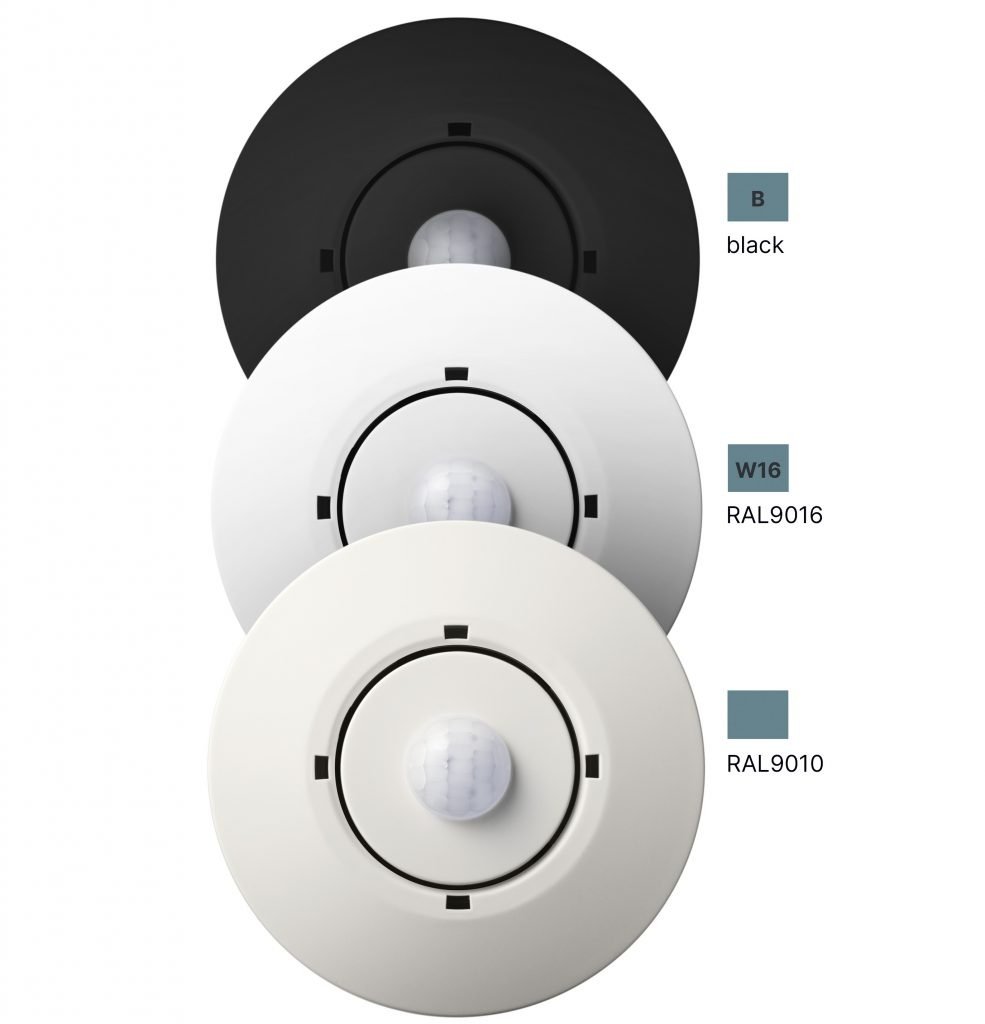

• 7 / 86458670-INT-C-B – DALI-2 CS Integration, instance mode, PIR wide angle for corridors/light, black
• 8 / 86458670-INT-C-B-AP – DALI-2 CS Integration, instance mode, PIR wide angle for corridors/light, black, surface
• 9 / 86458670-INT-C-B-ZD – DALI-2 CS Integration, instance mode, PIR wide angle for corridors/light, black, ceiling

Main features

• PIR motion detection with wide-angle lens, optimised for use in corridors and hallways
• Light measurement for constant lighting control
• Instance mode: measured values are communicated to central systems via DALI-2 instances
• Automatic synchronisation of multiple sensors within one group
• Easy configuration via DALI Cockpit software
• Powered directly via the DALI bus (no additional power supply required)

Technical data

• Power supply: DALI bus (max. 3.5 mA current consumption)

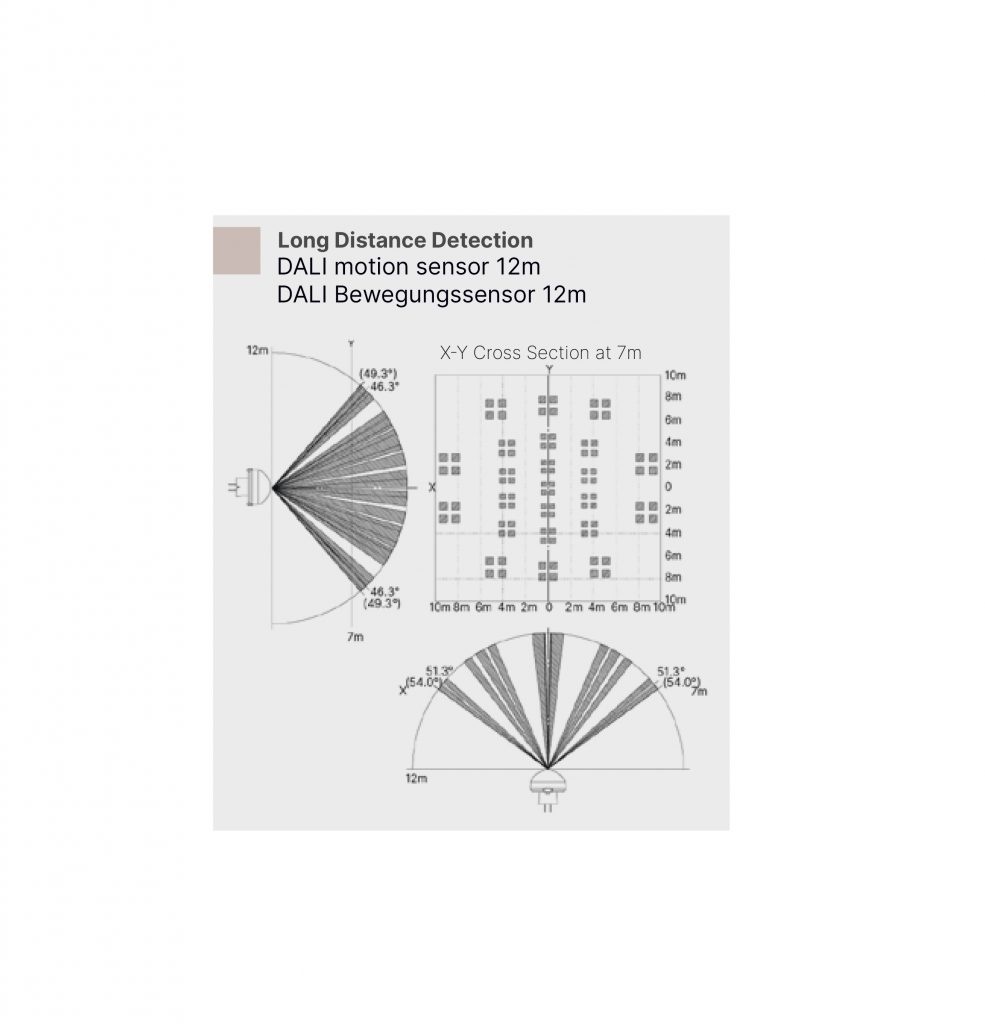

• Motion detection (PIR):
  • Detection range: max. 5 m (depending on model)
  • Detection angles: horizontal ±75°, vertical +10°/-25°
  • Zones: 88 + 16
  • Temperature difference target/environment: > 4°C
  • Principle: passive infrared (PIR)
• Light sensor:
  • Measurement range: 0–2047 lux (11-bit resolution, 1 lux)
  • Event resolution: 0–2047 lux (10-bit, 2 lux)
• Operating temperature: -20°C to +60°C
• Protection class: IP20
• Connection wire: max. 1.5 mm²
• Dimensions (standard): 98 x 98 x 18 (max. 42) mm
• Dimensions (ceiling/surface): extra mounting box or spring, additional 98 x 98 x 32 mm
• Housing colour: RAL9010 (pure white), RAL9016 (traffic white), black

Important notes

• The DALI-2 CS Integration is intended exclusively for integration in systems with central control units; the sensor operates in instance mode and is not intended for standalone light control.
• All instance events are active by default on delivery. Use with a DALI-2 CS is possible without further configuration by assigning the devices in the DALI Cockpit software.
• Synchronisation of sensors within one group takes place automatically.
• Installation must be carried out by qualified personnel in accordance with applicable safety regulations.
