LLE FLEX 8mm 24V 19W 2500lm 8xx SNC4 R05

Information

Link to Tridonic website

LLE FLEX 8 mm 24 V 19 W/m 2,500 lm/m

Supplied per 5 m reel

Power: approx. 19 W per metre (± 95 W per reel)

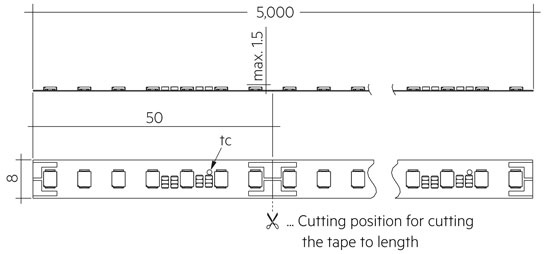

High design freedom: cuttable every 5 cm with 140 LED light points per metre

Variant overview (SNC4 R05)

All articles listed below are technically identical (8 mm, 24 V DC, 19 W/m, approx. 2,500 lm/m, SNC4 R05). The only difference is the colour temperature (CCT).

CCT legend: 827 = 2700 K · 830 = 3000 K · 840 = 4000 K · 865 = 6500 K

Product description

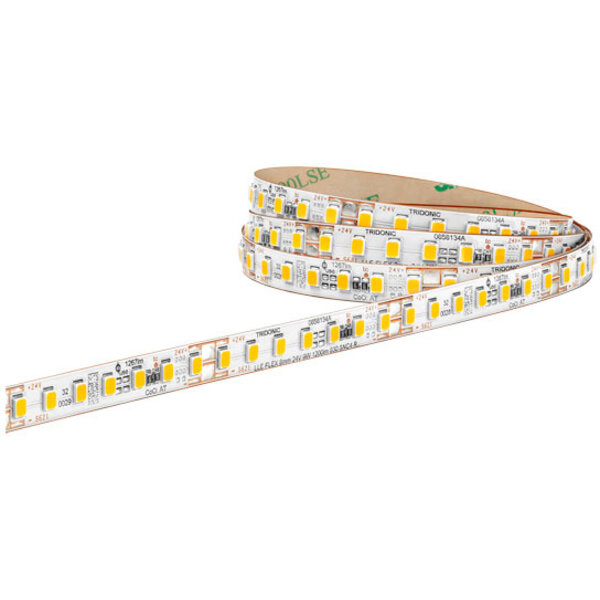

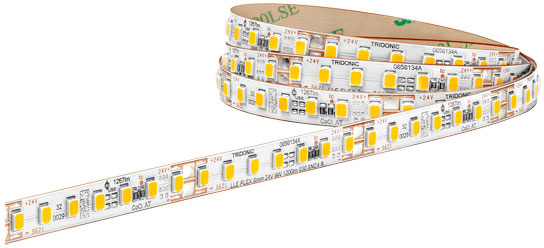

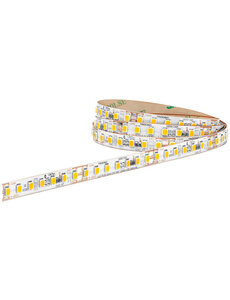

The LLE FLEX is a slim, flexible 8 mm LED strip designed for clean, uniform light lines in coves, furniture, displays and accent lighting. Operates on 24 V DC (constant voltage, SELV) and delivers approx. 19 W/m with approx. 2,500 lm/m (up to 2,694 lm/m at tp = 25 °C). The SNC4 R05 series is available in 2700 K, 3000 K, 4000 K and 6500 K.

Main features

• Slim 8 mm design for discrete integration.
• 24 V DC constant voltage for stable, long light lines.
• 19 W per metre with approx. 2,500 lm/m (up to 2,694 lm/m @ tp = 25 °C).
• Cuttable every 5 cm; 140 LEDs per metre for uniform illumination.
• Colour temperatures: 2700 K / 3000 K / 4000 K / 6500 K.
• Long service life: 60,000 h (L80/B10 at tp = 25 °C).
• CRI > 80 (options with CRI > 90), MacAdam 3.
• Self-adhesive 3M tape on the back for quick mounting.
• reel2reel: minimal solder joints, low length tolerances.
• Made in Europe. 5-year guarantee.

Typical applications

• Indirect cove lighting and wall/ceiling accents.
• Furniture, showcases, shelves and displays.
• Retail, hospitality and reception areas.
• Functional light lines (neutral/cool white) for workspaces.

Technical data

Supply voltage

24 V DC (constant voltage, SELV)

Power

approx. 19 W per metre (± 95 W per 5 m reel)

Luminous flux

approx. 2,500 lm/m (up to 2,694 lm/m at tp = 25 °C)

Module efficacy

up to approx. 159 lm/W (@ tp = 25 °C)

Colour temperatures

2700 K · 3000 K · 4000 K · 6500 K

Colour rendering

CRI > 80 (variants with CRI > 90 available)

Colour consistency

MacAdam 3 (low colour deviation)

Design

Flexible LED module, width 8 mm; 140 LED/m; cuttable every 5 cm

Mechanics & mounting

3M adhesive tape on the back; PCB-to-PCB and wire-to-PCB connectors available (tool-free)

Dimming / control

Dimmable via suitable 24 V CV driver (e.g. PWM, 0/1–10 V, DALI-CV)*

Lifetime

60,000 h (L80/B10 at tp = 25 °C)

Reel design

reel2reel; no solder joints on the tape; easy separation (max. 2 solder joints per 5 m reel)

System solution

Combine with Tridonic 24 V constant voltage LED drivers (fixed output or dimmable)

EAN

9006210835624

Country of origin

AT (Austria)

Customs tariff number

85395100

Important notes

• Use only with 24 V DC constant voltage power supplies with sufficient power reserve.
• Observe polarity; never connect directly to 230 V.
• For thermal stability and uniform light: preferably mount in an aluminium profile with diffuser.
• Consider voltage drop for longer lengths; feed from both ends or use intermediate feed points if necessary.
• Install according to standards; mounting by a qualified electrician is recommended.

* Dimming behaviour depends on the used 24 V driver and control interface.
