LLE FLEX 8mm 24V 13W 1800lm 8xx SNC4 R05

LLE FLEX 8 mm 24 V 13 W/m 1,800 lm/m

Delivery per reel: 5 meters

Power: approx. 13 W per meter (≈ 65 W per reel)

High design freedom: cut every 5 cm and 140 LED light points per meter

Variant overview (SNC4 R05)

All variants below are technically identical (8 mm, 24 V DC, 13 W/m, 1,800 lm/m, SNC4 R05). The only difference is the colour temperature (CCT).

CCT legend: 827 = 2700 K · 830 = 3000 K · 840 = 4000 K · 865 = 6500 K

Product description

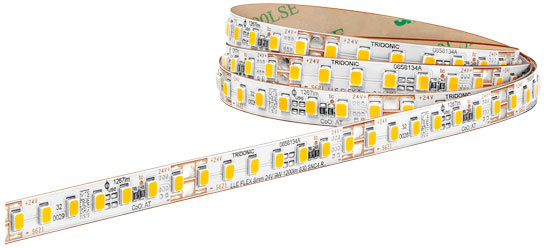

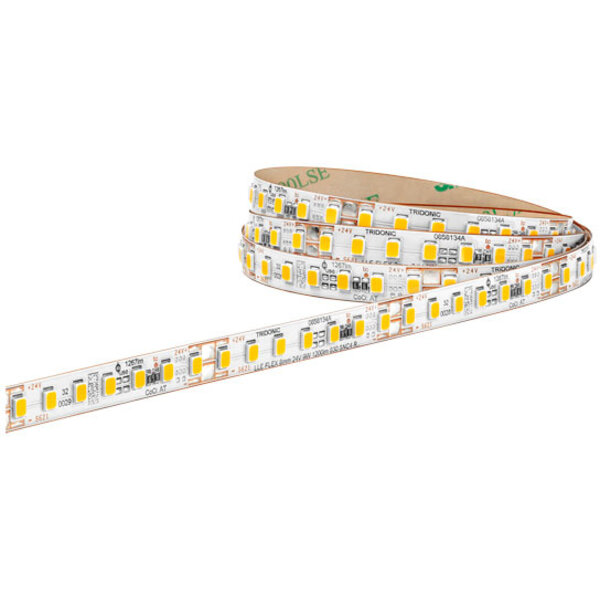

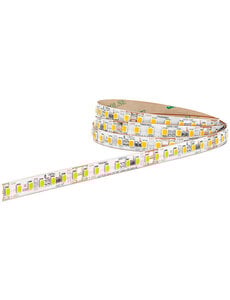

The LLE FLEX is a slim, flexible 8 mm LED strip designed for continuous, uniform light lines in coves, furniture, displays, and accent lighting. Operates on 24 V DC constant voltage with approx. 13 W/m and 1,800 lm/m (≈ 138 lm/W). Available in 827/830/840/865 within the SNC4 R05 series.

Main features

• Compact 8 mm width for discreet integration.
• 24 V DC constant voltage ensures long, stable light lines.
• 13 W/m with approx. 1,800 lm/m.
• Cuttable every 5 cm; 140 LEDs/m for smooth, uniform light.
• Four colour temperatures: 2700 K / 3000 K / 4000 K / 6500 K.
• Long lifetime: 60,000 h (L80/B10 at tp = 25 °C).
• CRI > 80 (options with CRI > 90), MacAdam 3 colour consistency.
• Rear side with 3M adhesive tape for simple mounting.

Typical applications

• Indirect cove and wall/ceiling lighting.
• Furniture, showcases, shelves, and displays.
• Retail, hospitality, reception areas.
• Functional light lines with neutral/cool white (840/865).

Technical specifications

Operating voltage

24 V DC (constant voltage, SELV)

Power

approx. 13 W/m (≈ 65 W per reel)

Luminous flux

approx. 1,800 lm/m

Luminous efficacy

≈ 138 lm/W (calculated from 1,800 lm / 13 W)

Colour temperatures

2700 K · 3000 K · 4000 K · 6500 K

Design

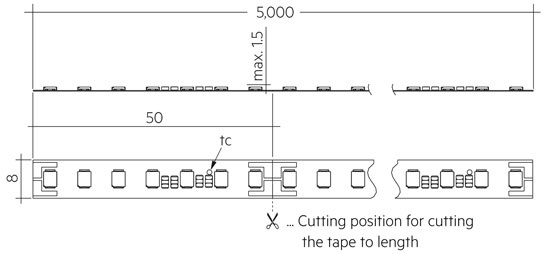

Flexible LED module, width 8 mm; 140 LEDs/m; cuttable every 5 cm

Series

SNC4 R05

Control

Dimmable with suitable 24 V CV drivers (PWM, 0/1–10 V, DALI-CV)*

Light output

Linear and uniform (depending on LED spacing and diffuser)

Lifespan

60,000 h (L80/B10 at tp = 25 °C)

Important notes

• Use only with 24 V DC constant voltage drivers with sufficient power reserve.
• Check polarity before connection; never connect directly to 230 V.
• For thermal stability and uniform light, install in an aluminium profile with diffuser.
• Consider voltage drop over long runs; feed from both ends or via mid-points if needed.
• Dimming only possible with a compatible 24 V CV driver; check dim protocol compatibility.
• Installation and testing must follow standards; professional installation is recommended.

* Dimming performance depends on the used 24 V driver and dimming interface.
