LLE FLEX 8mm 24V 22W 2500lm 930 - 940 SNC4 R05

Information

Link to Tridonic website

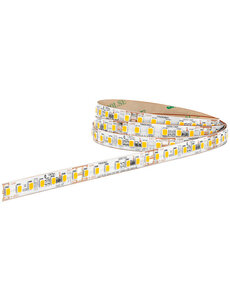

LLE FLEX 8 mm 24 V 22 W/m 2,500 lm/m

Available as 930 (3000 K warm white, CRI > 90) and 940 (4000 K neutral white, CRI > 90). Excellent color rendering, ideal for accent lighting, exhibitions and museums.

Supplied in 5 m reels

Power: approx. 22 W per meter (± 110 W per reel)

Luminous flux: approx. 2,500 lm per meter, uniform light output with 140 LED points per meter.

Variant overview (SNC4 R05)

Product description

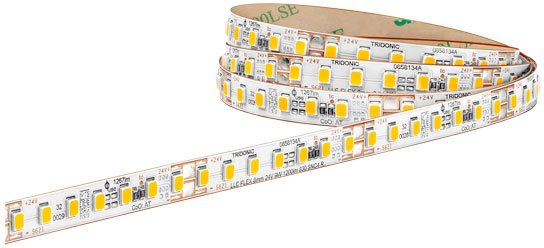

The LLE FLEX is a flexible and slim 8 mm LED strip designed for clean and uniform light lines in ceilings, coves and furniture. Operating with 24 V DC constant voltage (SELV), it delivers approx. 22 W/m and a luminous flux of 2,500 lm/m. The 930 (3000 K) and 940 (4000 K) variants with CRI > 90 are ideal for high-quality lighting applications.

Main features

• Compact 8 mm width for discreet integration.
• 24 V DC constant voltage ensures stable and reliable light lines.
• 22 W per meter with approx. 2,500 lm/m luminous flux.
• Cuttable every 5 cm, 140 LEDs/m for homogeneous light without dark spots.
• Excellent color rendering: CRI > 90, low color deviation (MacAdam 3).
• 3M adhesive tape on the back for quick and easy installation.
• Long lifetime: 60,000 h (L80/B10 at tp = 25 °C).
• Made in Europe, with 5-year guarantee (according to Tridonic conditions).

Typical applications

• Indirect ceiling and cove lighting.
• Museums, galleries and exhibitions requiring excellent color rendering.
• Accent and design lighting in interiors.
• Integration into furniture, showcases and displays.
• Functional lighting for offices, retail and hospitality.

Technical data

Supply voltage

24 V DC (constant voltage, SELV)

Power

approx. 22 W per meter (± 110 W per reel)

Luminous flux

approx. 2,500 lm per meter

Efficacy

≈ 114 lm/W

Color temperatures

3000 K (930) · 4000 K (940)

Color rendering

CRI > 90, MacAdam 3

Design

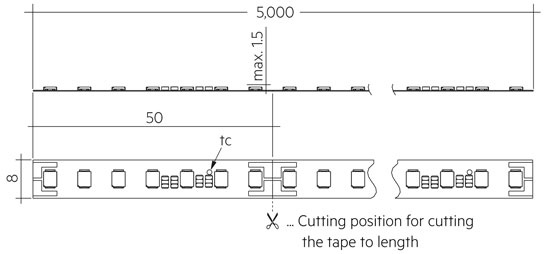

Flexible LED module, 8 mm width, 140 LEDs/m, cuttable every 5 cm

Series

SNC4 R05

Control

Dimmable via suitable 24 V CV driver (PWM, 0/1–10 V, DALI-CV)*

Lifetime

60,000 h (L80/B10 at tp = 25 °C)

Important notes

• Use only with 24 V DC constant voltage drivers with sufficient power reserve.
• Cuttable every 5 cm at the marked positions.
• Observe polarity; never connect directly to 230 V.
• For thermal stability and uniform light: installation in an aluminium profile with diffuser is recommended.
• Consider voltage drop for long lengths; supply from both ends or intermediate points if necessary.
• Installation only by a qualified electrician.

* Dimming behaviour and performance depend on the driver and interface used.
