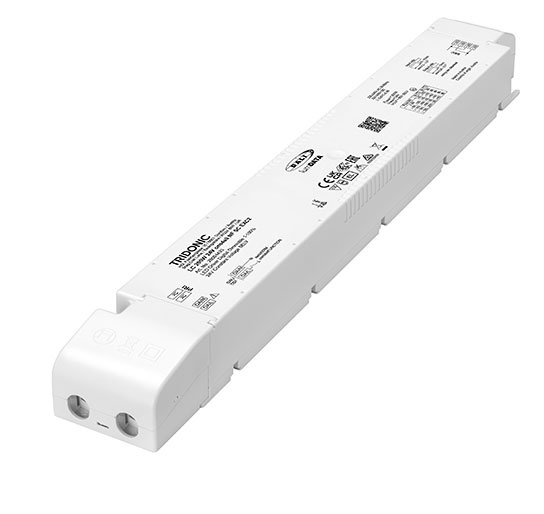

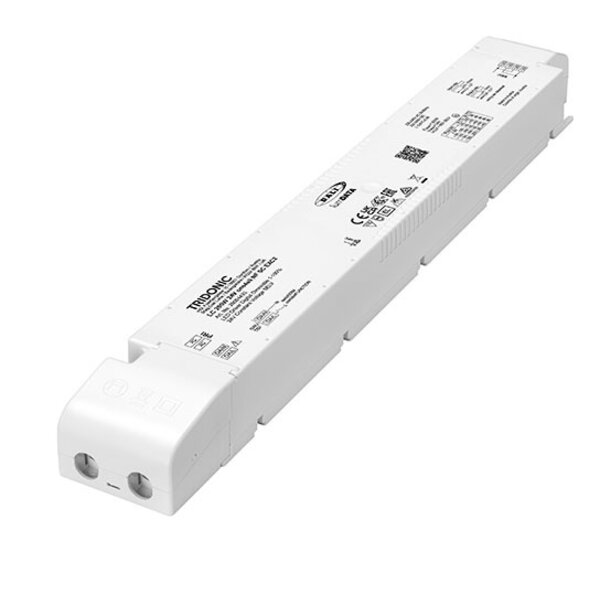

LED Driver – LC 200W 24V one4all NF SC EXC2

Product description Art. No.: 28004433

The Tridonic LC 200W 24V one4all NF SC EXC2 is a compact, professional and dimmable constant voltage (CV) LED driver, designed for driving flexible 24V LED strips. The one4all interface supports multiple dimming technologies including DALI-2 (DT6), DSI, switchDIM and corridorFUNCTION. In addition, the driver is NFC programmable and compatible with lumDATA (DALI-2 extensions 251, 252 and 253) for luminaire data, energy reporting, diagnostics and maintenance.

The driver can be used for both built-in and independent applications and comes with a clip-on strain relief (included in all packaging variants; in SP packaging each driver is individually packed). It is suitable for emergency lighting systems according to EN 50172 and has a nominal lifetime of up to 50,000 hours with a 5-year guarantee.

Important note

Protection class IP20. The driver must be installed freely (without covering) to ensure sufficient cooling. Always follow the installation guidelines in the datasheet for safe and optimal operation.

Technical specifications

Article number

28004433

EAN

9006210797458

Output (LED)

24 V DC constant voltage (CV), max. 200 W, dimming range 1–100%

Interfaces / dimming

one4all: DALI-2 (DT6), DSI, switchDIM, corridorFUNCTION — no additional external dimmer required

Programming

NFC programmable; lumDATA (DALI-2 ext. 251–253) for data/energy/diagnostics

Mechanical data

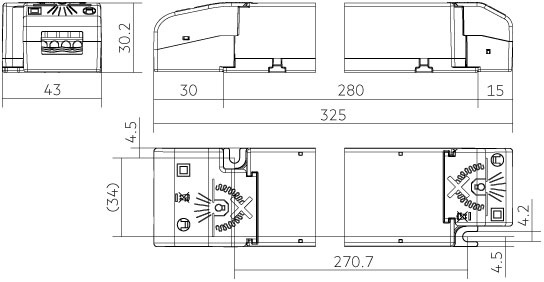

Compact housing, 325 × 43 × 30 mm (L × W × H); slim and narrow design

Terminals

Input: 45° push terminals — Output: 0° push terminals; double output terminals (+/–) for flexible wiring

Strain relief

Clip-on strain relief included (all packaging variants)

Functions

LTI (Lifetime Indicator) for lifetime monitoring

Lifetime / warranty

Nominal up to 50,000 hours; 5-year warranty (Tridonic terms apply)

Protection / safety class

IP20, SELV, Class II

Origin

Made in Austria

Customs tariff number

85044095

SCIP number

0c924a91-efb7-4dfe-b7a0-fd735407478a

System solution

• Optimized for Tridonic LLE-FLEX ADV 600 / 1,200 / 1,800 lm/m
• Optimized for Tridonic LLE-FLEX EXC 600 / 1,200 / 1,800 / 2,500 lm/m
• Compatible with Flex accessories (wire-to-PCB plug)
• Note: test third-party light sources at low dimming levels to ensure proper dimming performance

Typical applications

• Cove lighting / indirect ceiling lighting
• Facade and accent lighting
• Integration into ceilings and walls
• Emergency lighting according to EN 50172
