LLE FLEX 8mm 24V 6W 600lm 930 - 940 SNC4 R05

Information

Link to Tridonic website

LLE FLEX 8 mm 24 V 6 W/m 600 lm/m

Available as 930 (3000 K warm white, CRI > 90) and 940 (4000 K neutral white, CRI > 90). Excellent colour rendering for premium applications such as retail, design and museums.

Supplied on 5 m reel

Power: approx. 6 W per metre (± 30 W per reel)

High light quality: 140 LED light points per metre, cuttable every 5 cm, CRI > 90 for natural colour rendering

Variant overview (SNC4 R05)

All articles below are technically identical (8 mm, 24 V DC, 6 W/m, 600 lm/m, SNC4 R05). The only difference is the colour temperature (CCT).

CCT legend: 930 = CRI > 90, 3000 K · 940 = CRI > 90, 4000 K

Product description

The LLE FLEX is a slim, flexible 8 mm LED strip with high-quality light and very high colour rendering (CRI > 90). With 24 V DC constant voltage, the strip operates stably and efficiently at approx. 6 W per metre and 600 lm per metre. With 140 LEDs per metre and cuttable every 5 cm, this series is ideal for accent, furniture, design and museum lighting. Available as 930 (3000 K warm white) and 940 (4000 K neutral white).

Main features

• Slender 8 mm form factor for discreet integration.
• 24 V DC constant voltage for stable light lines.
• 6 W per metre with approx. 600 lm per metre.
• 140 LEDs per metre for homogeneous light output, cuttable every 5 cm.
• High colour rendering: CRI > 90, MacAdam 3.
• Available in 3000 K (930) warm white and 4000 K (940) neutral white.
• Long lifetime: 60,000 h (L80/B10 at tp = 25 °C).
• Self-adhesive 3M tape on the back for easy mounting.

Typical applications

• Accent lighting in retail and hospitality.
• Lighting for furniture, showcases and displays.
• Museum and gallery lighting with natural colour reproduction.
• Design interiors and architectural light lines.

Technical data

Supply voltage

24 V DC (constant voltage, SELV)

Power

approx. 6 W per metre (± 30 W per reel)

Luminous flux

approx. 600 lm per metre

Efficacy

≈ 100 lm/W

Colour temperatures

3000 K (930), 4000 K (940)

Colour rendering

CRI > 90, MacAdam 3

Construction

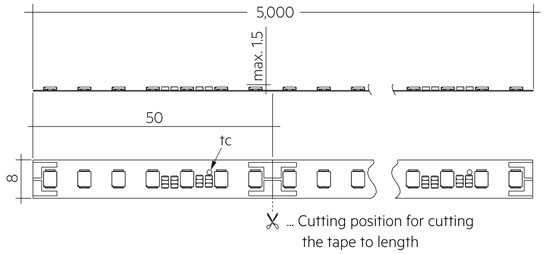

Flexible LED module, width 8 mm; 140 LED/m; cuttable every 5 cm

Series

SNC4 R05

Control

Dimmable via suitable 24 V CV driver (PWM, 0/1–10 V, DALI-CV)*

Light pattern

Linear and uniform (depending on LED pitch and applied diffuser)

Lifespan

60,000 h (L80/B10 at tp = 25 °C)

Warranty

5 years (conditions on Tridonic.com)

Important notes

• Use only with 24 V DC constant voltage drivers with sufficient power reserve.
• Observe polarity; never connect directly to 230 V.
• For thermal stability and uniform light: preferably mount in an aluminium profile with diffuser.
• Consider voltage drop at longer lengths; feed from both ends or use intermediate feed points if necessary.
• Installation according to standards; mounting by a qualified installer recommended.

* Dimmability and behaviour depend on the used 24 V driver and dimming interface.
