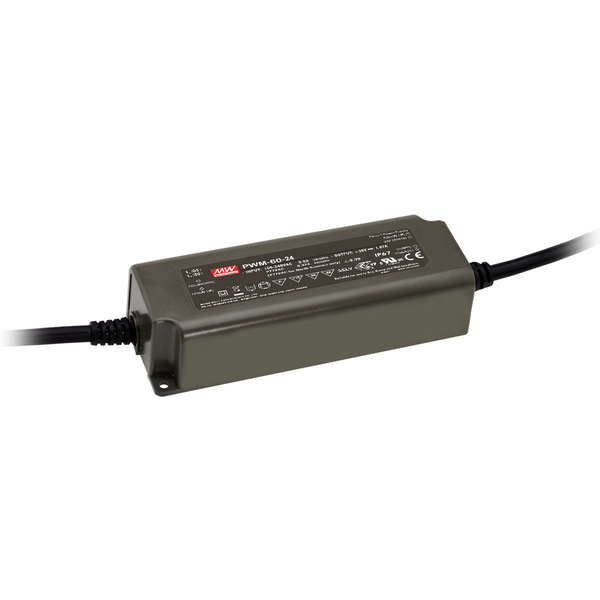

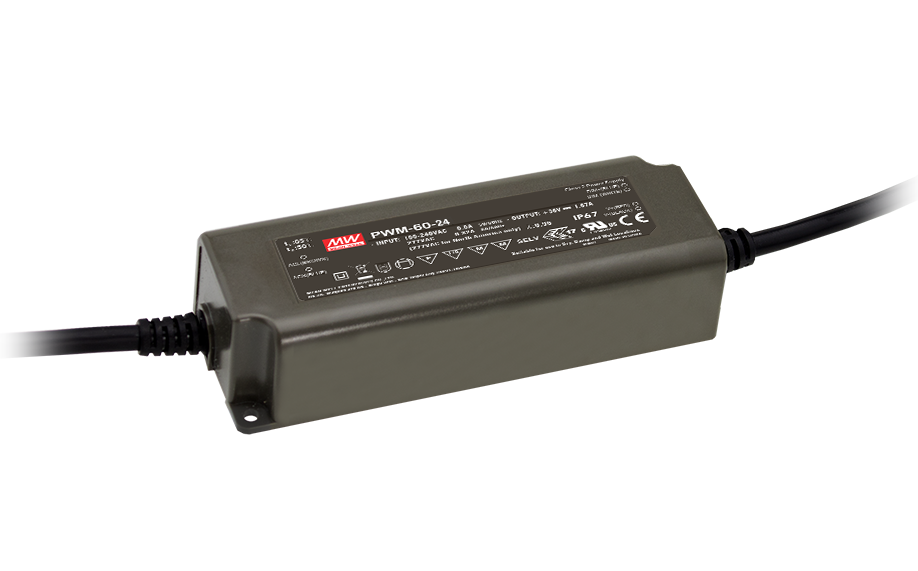

PWM-60-12DA2 AC-DC single output LED driver Constant Voltage (CV)
Specifications
Information
Professional 60W LED Driver with DALI and PWM Output
The Mean Well PWM-60-12DA is a high-quality 60W LED driver featuring 12V constant voltage and 5A output. The PWM output (1.47 kHz) ensures uniform brightness when driving LED strips.
Technical Specifications
- Power: 60W
- Output: 12V DC / 5A
- DALI dimmable (IEC62386-101/102/207)
- 3-in-1 dimming function
- IP67 fully encapsulated
- Input: 90–305VAC
- Built-in active PFC
- No-load power consumption <0.5W
- Efficiency up to 90%
- Protection: short circuit, overload, overvoltage, overtemperature
- Operating temperature: -40°C to +85°C
- Dimensions: 150 x 53 x 35 mm
- Weight: 490 g
Applications
- LED strip lighting
- Architectural lighting
- Commercial lighting
- Indoor and outdoor installations
The IP67 plastic housing allows installation on normally flammable surfaces and in furniture. Lifetime >50,000 hours.
