PWM-120-24DA2 AC-DC Single output LED driver Constant Voltage (CV)

43,65 Excl. tax€52,82 Incl. tax In stock (5)
Unit price: €43,65 / Piece
CV LED driver with PWM output for LED strips, 24Vdc 5A output, dimmable with DALI 2.0, IP67, universal input 90-305V. Read more

Specifications

Brand:
Meanwell
Article number:
PWM-120-24DA2
EAN:
6971663550239
Availability:
In stock (5)
Delivery time:
Will be shipped within 1 to 2 working days.

Information

Datasheet

Manual

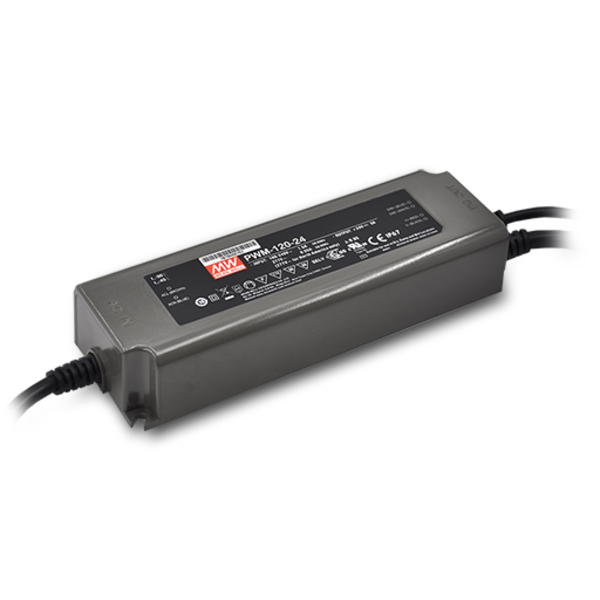

Mean Well PWM-120-24DA2 LED Driver

The Mean Well PWM-120-24DA2 is a reliable AC-DC single output LED driver with a constant voltage (CV) output of 24Vdc at 5A. With a power of 120W, this driver is ideal for LED strips and offers PWM output for precise dimming. It supports DALI 2.0 dimming technology and is fully waterproof with an IP67 rating, making it suitable for both indoor and outdoor applications. This driver has a universal input voltage of 90-305V.

Specifications

  • Output Voltage: 24Vdc
  • Output Current: 5A
  • Power: 120W
  • Input Voltage: 90-305V
  • IP Rating: IP67
  • Dimming Technology: DALI 2.0
  • Dimensions: 63mm (W) x 37.5mm (H) x 191mm (D)
  • Weight: 970g

Available Types

  • PWM-60-24DA2: 60W 24V Constant Voltage (CV)
  • PWM-120-24DA2: 120W 24V Constant Voltage (CV)
  • PWM-90-12DA2: 90W 12V Constant Voltage (CV)
  • PWM-90-24DA2: 90W 24V Constant Voltage (CV)
  • PWM-90-48DA2: 90W 48V Constant Voltage (CV)
  • PWM-120-12DA2: 120W 12V Constant Voltage (CV)
