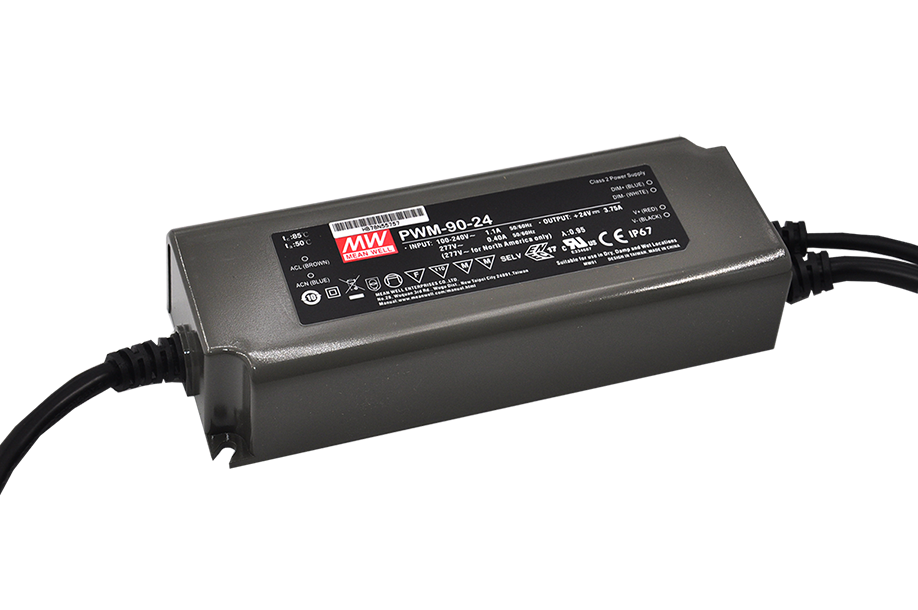

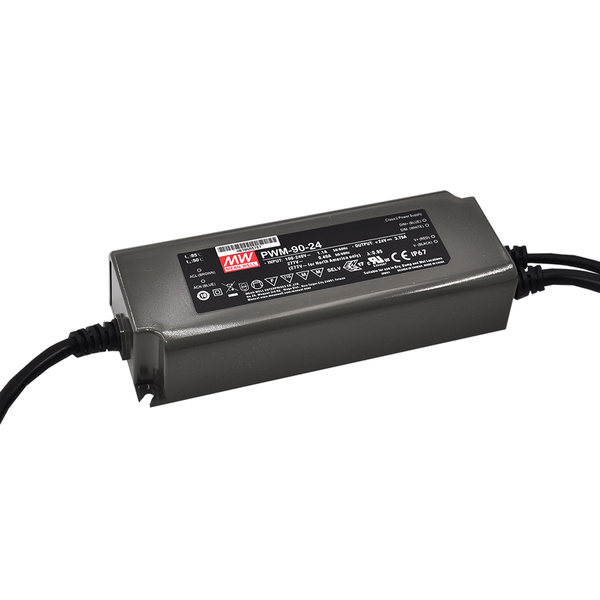

PWM-90-12DA2 90W 12V Constant Voltage (CV)

39,90 Excl. tax€48,28 Incl. tax In stock (5)
Unit price: €39,90 / Piece
The PWM-90-12DA2 is a 90W 12V constant voltage (CV) LED driver with PWM output and DALI 2.0 dimming. Ideal for LED strips, waterproof (IP67), high efficiency, and low no-load power consumption. Read more

Specifications

Brand:
Meanwell
Article number:
PWM-90-12DA2
Availability:
In stock (5)
Delivery time:
Will be shipped within 1 to 2 working days.

Information

Manual

Product Description PWM-90-12DA2

The Mean Well PWM-90 series is a range of 90W LED drivers with a built-in 3-in-1 dimming function and PWM-like output, adapting to all kinds of LED strips and ensuring that color temperature and brightness are consistently maintained. The PWM-90 LED drivers have a high efficiency of up to 90.5% and a low no-load power consumption of less than 0.5 W. These LED power supplies are waterproof, with a housing made of 94V-0 flame-retardant plastic. The interior of the PWM-90 is fully encapsulated in silicone, making these LED drivers suitable to meet anti-vibration demands up to 5G and improve heat dissipation. The PWM-90 LED drivers have an IP67 rating and can be used in very dusty and humid environments. The class II design and double insulated weatherproof cable make the PWM-90 LED drivers ideal for flexible installation in applications such as LED strip lighting, LED indoor lighting, LED decorative lighting, and LED architectural lighting.

Available Types:

  • PWM-60-24DA2: 60W 24V Constant Voltage (CV)
  • PWM-120-24DA2: 120W 24V Constant Voltage (CV)
  • PWM-90-12DA2: 90W 12V Constant Voltage (CV)
  • PWM-90-24DA2: 90W 24V Constant Voltage (CV)
  • PWM-90-48DA2: 90W 48V Constant Voltage (CV)
  • PWM-120-12DA2: 120W 12V Constant Voltage (CV)

Specifications:

  • Output Power: 90W
  • Output Voltage: 12V
  • Output Current: 7.5A
  • Input Voltage: 90-305V
  • IP Rating: IP67
  • Width: 63mm
  • Height: 37.5mm
  • Depth: 171mm
  • Dimming Technology: DALI 2.0
