DALI-2 4xRM16 I HS I Relay Module DT7
Specifications
Information

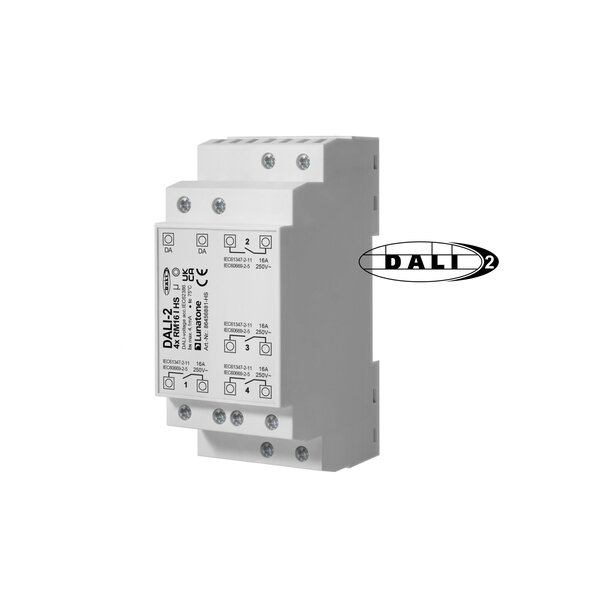

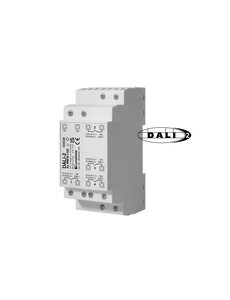

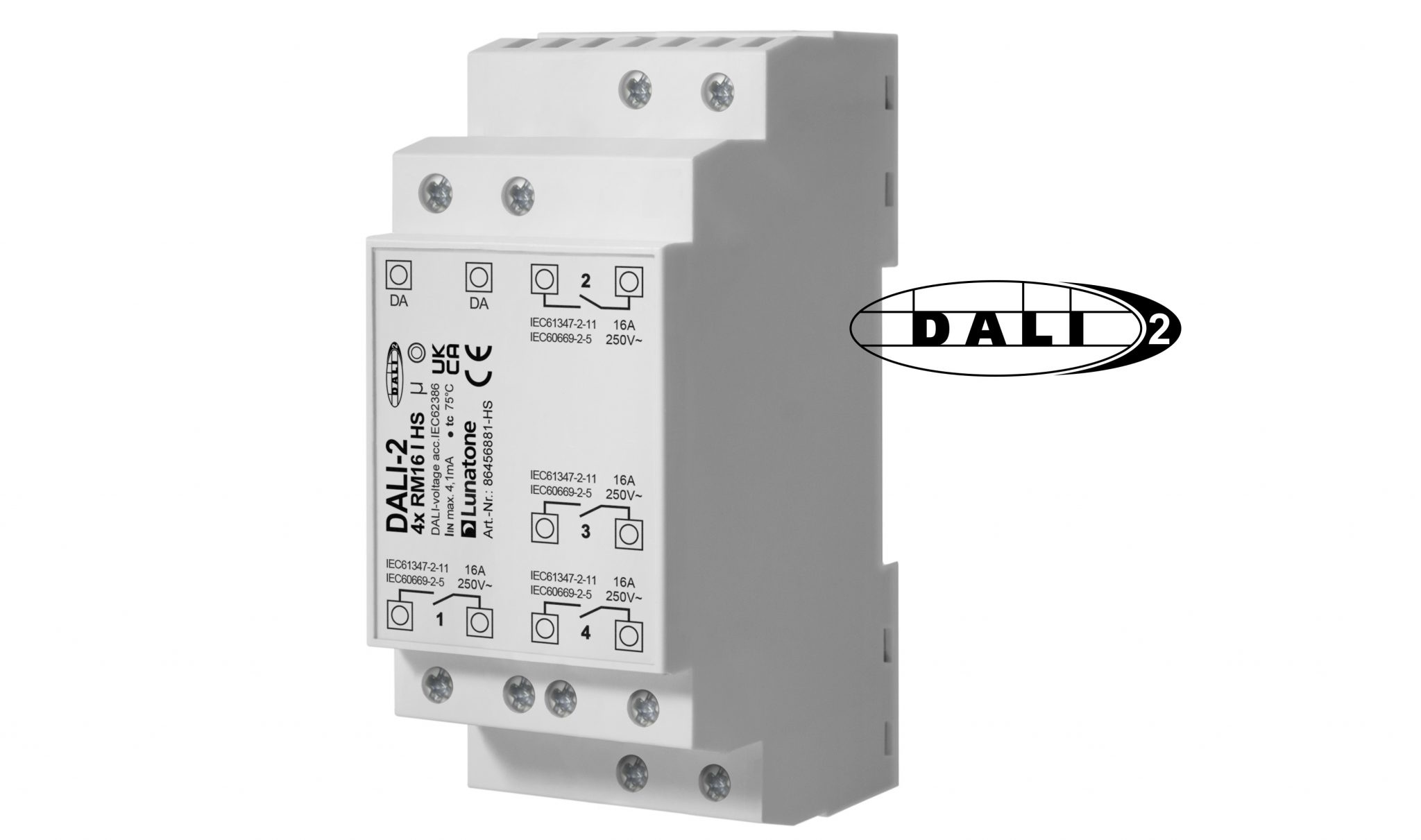

DALI-2 4xRM16 I HS Relay Module (Art. No.: 86456881-HS)
The DALI-2 4xRM16 I HS is an advanced relay module designed for DIN rail installation. With four independent relay outputs, it is ideal for switching non-dimmable loads up to 3.6kW in DALI lighting systems. Featuring zero cross-switching, it extends the lifespan of connected devices. Programmable settings such as startup behavior and system failure responses can be configured via the DALI Cockpit software.
Main Features
- 4 independent DALI addresses, one per channel
- Supports loads up to 3.6kW per channel
- Zero cross-switching for optimal efficiency
- Powered via the DALI bus, no additional power supply required
- Compatible with various DALI interface modules (USB, WLAN, IoT, etc.)
- Programmable settings for power-up and system failure behavior
- Compact dimensions, ideal for control cabinet installations
Technical Specifications
| Type | DALI-2 4xRM16 I HS |
|---|---|
| Article Number | 86456881-HS |
| Power Supply | Via DALI signal line |
| Current Consumption | 4.1 mA typ. |
| Relay Outputs | 4 (independently configurable) |
| Nominal Voltage | 230V AC |
| Maximum Continuous Current | 16A per channel |
| Maximum Inrush Current | 350A |
| Maximum Load | 3.6kW per channel |
| Switching Technique | Zero cross-switching |
| Contact Type | Normally open (NO) |
| Maximum Switching Operations | > 100,000 at nominal load |
| Environmental Conditions | -20°C to +60°C (operational), -20°C to +75°C (storage) |
| Dimensions | 98mm x 36mm x 56mm |
| Mounting | DIN rail (2DU) |
| Protection Class | IP40 (housing), IP20 (terminals) |
| Compatibility | DALI IEC 62386-102, IEC 62386-208 |
| Certifications | CE, UKCA, DALI-2 |
Important Note
The DALI-2 4xRM16 I HS complies with DALI Device Type 7 (IEC 62386-208) and operates as a relay for non-dimmable loads. It offers full flexibility for integration into DALI lighting systems and is powered directly via the DALI signal line.
