Constant Voltage – LC 200W 48V one4all NF SC EXC
€131,68 Incl. tax €263,37 Incl. tax. Out of stock, but available
Specifications
Information
click here for information on the Tridonic website

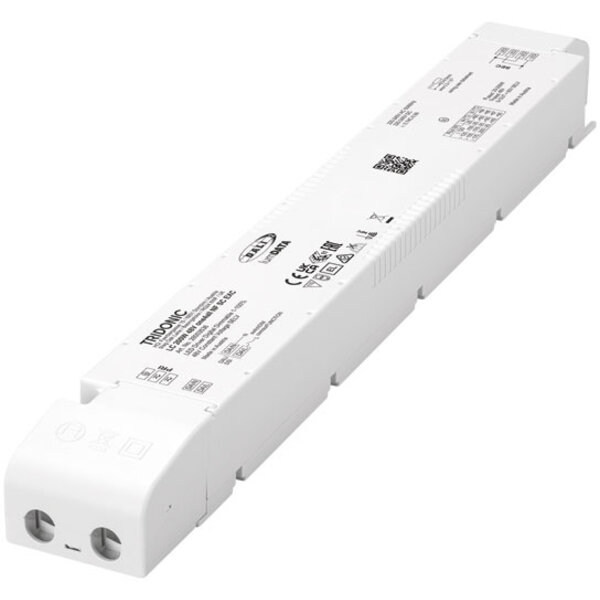

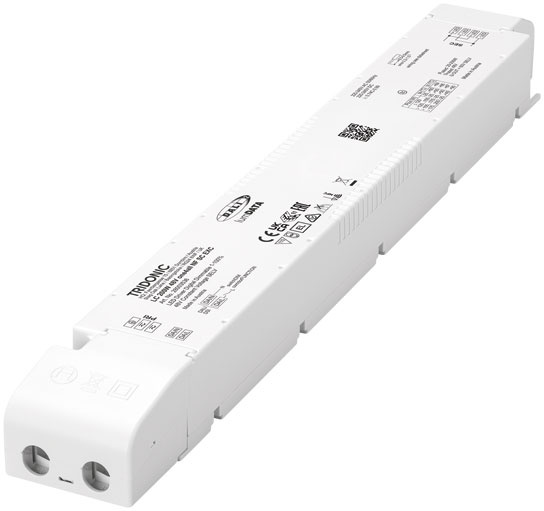

Tridonic LC 200W 48V one4all NF SC EXC
Art. No.: 28003536
Explanation of Tridonic constant voltage driver designation
With Tridonic constant voltage drivers such as the LC 200W 48V one4all NF SC EXC, the numbers indicate:
200W = maximum output power in watts
48V = constant output voltage in volts
There is no adjustable output current range; the driver delivers a fixed voltage, ideal for LED strips and linear lighting.
Application
The Tridonic LC 200W 48V one4all NF SC EXC is a powerful, compact and dimmable 48V constant voltage LED driver. It is ideal for flexible LED strips, cove lighting, facade accent lighting and ceiling integration, where high performance, reliability and flexibility are required. Thanks to the integrated one4all interface (DALI-2, DSI, switchDIM, corridorFUNCTION), this driver supports multiple dimming methods and is fully compatible with modern control systems. Features lumDATA for luminaire data, energy reporting and maintenance. Suitable for emergency lighting systems according to EN 50172.
Main features
- NEW: lumDATA (luminaire data, energy reporting, diagnostics & maintenance)
- Dimmable 48 V constant voltage LED driver for flexible LED strips
- Can be used built-in or independently; strain relief always included
- Dimming range from 1 to 100% via one4all (DALI-2, DSI, switchDIM, corridorFUNCTION)
- No external dimmer needed
- NFC (Near Field Communication) for easy configuration
- Push terminals (45°) for quick wiring
- Suitable for emergency lighting systems according to EN 50172
- Nominal lifetime up to 100,000 hours
- High efficiency: up to 95%
- IP20 protection class, SELV, short-circuit proof
- Housing type: polycarbonate, white
- Complies with the latest approvals and standards (DALI-2, CE, UKCA, ENEC, RoHS, RCM, KCC, CCC, EAC, etc.)
Technical specifications
- Supply voltage: 220 – 240 V AC
- AC voltage range: 198 – 264 V
- DC voltage range: 176 – 280 V
- Mains frequency: 0 / 50 / 60 Hz
- Overvoltage protection: 320 V AC (48 hours)
- Typical rated current (at 230 V, 50 Hz, full load): 1100 mA
- Typical current (220 V, 0 Hz, full load, 15% dim level): 155 mA
- Leakage current (at 230 V, 50 Hz, full load): < 0.55 mA
- Typical input current in no-load operation: < 60 mA
- In-rush current (peak / duration): 89.3 A / 275 µs
- Max. input power: 215 W
- Typical standby power consumption: < 0.2 W
- Typical input power in no-load operation: < 0.3 W
- Output power range: 20 – 200 W
- Typical efficiency: 95% (at 230 V, 50 Hz, full load)
- Power factor λ: 0.99 (at 230 V, 50 Hz, full load)
- THD: < 6%
- Starting time (at 230 V, 50 Hz, full load): < 0.6 s
- Starting time (DC mode): < 0.4 s
- Switchover time AC/DC: < 0.2 s
- Turn off time (at 230 V, 50 Hz, full load): < 0.03 s
- Output voltage tolerance: ± 2 V
- Output LF voltage ripple (< 120 Hz): ± 5 %
- Max. output voltage (U-OUT): 60 V
- Dimming range: 1 – 100 %
- PWM frequency: approx. 1000 Hz
- Mains surge capability (L-N): 1 kV
- Mains surge capability (L/N-PE): 2 kV

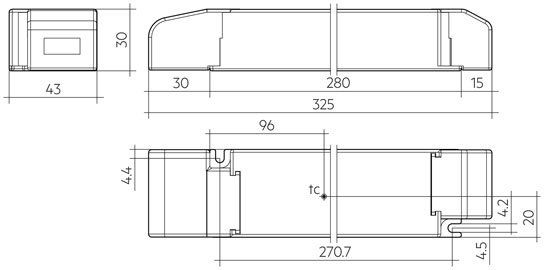

- Dimensions (L x W x H): 325 x 43 x 30 mm
- Protection class: IP20
- Lifetime: up to 100,000 hours
- Guarantee: 5 years (see conditions: Tridonic guarantee conditions)
- SCIP code: be1bfa86-0603-441b-a239-8fe8f9b397a3
- Customs tariff no.: 85044095
- EAN/UPC: 9006210745268
- Country of origin: Austria (AT)
Important notes
- The driver offers lumDATA for advanced management of luminaire data, energy reporting and maintenance.
- Compatible with Tridonic LLE FLEX 8 mm/12 mm 48V EXC strips (600 to 4000 lm/m).
- Test dimming function at low levels when using third-party light sources.
- Install only by qualified personnel according to Tridonic instructions.
- Strain relief is always included; in the SP version, each driver is individually packed.
- For correct operation and warranty, always follow the Tridonic installation manual.
