Constant Voltage – LC 35W 48V one4all NF SC EXC
€69,97 Incl. tax €139,94 Incl. tax. Out of stock, but available
Specifications
Information
click here for information on the Tridonic website
Tridonic LC 35W 48V one4all NF SC EXC LED Driver
Art. No.: 28003533
The Tridonic LC 35W 48V one4all NF SC EXC is a compact, dimmable LED driver with a constant output voltage of 48V and a maximum output power of 35W. This driver is designed for powering and dimming 48V LED strips and linear LED modules, offering maximum flexibility thanks to the advanced one4all interface (DALI-2, DSI, switchDIM, corridorFUNCTION) and NFC functionality.
The driver can be used for both built-in and independent installation and comes with a clip-on strain relief for easy and safe installation. The LC 35W 48V one4all NF SC EXC complies with emergency lighting system requirements according to EN 50172. With a dimming range of 1–100% and no need for an external dimmer, a wide variety of installations can be realized easily. Its compact size (195 x 43 x 30 mm) and convenient push terminals make installation and wiring quick and efficient.
Features lumDATA for comprehensive reporting of luminaire data, energy consumption and maintenance diagnostics. Compatible with Tridonic LLE FLEX 48V systems (8 mm and 12 mm width, various lumen options). The nominal lifetime is up to 100,000 hours and the driver comes with a 5-year guarantee (conditions).
Applications
- Cove lighting (indirect light lines and accent lighting)
- LED linear lighting integrated in ceilings
- Facade accent lighting
- Emergency lighting
Technical Data
- Input voltage: 220–240 V AC (198–264 V AC), 176–280 V DC
- Maximum output power: 35 W
- Output voltage: 48 V DC (constant voltage)
- Dimming range: 1–100% (no external dimmer required)
- Nominal lifetime: up to 100,000 hours
- Standby power consumption: <0.2 W
- Efficiency: up to 89% (at full load, 230V)
- Protection: IP20, SELV, short-circuit proof, overvoltage protection (320 V AC, 48 h)

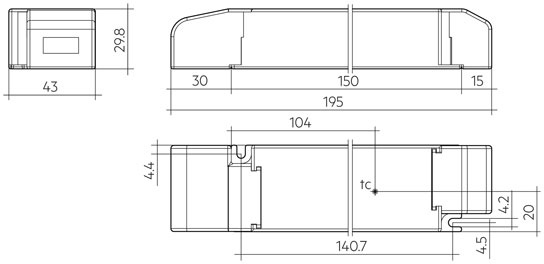

- Dimensions: 195 x 43 x 30 mm
- Interfaces: one4all (DALI-2, DSI, switchDIM, corridorFUNCTION), NFC
- Input/output terminals: 45° push terminals
- PWM frequency: ~1000 Hz
- Power factor (λ): 0.97 (at 230V, full load)
- THD: <10% (at 230V, full load)
- Inrush current (peak/duration): 34.3 A / 160 µs
- Output voltage ripple (LF): ±5% (<120 Hz)
- Maximum output voltage: 60 V
- Country of origin: Austria (AT)
- Certifications: DALI-2, lumDATA, IP20, SELV, RoHS, UKCA, ENEC
- Guarantee: 5 years
- EAN: 9006210745053
Important Notes
- Always test the function of external LED light sources at low dimming levels in advance.
- Suitable for use in emergency lighting systems according to EN 50172.
- Strain relief is included in all packaging variants.
- Flexible use with Tridonic LLE FLEX 48V LED modules and accessories.
- Refer to the data sheet for detailed installation instructions and compatibility.
Explanation of Tridonic constant voltage driver naming
For Tridonic constant voltage drivers such as the LC 35W 48V one4all NF SC EXC, the numbers mean:
35W = maximum output power in watts
48V = constant output voltage in volts
There is no adjustable output current range; the driver provides a fixed voltage, ideal for LED strips and linear lighting.
