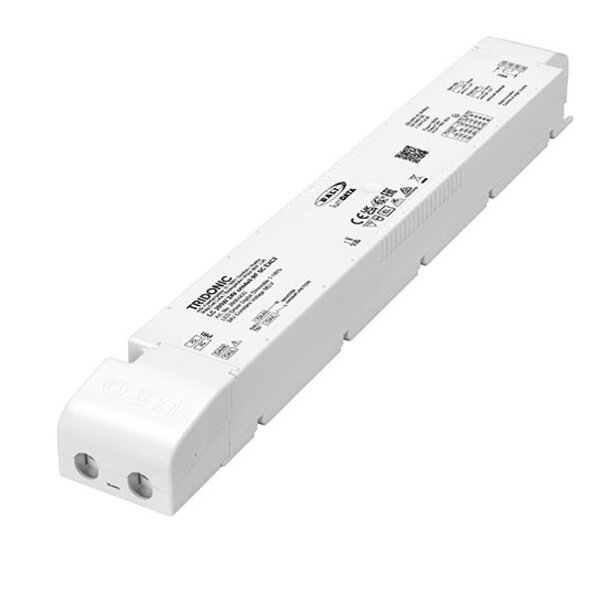

Constant Voltage – LC 200W 24V one4all NF SC EXC2
€123,02 Incl. tax €246,05 Incl. tax. Out of stock, but available
Specifications
Information
click here for information on the Tridonic website

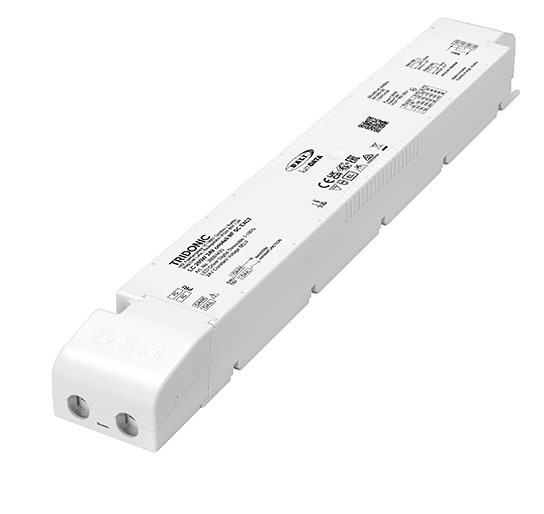

Tridonic LC 200W 24V one4all NF SC EXC2 LED Driver
Art. No.: 28004433
The Tridonic LC 200W 24V one4all NF SC EXC2 is a compact, dimmable LED driver with a constant output voltage of 24 V and a maximum output power of 200 W. This driver is ideal for powering and dimming 24V LED strips and linear LED modules, offering maximum flexibility thanks to the advanced one4all interface (DALI DT 6, DSI, switchDIM, corridorFUNCTION).
The driver is suitable for both built-in and independent installation and comes with strain relief. The LC 200W 24V one4all NF SC EXC2 meets the requirements for emergency lighting systems according to EN 50172. With a dimming range of 1–100% and no need for an external dimmer, versatile installations can be realized easily. The compact design (325 x 43 x 30 mm) and double output terminals (+/–) increase application flexibility.
Equipped with lumDATA for advanced data reporting and maintenance diagnostics. Compatible with systems such as Tridonic LLE-FLEX ADV and EXC. Nominal lifetime up to 100,000 hours and 5-year guarantee (conditions: tridonic.com).
Applications
- Cove lighting and accent lighting
- LED linear lighting in ceilings
- Facade lighting
- Emergency lighting
Technical Data
- Input voltage: 220–240 V AC (198–264 V AC), 176–280 V DC
- Maximum output power: 200 W
- Output voltage: 24 V DC (constant voltage)
- Dimming range: 1–100% (no external dimmer required)
- Nominal lifetime: up to 100,000 hours
- Standby power consumption: <0.16 W
- Efficiency: up to 94% (at full load, 230V)
- Protection: IP20, SELV, short-circuit proof, overvoltage protection (320 V AC, 48 h)

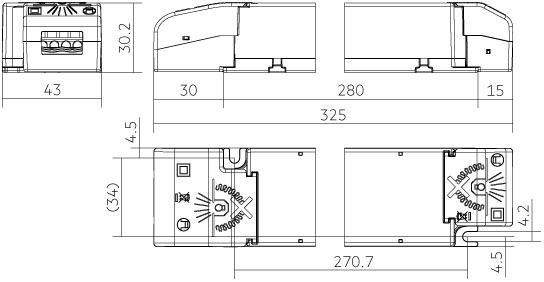

- Dimensions: 325 x 43 x 30 mm
- Interfaces: one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
- Input terminals: 45° push terminals
- Output terminals: 0° push terminals, double (+/–)
- PWM frequency: ≥ 1000 Hz
- Power factor (λ): max. 0.99, min. 0.67
- THD: <5.4% (at 230 V, full load)
- Inrush current (peak/duration): 89.7 A / 166 µs
- Output voltage ripple (LF): ±5% (<120 Hz)
- Maximum output voltage: 60 V
- Country of origin: Austria (AT)
- Approvals: DALI-2, NFC, IP20, SELV, RoHS, UKCA, ENEC
- Guarantee: 5 years
- EAN: 9006210797458
Important Notes
- Always test external LED light sources at low dimming levels in advance.
- Suitable for use in emergency lighting systems according to EN 50172.
- Strain relief is included in all packaging variants.
- Flexible use with Tridonic LLE-FLEX ADV/EXC LED modules and accessories.
- Refer to the data sheet for detailed installation instructions and compatibility.
Explanation of Tridonic constant voltage driver designation
For Tridonic constant voltage drivers like the LC 200W 24V one4all NF SC EXC2, the numbers mean:
200W = maximum output power in watts
24V = constant output voltage in volts
There is no adjustable output current range; the driver provides a fixed voltage, ideal for LED strips.
