Constant Current 2-channel LED driver 350–1050mA 38W
€69,84 Excl. tax
€139,68 Excl. tax
€84,51 Incl. tax €169,01 Incl. tax. Out of stock, but available
€84,51 Incl. tax €169,01 Incl. tax. Out of stock, but available
Dimmable LED driver (DALI-2 DT8) with adjustable current 350-1050 mA. Max. 38W, 87% efficiency, IP20. Suitable for class I & II luminaires, emergency lighting, and Tunable White. Read more
Specifications
Brand:
Tridonic
Housing:
Surface-mounted housing
Input voltage:
230Vac
DALI Type:
DT8
DALI-2 certified:
Yes
Article number:
28002199
EAN:
9006210643915
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Due to the holidays, orders may be delayed and pickup is not possible.
Information
Datasheet

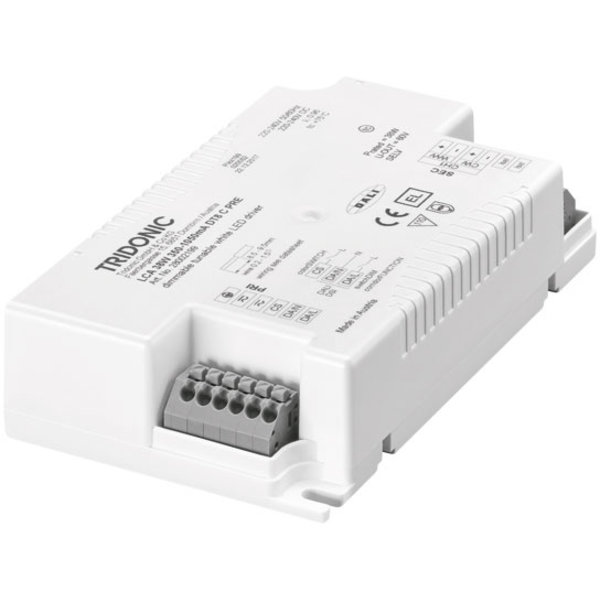

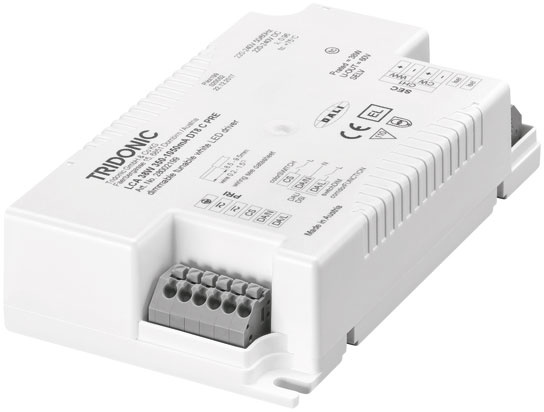

LCA 38W 350-1050mA DT8 C PRE LED Driver
Art.nr. 28002199
Product Description
The LCA 38W 350-1050mA DT8 C PRE is a dimmable built-in LED driver with an adjustable output current between 350 and 1050 mA via I-SELECT 2 plugs or DALI. The driver supports DALI-2 DT8 and offers a dimming range from 1 to 100%. It is suitable for Class I and II luminaires and can be used in emergency lighting systems according to EN 50172.
Technical Specifications
- Supply Voltage: 220 – 240 V
- AC Voltage Range: 198 – 264 V
- DC Voltage Range: 176 – 288 V
- Frequency: 0 / 50 / 60 Hz
- Maximum Power: 38 W
- Efficiency: Up to 87%
- Dimming Range: 1 – 100%
- Protection Class: IP20
- Overvoltage Protection: 320 V AC, 48 hours
- Standby Power Consumption: < 0.25 W
- Output Voltage: Max. 60 V
- Output Current: 350 – 1050 mA (adjustable)
- Power Factor (λ): > 0.96
- THD (Total Harmonic Distortion): < 10%
- Start-up Time: < 0.6 s
- Dimensions: 120 x 70 x 28.3 mm
- Weight: approx. 190 g
- Warranty: 5 years
- Lifetime: Up to 100,000 hours
Features
This LED driver offers flexible configuration options, including:
- Adjustable output current in 1 mA steps via DALI or I-SELECT 2.
- Constant Light Output (CLO) function.
- colourSWITCH with predefined colors.
- switchDIM and colourSWITCH with memory function.
- Power-up fading and fade2zero.
- Protection against overheating, short circuit, overload, and no load.
- Suitable for emergency lighting according to EN 50172.
Typical Applications
This LED driver is ideal for:
- Spot and downlight applications in retail and hospitality.
- Tunable White applications.
- Emergency lighting systems.
Refer to the full technical documentation for further details on installation and usage.
