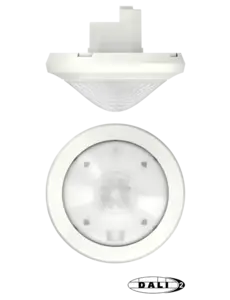

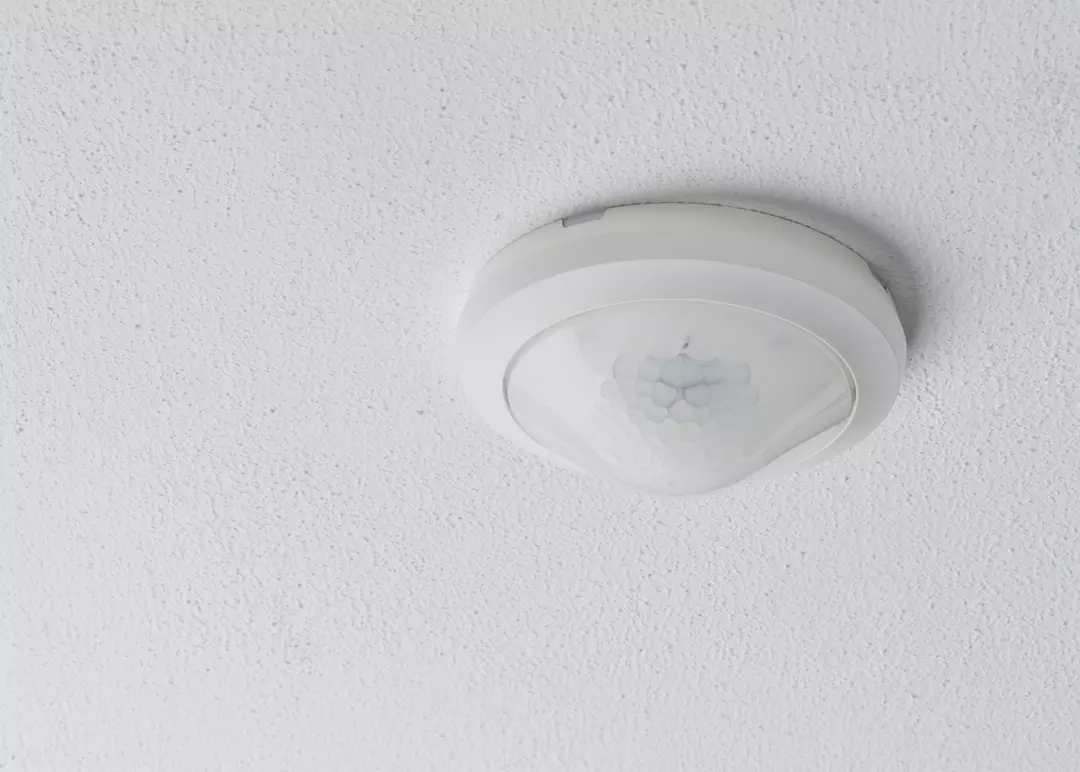

theRonda S360 DALI-2 S UP WH, PIR 360°, Ø8m white, with slave function

138,48 Excl. tax €230,80 Excl. tax
€167,56 Incl. tax 279,27 Incl. tax.
Out of stock, but available
Unit price: €138,48 / Piece
Passive infrared presence sensor for ceiling mounting. DALI-2 certified, 360° detection, Ø9m, provides presence and light info via DALI telegram. Read more

Specifications

Brand:
Theben
DALI-2 certified:
yes
Article number:
2080590
EAN:
4003468200384
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Information

Link to Theben website

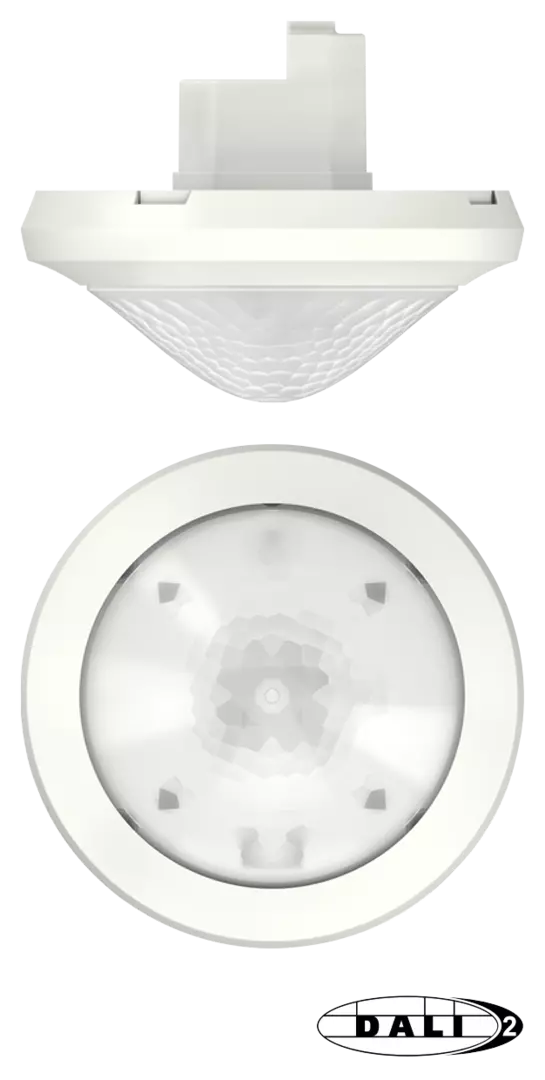

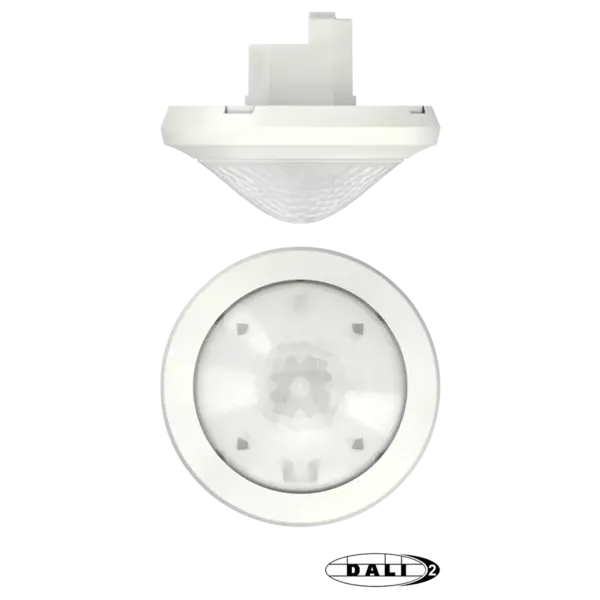

theRonda S360 DALI-2 S UP WH

Passive infrared presence sensor for ceiling mounting, DALI-2, 360°, Ø9m, white

Art. no. 2080590

Detailed product description

Application

The theRonda S360 DALI-2 S UP WH is an advanced passive infrared presence sensor designed for energy-efficient and automatic lighting control in offices, schools, meeting rooms, and public buildings. This sensor is suitable for flush ceiling mounting and reliably provides presence and light information to a DALI installation.

Main features

  • DALI-2 certified according to IEC 62386 part 101, 103, 303, and 304
  • 360° circular detection area up to Ø9 meters (maximum 64 m²)
  • Advanced mixed light measurement, suitable for fluorescent lamps, halogen/incandescent lamps, and LEDs
  • Transmits presence and light level information via DALI telegram
  • 1 instance for presence, 1 instance for light level
  • Easy correction of light measurement
  • Test mode for quick verification of function and detection range
  • Adjustable detection sensitivity via DALI bus or remote control
  • Adjustable parameters via DALI bus or remote control
  • Convenient operation with user remotes "theSenda S" or "theSenda B" (also for dimming and switching)
  • Ceiling flush mounting in standard mounting box (55 mm diameter)
  • Detection range can be limited with optional masking clips

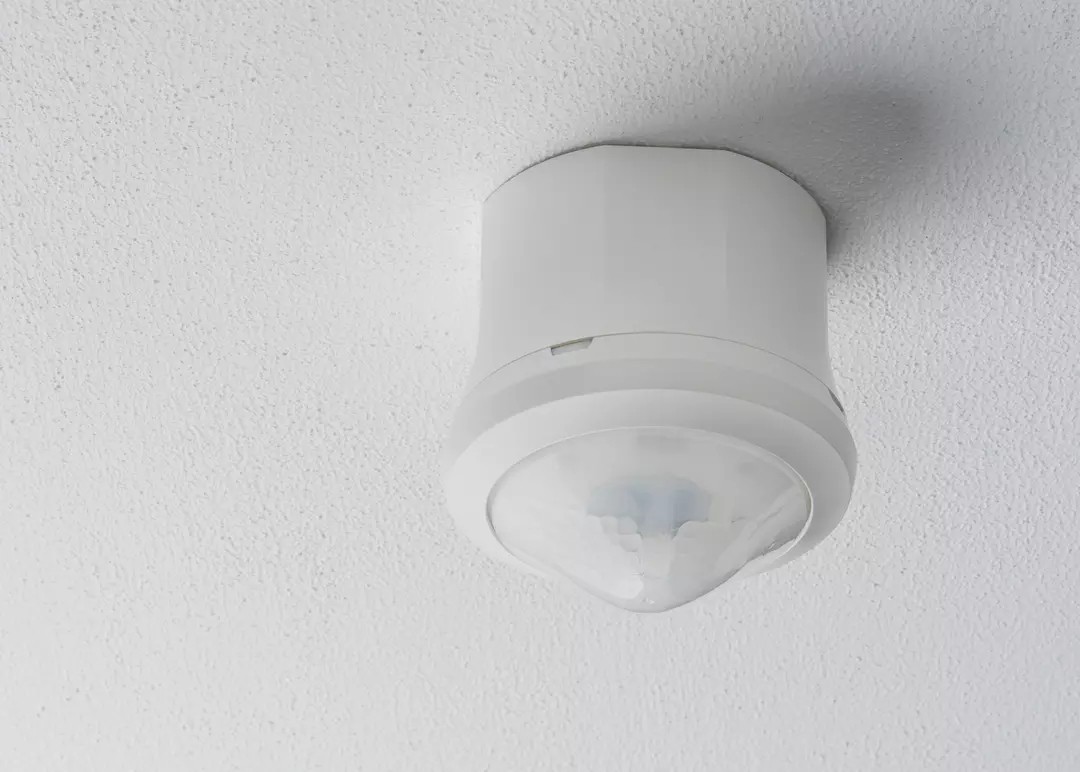

  • Also suitable for surface mounting with optional 110 A mounting frame
  • App remote control "theSenda B" and the "theSenda Plug" app for iOS/Android (optional)
  • Commissioning and configuration require a Multi-Master Application Controller (according to IEC 62386 part 101/103 and optionally 301/303/304)

Technical data

Operating voltage DALI bus
Mounting height 2 - 4 m (min. 1.7 m)
Mounting type Ceiling flush mounting (mounting box 55 mm)
Color White
Detection area 360°, up to Ø9 m (max. 64 m²)
Detection angle 360°
Light measurement Mixed light measurement, single
Adjustable light level 10 - 10000 lx
Own consumption ≤10 mA
Max. cable diameter max. 2 x 2.5 mm²
Mounting box size 55 mm
Switching output Sensor DALI
Ambient temperature -15°C ... 50°C
Protection class IP54 (when installed)

Important notes

  • For indoor use only (dry areas), IP54 when installed.
  • Installation only by a qualified electrician in accordance with applicable regulations.
  • Observe maximum load and technical specifications to avoid damage.
  • Detection area can be limited with optional masking clips.
  • Commissioning and operation require a Multi-Master Application Controller according to IEC 62386 part 101/103 and optionally 301/303/304.
  • Compatible with various Theben remote controls for easy operation and setting.
  • Ready for use thanks to factory settings, no complex DALI addressing required.
