theRonda S360-110 DALI UP WH, PIR 360°, Ø8m white, incl. app. ctrl.
€144,20 Incl. tax €240,33 Incl. tax. Out of stock, but available
Specifications
Information

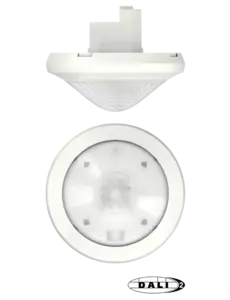

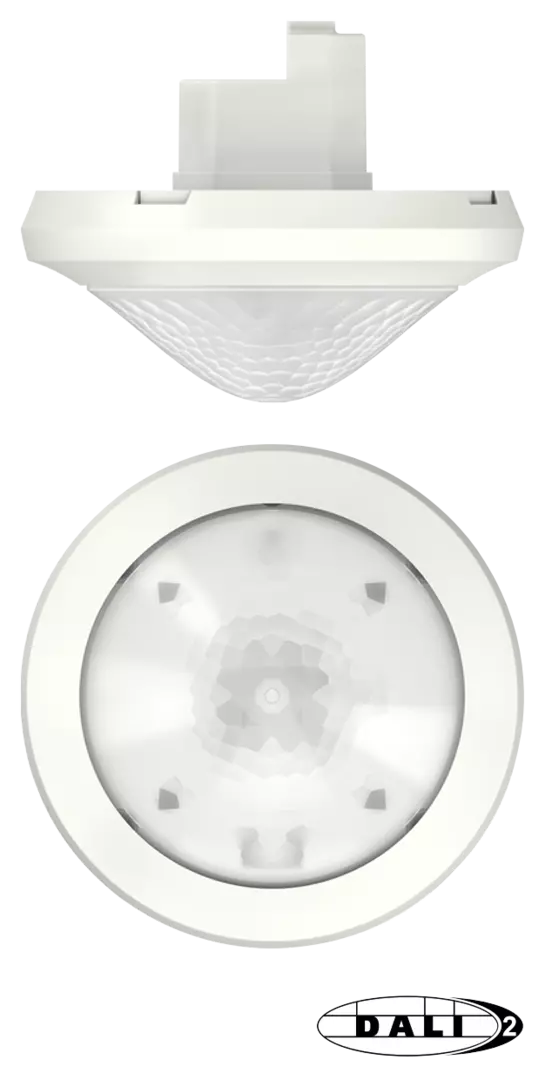

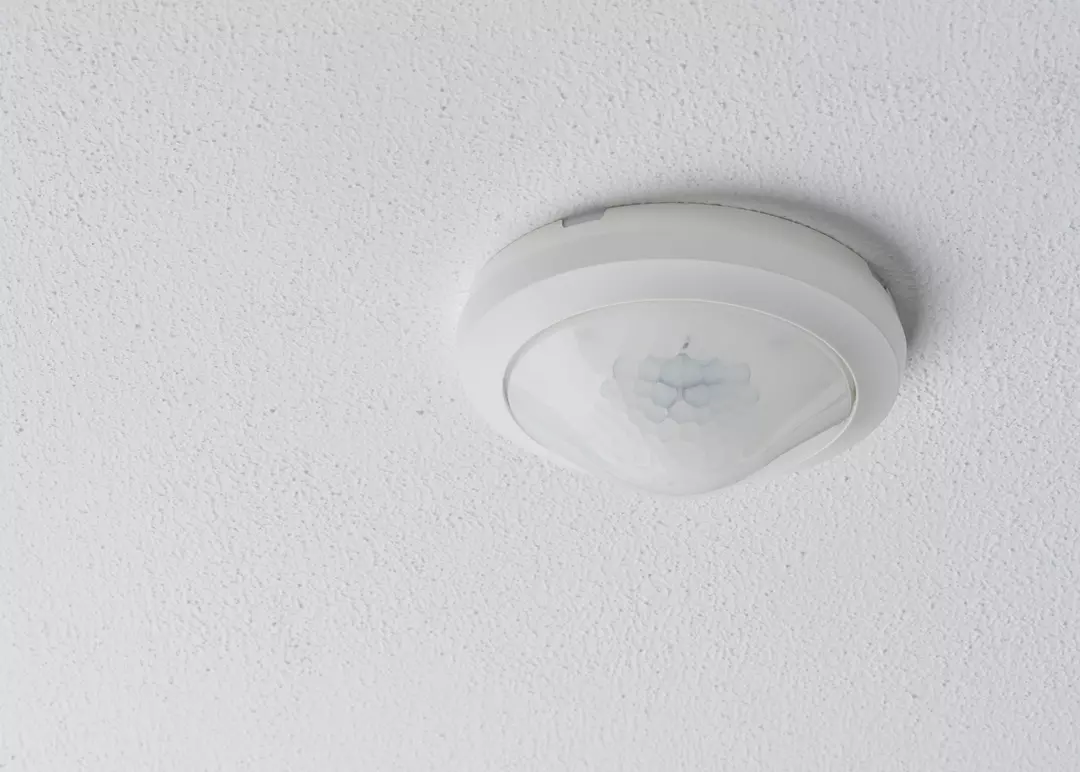

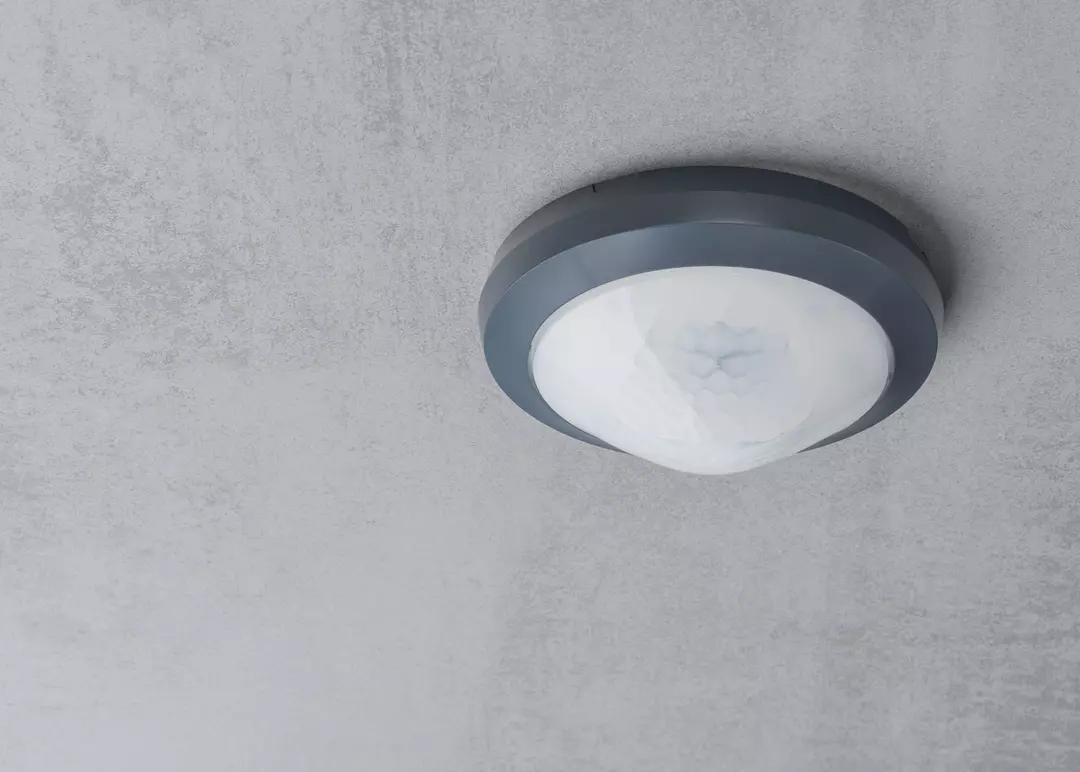

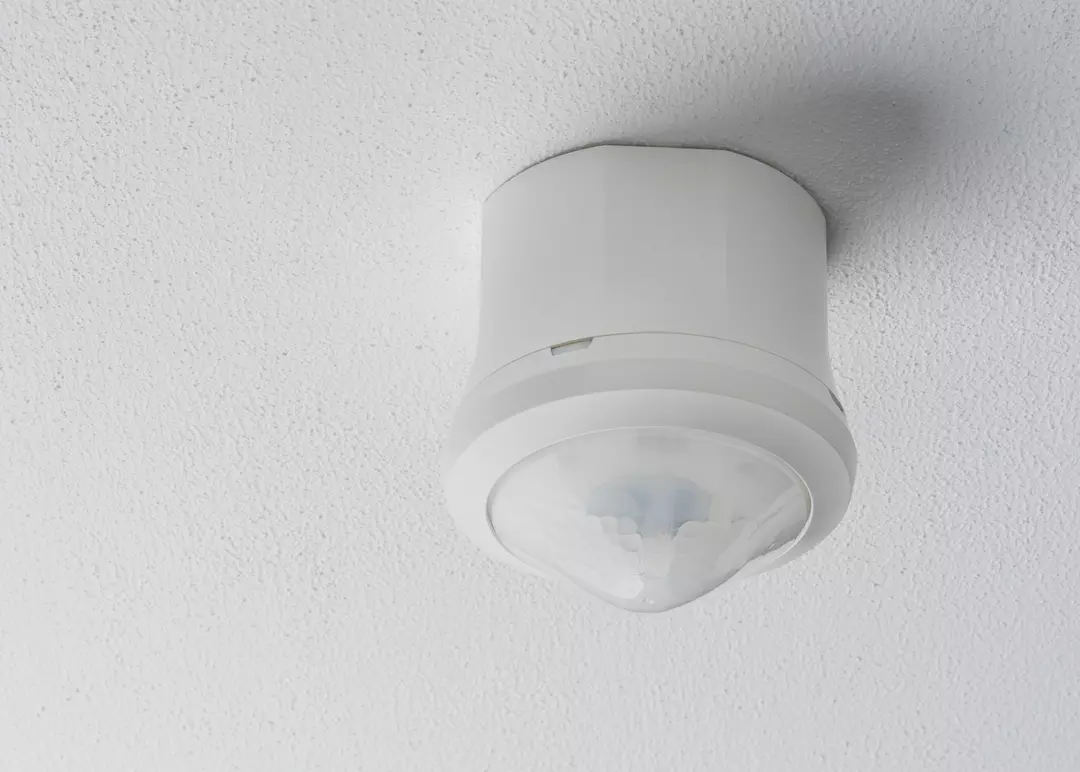

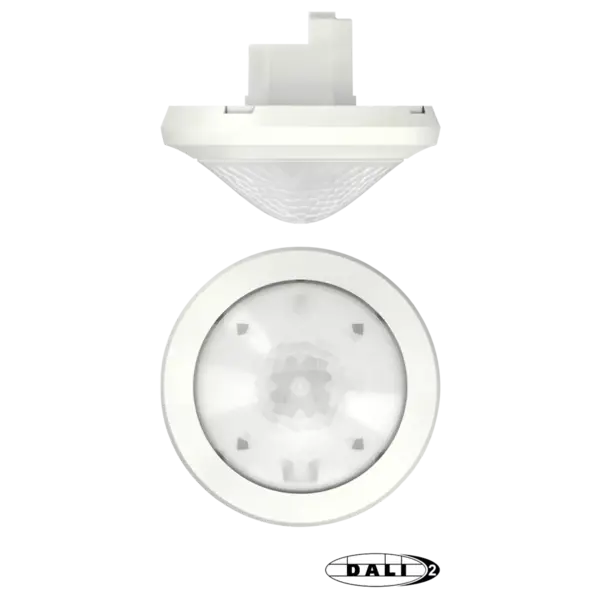

theRonda S360-110 DALI UP WH
Passive infrared presence detector for ceiling mounting, DALI-2, 360°, Ø8 m, white
Art. no. 2080580
Comprehensive Product Description
Application
The theRonda S360-110 DALI UP WH is a high-quality passive infrared presence detector designed for automatic and energy-efficient lighting control in offices, schools, meeting rooms, and public buildings. With DALI-2 certification and a circular detection area of 360° up to Ø8 meters, this device offers a reliable solution for modern lighting installations.
Main Features
- Passive infrared presence detector for flush-mounted ceiling installation
- DALI-2 certified according to IEC 62386 Part 101 and 103
- Circular detection area 360°, maximum Ø8 m (up to 50 m²)
- Automatic lighting control with constant light control or switching mode
- Dimmable lighting when switching, with or without daylight influence
- Orientation light (stand-by function) for safety and comfort
- Simple commissioning without programming group addresses (DALI-2 broadcast)
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps, and LEDs
- Correction of light measurement for optimal accuracy
- Selectable fully or semi-automatic operation
- Desired light level (lux) adjustable from 10 to 3000 lx
- Learning function via remote control or button
- Self-learning run-on time with shortening for brief presence
- Fully adjustable detection sensitivity

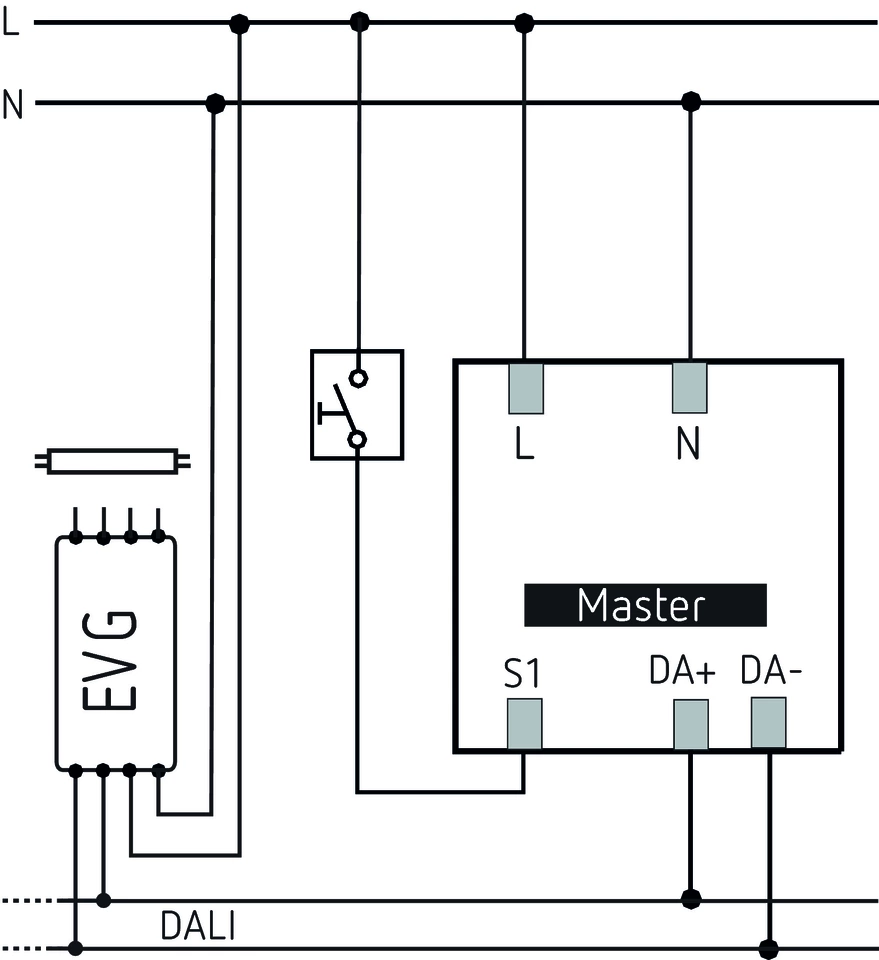

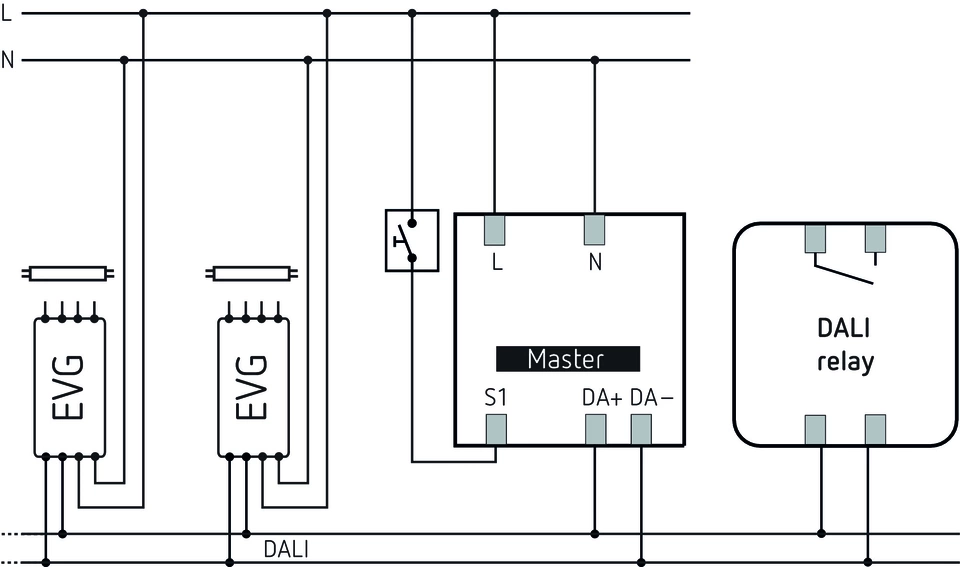

- Option for button connection for manual dimming and switching
- Reaction after button operation can be selected
- Scene functions, test mode, and factory presets for fast commissioning
- Simple energy-saving behavior setup via “eco plus” function

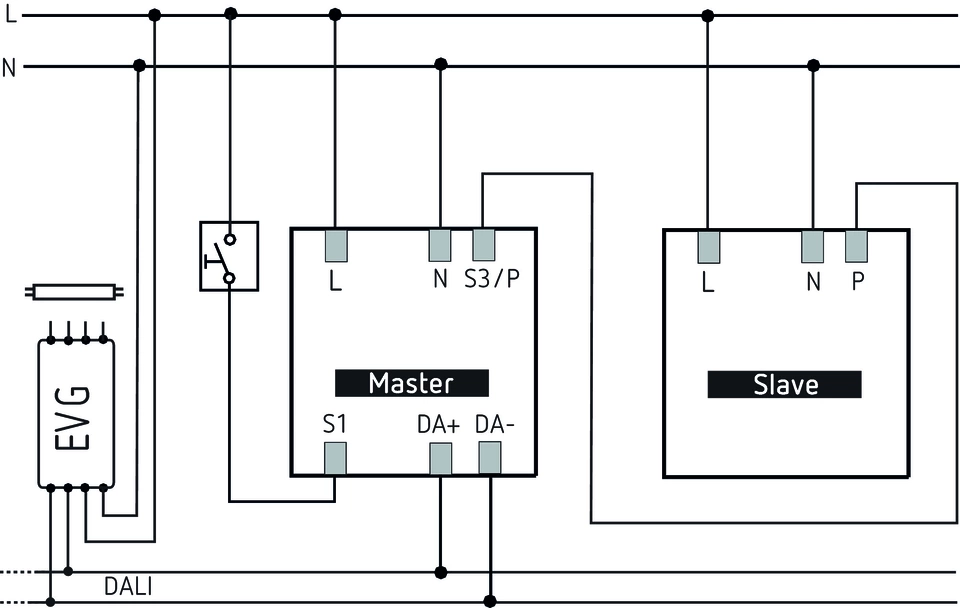

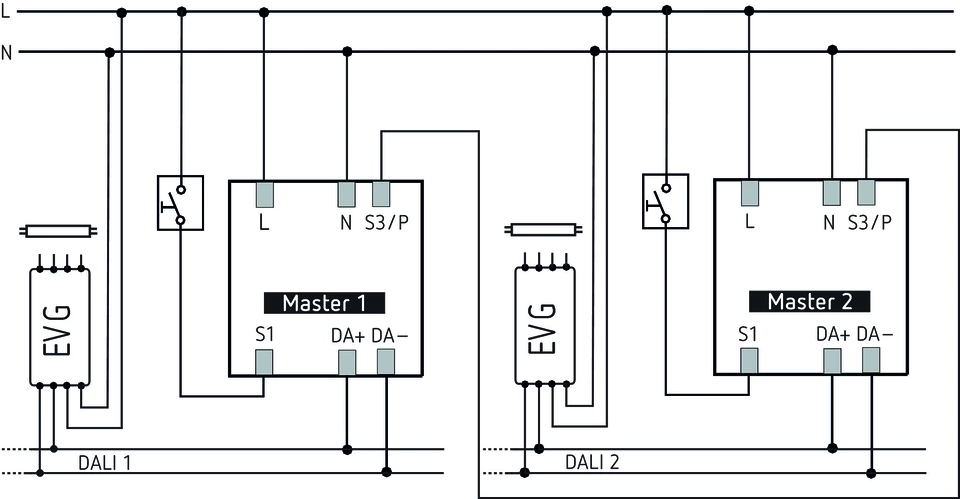

- Extension of the detection area possible via Master/Slave or Master/Master switching

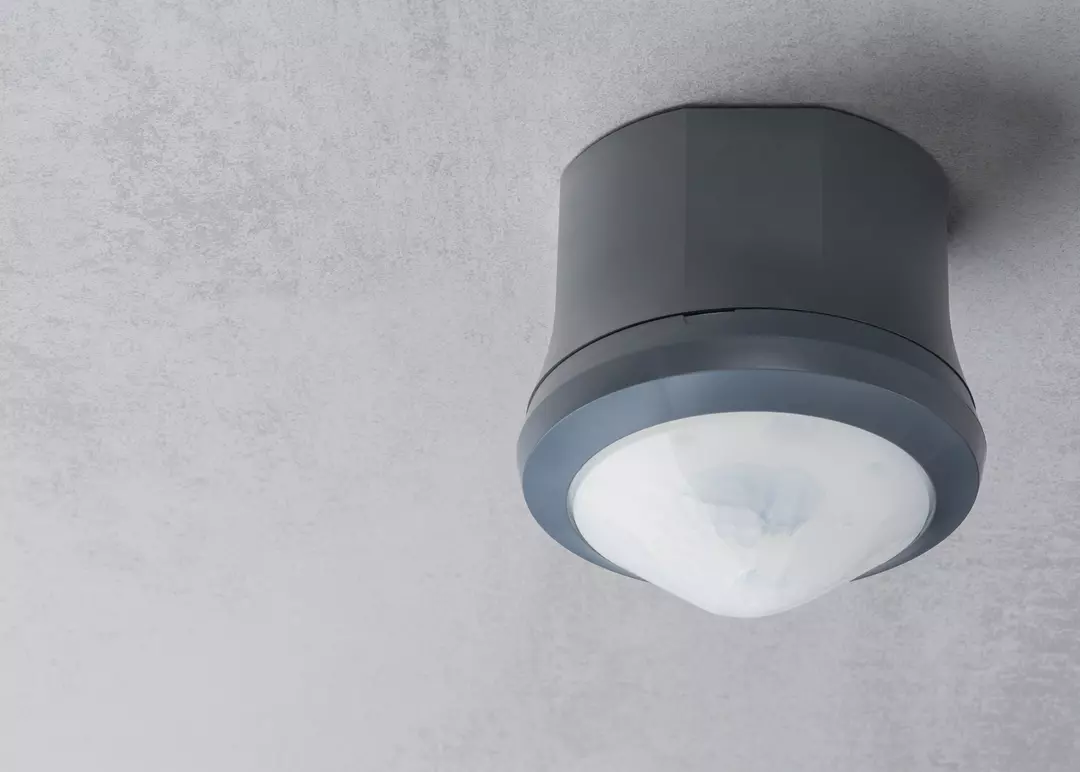

- Surface mounting on the ceiling possible with optional surface frame
- Compatible with: management remote “SendoPro 868-A” (optional), installation remote “theSenda P” (optional), user remote “theSenda S” (optional)
Technical Data
| Operating voltage | 110 V AC - 230 V AC |
| Frequency | 50 - 60 Hz |
| Mounting height | 2 - 4 m (min. 1.7 m) |

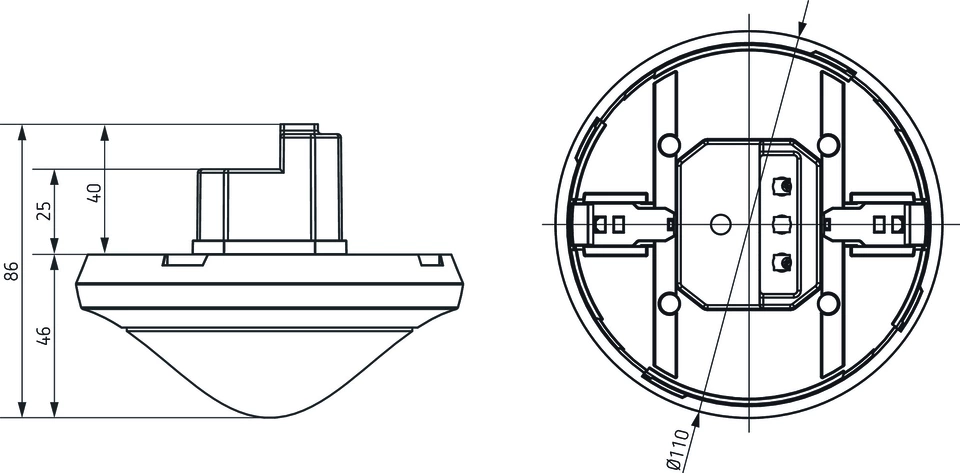

| Mounting type | Ceiling mounting (installation in 55 mm flush box) |
| Color | White |
| Detection area | 360°, Ø8 m (max. 50 m²) |
| Detection angle | 360° |
| Light measurement | Mixed light measurement (suitable for various lamp types) |
| Light level setting range | 10 - 3000 lx |
| Run-on time (light) | 10 s - 60 min (self-learning, shorter with brief presence) |
| Stand-by time (light) | 0 s - 60 min / always on |
| Stand-by light level | 1 - 25 % |
| Lamp types | Incandescent/halogen lamps, fluorescent lamps, energy-saving lamps, LEDs |
| Control output | 100 mA |
| Light output | DALI interface according to IEC SN EN 62 386, for max. 50 DALI devices |
| Max. cable diameter | max. 2 x 2.5 mm² |
| Flush box size | 55 mm |
| Switching output | DALI |
| Power consumption | <0.4 W |
| Ambient temperature | -15°C ... 50°C |
| Protection rating | IP 54 (when installed) |
Important Notes
- For indoor use only (dry rooms), protection rating IP54 when installed.
- Installation only by a qualified electrician in accordance with applicable regulations.
- Observe the maximum load and technical specifications to prevent damage.
- Detection area can be limited with optional cover clips.
- Ready for use thanks to factory settings; no complex DALI addressing required (broadcast).
- Compatible with various Theben remotes for quick and easy configuration.
