theRonda P360-330 DALI 3P WIN, 3ximpulse, flush, 360°, ø24m, white
€190,20 Excl. tax
€317,00 Excl. tax
€230,14 Incl. tax €383,57 Incl. tax. Out of stock, but available
Unit price: €190,20 / Piece
€230,14 Incl. tax €383,57 Incl. tax. Out of stock, but available
Ceiling-mounted presence detector, DALI-2, 3ximpulse, 360°, Ø24m, with WAGO WINSTA connector, adjustable lighting control, energy-saving, easy installation. Suitable for offices and public buildings. Read more
Specifications
Brand:
Theben
DALI-2 certified:
yes
Article number:
2080057
EAN:
4003468200773
Availability:
Out of stock, but available
Delivery time:
Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).
Information
theRonda P360-330 DALI 3P WIN
Presence Detector DALI-2 Ceiling Mount, 3ximpulse, 360°, Ø24m, WINSTA, White
Art. no. 2080057
Detailed Product Description
Application
This presence detector is specifically designed for automatic and energy-efficient lighting control in offices, schools, meeting rooms, and public buildings. With reliable ceiling flush mounting (UP) and a very wide detection range of 360° up to Ø24 m (max. 452 m²), this product is ideal for large spaces where comfort and efficiency are key.
Main Features
- DALI-2 technology according to IEC 62386 Part 101 and 103
- Up to 3 DALI-2 lighting channels addressable (3ximpulse)
- Equipped with WAGO WINSTA connector and pre-assembled connection cables (0.90 m)
- Circular detection area of 360° (up to Ø24 m), easily adjustable with cover clips
- Automatic lighting control with constant light regulation or switching mode
- Dimmable lighting when switching, with or without daylight influence
- Orientation light (standby function) for safety and comfort
- 3 targeted light measurements for precise control
- Self-learning follow-up time with shortening for brief presence
- Learning function via button or remote control
- Adjustable detection sensitivity and light level (10–3000 lux)
- Mixed light measurement suitable for fluorescent lamps, halogen/incandescent lamps, energy-saving lamps, and LEDs
- Simple, intuitive configuration of DALI groups via button or remote control
- Extendable detection area via Master/Slave or Master/Master circuit
- Scene functions, test mode, and factory presets for immediate use
- Eco plus function for easy energy-saving setting
- Connection for up to 3 conventional switches for manual dimming and switching
- Reaction after button operation adjustable
- Surface ceiling mounting possible with mounting frame (optional)
- Optional controls: management remote control "SendoPro 868-A", installation remote "theSenda P", user remote "theSenda S"
Technical Data
Operating voltage | 110 V AC – 230 V AC |
Frequency | 60 Hz |
Mounting height | 1.7 m – 15 m (ideal 3 m) |
Mounting type | Ceiling flush mount (UP), with WAGO WINSTA connector |
Color | White |
Detection area | 360°, Ø24 m (max. 452 m²) |
Detection angle | 360° |
Light measurement | Mixed light measurement, adjustable 10–3000 lux |
Lamp types | Incandescent/halogen lamps, fluorescent lamps, energy-saving lamps, LEDs |
Light output | DALI interface according to IEC SN EN 62 386, up to 50 DALI devices |
Control output | 100 mA |
Switching output | DALI |
Protection class | IP54 (when installed) |
Ambient temperature | Up to 50°C |
Power consumption | < depending on the load |

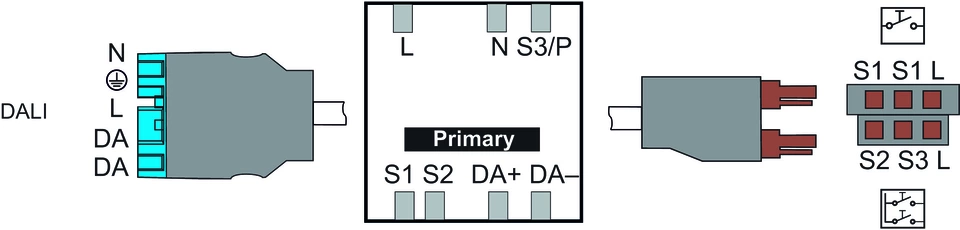

Connection cables | Pre-assembled, length 0.90 m, with WAGO WINSTA connector |
Important Notes
- Only suitable for indoor use (dry areas), protection class IP54 when installed.
- Installation only by a qualified electrician in accordance with applicable regulations.
- Observe the maximum load and technical specifications to avoid damage.
- Compatible with optional Theben remote controls for easy configuration.
- Ready for immediate use thanks to factory settings, no complex DALI addressing needed.
- The WAGO WINSTA connector ensures quick, safe, and error-free installation.
