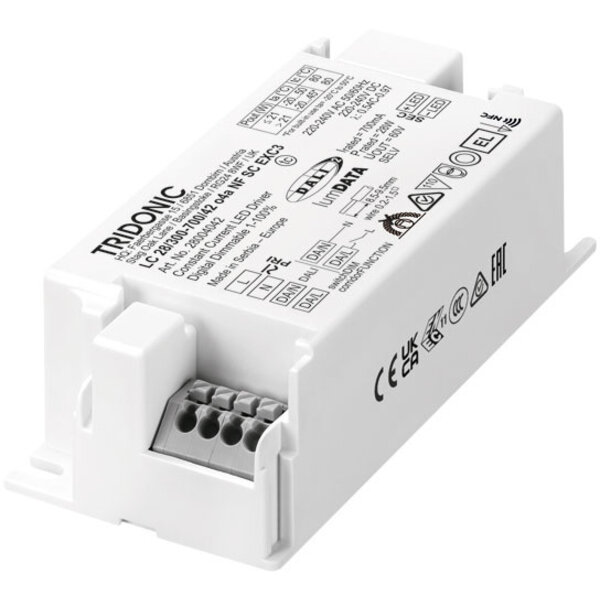

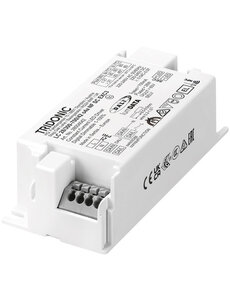

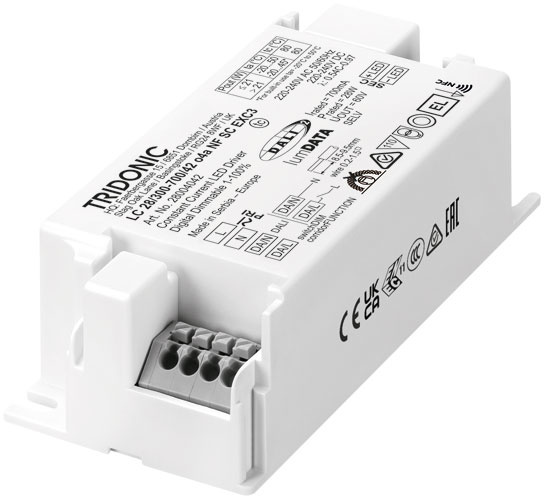

Tridonic Constant Current LED driver LC 28/300-700/42 o4a NF SC EXC3
€30,74 Excl. tax
€63,00 Excl. tax
€37,20 Incl. tax €76,23 Incl. tax. Out of stock, but available
€37,20 Incl. tax €76,23 Incl. tax. Out of stock, but available
lumDATA (DALI-2 part ext. 251, 252 and 253)

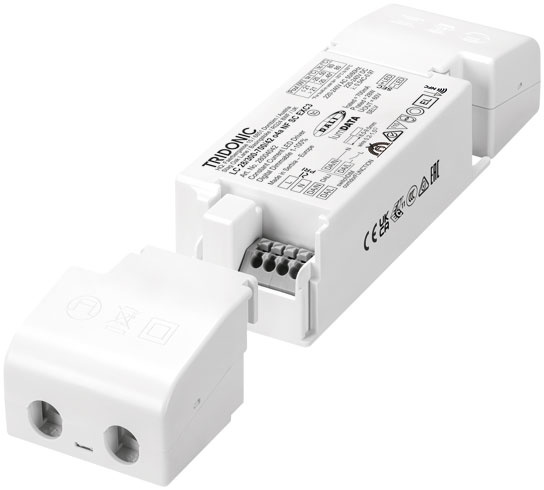

Can be either used build-in or independent with clip-on strain-relief (see accessory)
Dimming range 1 to 100 % (min. 5 mA)
Adjustable output current between 300 – 700 mA via NFC or DALI Read more
Specifications
Brand:
Tridonic
Behuizing:
built in back box/Remote housing
Input voltage:
230Vac
DALI Type:
DT6
DALI-2 certified:
Yes
Article number:
28004042
EAN:
9006210778853
Availability:
Out of stock, but available
Delivery time:
ca. 8 Business Days
Information
Datasheet
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Can be either used build-in or independent with clip-on strain-relief (see accessory)
- Dimming range 1 to 100 % (min. 5 mA)
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 300 – 700 mA via NFC or DALI
- Max. output power 28 W
- Up to 86 % efficiency
- Lowest power input on stand-by < 0.35 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at www.tridonic.com)
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION)
- Terminal blocks: 45° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC, DALI)
- Constant light output function (CLO)
- Protective features (overtemperature, short-circuit, overload, no-load)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE (NFC, DALI)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
- In-field programming possible after installation with NFC interface
Typical applications
- For downlight, spotlight and decorative applications
| Rated supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. rated current (at 230 V, 50 Hz, full load) | 153 mA |
| Typ. current (220 V, 0 Hz, full load, 15 % dimming level) | 29 mA |
| Leakage current (at 230 V, 50 Hz, full load) | < 0.25 mA |
| In-rush current (peak / duration) | 3.31 A / 43 µs |
| Max. input power | 32.87 W |
| Typ. power consumption on stand-by | < 0.35 W |
| Typ. efficiency (at 230 V, 50 Hz, full load) | 86 % |
| λ (at 230 V, 50 Hz, full load) | 0.97 |
| λ (over full operating range) | 0.47 – 0.97 C |
| THD (at 230 V, 50 Hz, full load) | < 10 % |
| Starting time (AC mode) | < 0.7 s |
| Starting time (DC mode) | < 0.5 s |
| Switchover time (AC/DC) | < 0.8 s |
| Turn off time (at 230 V, 50 Hz, full load) | < 0.05 s |
| Output current tolerance | ± 5 % |
| Max. output current peak (non-repetitive) | ≤ output current + 20 % |
| Output LF current ripple (< 120 Hz) | ± 2 % |
| Output P_ST_LM (at full load) | ≤ 1 |
| Output SVM (at full load) | ≤ 0.4 |
| Max. output voltage (U-OUT) | 60 V |
| Dimming range | 1 – 100 % (min. 5 mA) |
| Mains surge capability (between L - N) | 1 kV |
| Mains surge capability (between L/N - PE) | 2 kV |
| Burst protection | 1 kV |
| Burst / surge peaks output side against PE | < 3 kV |
| Ambient temperature ta | -20 – 50 °C |
| Max. casing temperature tc | 80 °C |
| Type of protection | IP20 |

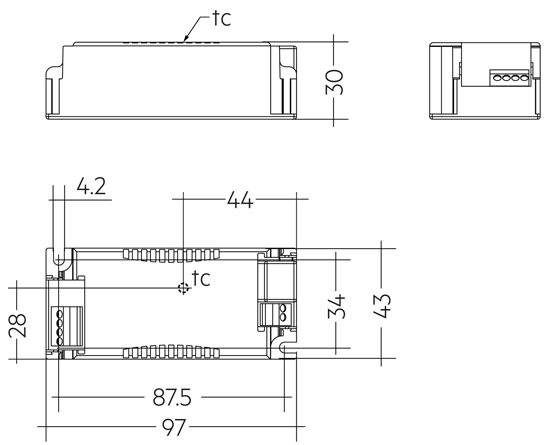

| Length | 97 mm |
| Width | 43 mm |
| Height | 30 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
(1) Valid at 100 % dimming level.
(2) Depending on the selected output current.
(3) Depending on the DALI traffic at the interface.
(4) Valid for immediate change of power supply type otherwise the starting time is valid.
(5) Output current is mean value.
(6) L-N acc. to EN 61000-4-5. 2 Ohm, 1.2/50 µs, 8/20 µs.
(7) Also applies to corridorFUNCTION.
