Tridonic EM cPK PRO 232A LiFePO4 DALI-2 emergency LED driver 54V

Information

Hier klicken für Informationen auf der Tridonic-Website

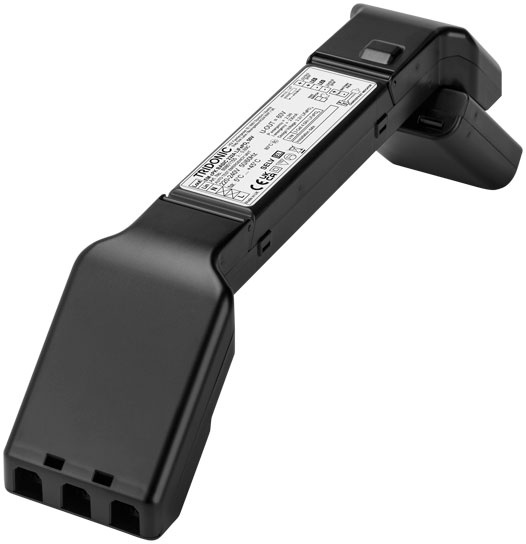

Tridonic EM cPK PRO 232A LiFePO4 50V EM conversion LED driver

Art. No.: 89801156

Application

This emergency lighting LED driver is designed for use with self-contained emergency lighting luminaires and is suitable for LED modules with a forward voltage of 10–54 V. The DALI-2 interface allows for easy testing and monitoring. Compatible with Tridonic LLE FLEX modules (ADV, EXC) and most constant current LED drivers (see data sheet).

Main Features

• Suitable for emergency lighting applications (EM = Emergency)
• DALI-2 interface for testing and monitoring
• Automatic test function (battery status, LED status, function test, duration test)
• Constant power output, non-maintained operation
• For LED modules 10–54 V (SELV < 60 V DC)
• Nominal lifetime up to 100,000 hours
• LiFePO4 battery, high-temperature cells, electronic charge system
• 3-hour certified emergency duration (annual 3h duration test, weekly 5s function test)
• Two-colour status display LED
• Protections: deep discharge, short-circuit, polarity reversal (3-pole connector)
• Automatic shutdown in case of incorrect LED load
• Short-circuit-proof battery connection, LiFePO4 battery with Tridonic LiFeGuard
• Strain relief, easy installation
• Compatible with up to 100 units in rest mode, max. 1000 meters cabling

Technical Specifications

• Supply voltage: 220 – 240 V AC
• AC voltage range: 198 – 264 V
• Frequency: 50 / 60 Hz
• Forward voltage LED module: 10 – 54 V
• Max. output voltage (open circuit): 60 V
• SELV for output voltage < 60 V DC
• Output current: refer to EM converterLED BASIC data sheet
• Starting time in emergency: < 0.5 s
• Emergency duration: 3 hours
• Overvoltage protection: 320 V (for 48 h)
• Mains surge capability (L-N): 1 kV
• Mains surge capability (L/N-PE): 2 kV
• Rest mode max. number of emergency units: 100
• Rest mode max. wiring distance: 1000 m
• Battery: LiFePO4, 18650 cells, design life 4–8 years
• Charge/discharge protection, electronic monitoring
• Protection against deep discharge and short-circuit
• Polarity reversal protection via 3-pole connector
• SCIP code: 2a46516c-879b-423d-8965-c2def1756d66
• Customs tariff number: 85076000
• EAN: 9006210834849
• Country of origin: Great Britain (GB)

Interfaces and Technology

• DALI-2, automatic test function, monitoring and control
• 3-pole technology: 2-pole LED module changeover and delayed power switching
• Status indication via two-colour LED

Approvals and Certifications

DALI-2, CE, RoHS, EN 60598-2-22, SELV, suitable for emergency lighting, 5-year warranty (see conditions at Tridonic warranty conditions).

Important Notes

• Always check the compatibility of battery and connected LED modules as per data sheet.
• For indoor use only and installation by qualified personnel.
• Automatic shutdown in case of incorrect LED load ensures extra safety.
• For correct operation and warranty, follow Tridonic installation instructions.
