DALI-2 input controller - DALI XC G3 CWM 30 DA2

Name: Tridonic DALI-2 input controller - DALI XC G3 CWM 30 DA2
Brand: Tridonic
Price: 98.43 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€98,43 Excl. tax €196,85 Excl. tax
€119,10 Incl. tax €238,19 Incl. tax. Out of stock, but available

Unit price: €98,43 / Piece

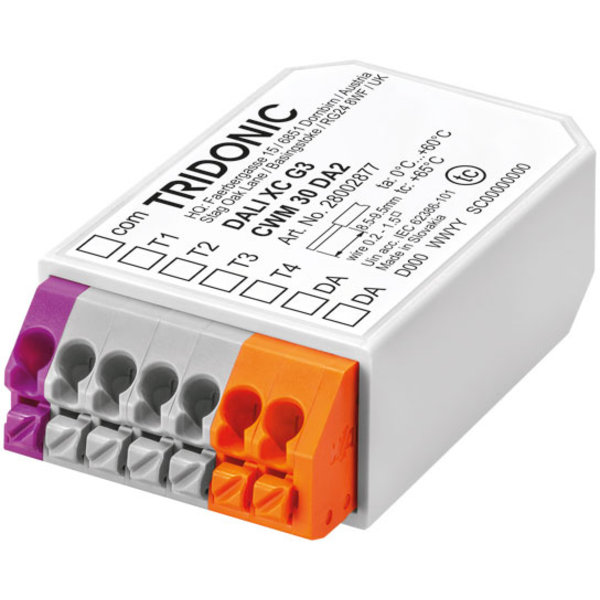

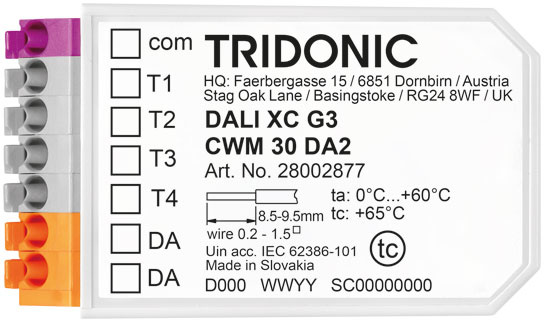

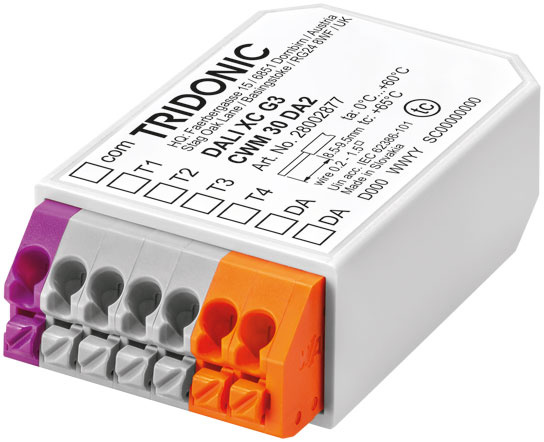

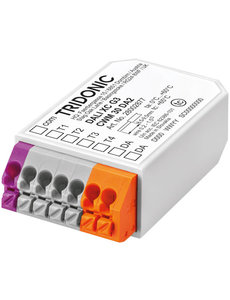

DALI-2 input controller with 4 independent inputs for floating contacts or push buttons. Powered via the DALI-2 line and compatible with DALI-2 Application Controllers. Includes 25 cm connection wires. Read more

Specifications

Brand:

Tridonic

Housing:

built in back box

DALI-2 certified:

Yes

Article number:

28002877

EAN:

9006210708881

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Due to the holidays, orders may be delayed and pickup is not possible.

Information

Datasheet

DALI XC G3 CWM 30 DA2 - DALI-2 Input Controller

Article No.: 28002877

Product Description

The DALI-2 input controller offers four independent inputs for connecting floating contacts or standard push buttons. This enables flexible and advanced lighting control systems. Operates via the DALI-2 line and is compatible with DALI-2 certified application controllers.

Key Features

4 independent inputs for push buttons or relays
Compatible with DALI-2 certified application controllers
Operates via the DALI-2 line
Includes 25 cm connection wires
Suitable for DALI-2 lighting systems
Not compatible with the Tridonic comfortDIM system
5-year warranty

Technical Specifications

Power Supply	DALI-2 line
Operating Voltage	9.5 – 22.5 V
Startup Time	≤ 6 seconds
Inputs	4 (momentary-action switches or relays)
Interface	DALI-2
Storage Temperature	-25 – 60 °C
Humidity	20% - 90% (non-condensing)
Housing Material	Polycarbonate
Color	Light grey (RAL 7035)
Warranty	5 years

Compatibility and Installation

The DALI XC G3 is designed for use with DALI-2 certified or compatible lighting control systems. The device is powered directly via the DALI-2 line, eliminating the need for an additional power source.
