TA 4 S DALI-2 – 4-fold potential-free binary input – UP -DALI 2
€78,70 Incl. tax €131,16 Incl. tax. Out of stock, but available
Specifications
Information

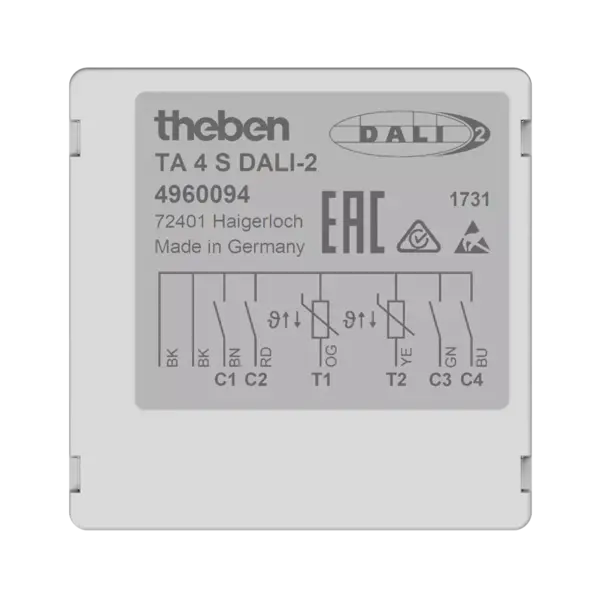

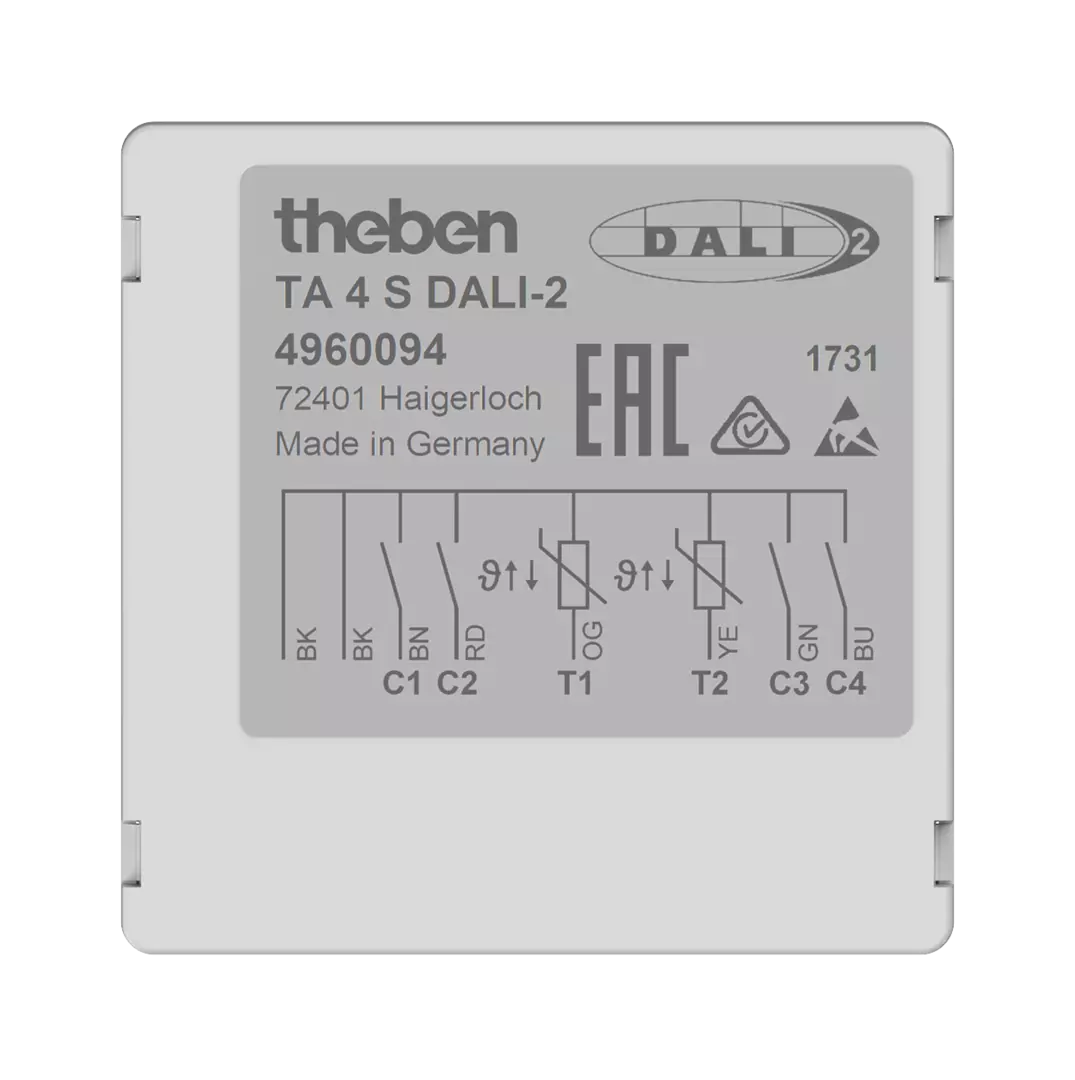

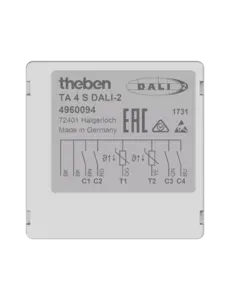

TA 4 S DALI-2 – 4-fold DALI-2 pushbutton interface flush-mounted
Art. no.: 4960094
Comprehensive product description
The Theben TA 4 S DALI-2 is a high-quality, compact 4-fold pushbutton interface for DALI-2 installations, designed for easy integration into standard flush-mounted boxes. This interface allows connection of up to four potential-free switches or pushbuttons, each configurable as normally open or normally closed contact. The contact type is easily adjustable via the internal memory bank.
In addition, the device offers two extra inputs for connecting variable resistors, such as sliders, potentiometers, or Theben temperature sensors according to IEC 62386 Part 302. The desired sensor can be selected directly via the memory bank. Identification of the interface is clearly indicated by an integrated LED display.
The TA 4 S DALI-2 is powered entirely by the DALI bus (no external power supply required) and can be addressed as a DALI participant according to IEC 62386, Part 102. Installation is quick and simple in any standard flush-mounted box. Thanks to its versatility, this interface is ideal for smart building applications such as switching, dimming, or scene control in lighting and building management systems.
Main features
- 4-fold DALI-2 pushbutton interface for potential-free switches (NO or NC contact)
- Contact type per input adjustable via memory bank
- 2 extra inputs for variable resistors (potentiometers, sliders, temperature sensors)
- Sensor selection directly adjustable via memory bank
- LED indicator for easy interface identification
- Addressable as DALI bus device according to IEC 62386 Part 102
- Powered via DALI bus – no external power required
- Easy installation in standard flush-mounted boxes
- Ideal for smart building and lighting management projects
Technical specifications
| Number of switch inputs | 4 (potential-free, NO or NC, adjustable) |
| Additional inputs | 2 (for variable resistors such as potentiometers or temperature sensors, IEC 62386 Part 302) |
| Power supply | Via DALI bus |
| Addressing | IEC 62386 Part 102 (DALI-2 standard) |
| Identification | LED indicator |

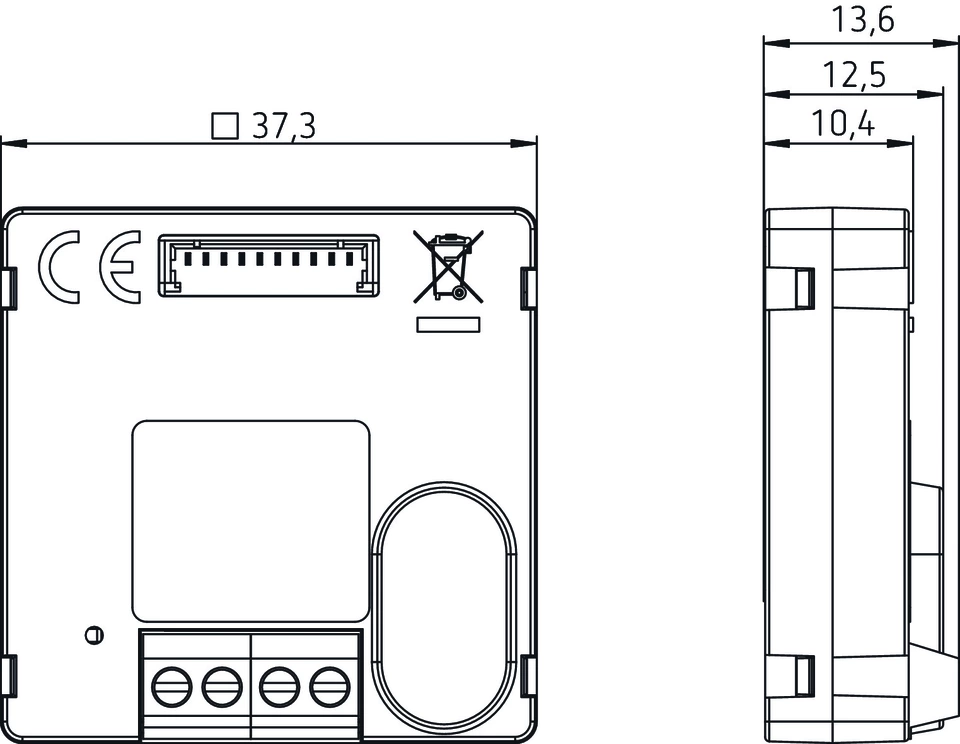

| Mounting | Flush-mounted (UP), standard flush box |
| Protection class | II (double insulated, no earth required) |
| Protection rating | IP 20 |
| Ambient temperature | Indoor use only |
| Compatibility | All DALI-2 systems and components according to IEC 62386 |
Important notes
- The TA 4 S DALI-2 is intended exclusively for use in DALI-2 installations.
- Installation and wiring must be carried out by a qualified electrician in accordance with applicable regulations.
- Ensure proper use of potential-free switches and suitable sensors for correct operation.
- Not suitable for outdoor use or damp environments (IP20, indoor use only).
