DALI-2 CS Mini Integration GW – Motion/light sensor Instance IP20/IP65
Specifications
Information

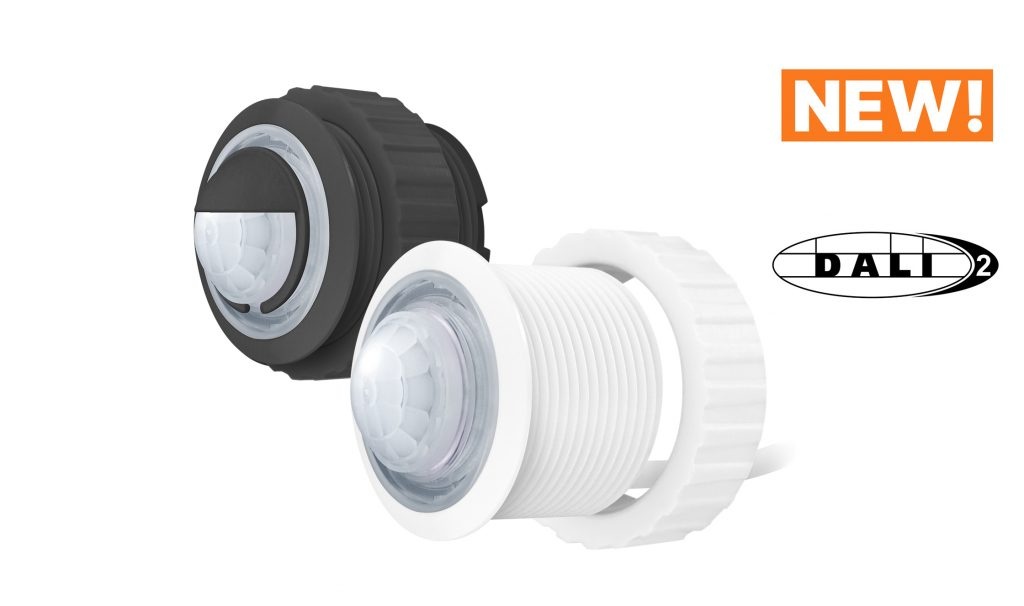

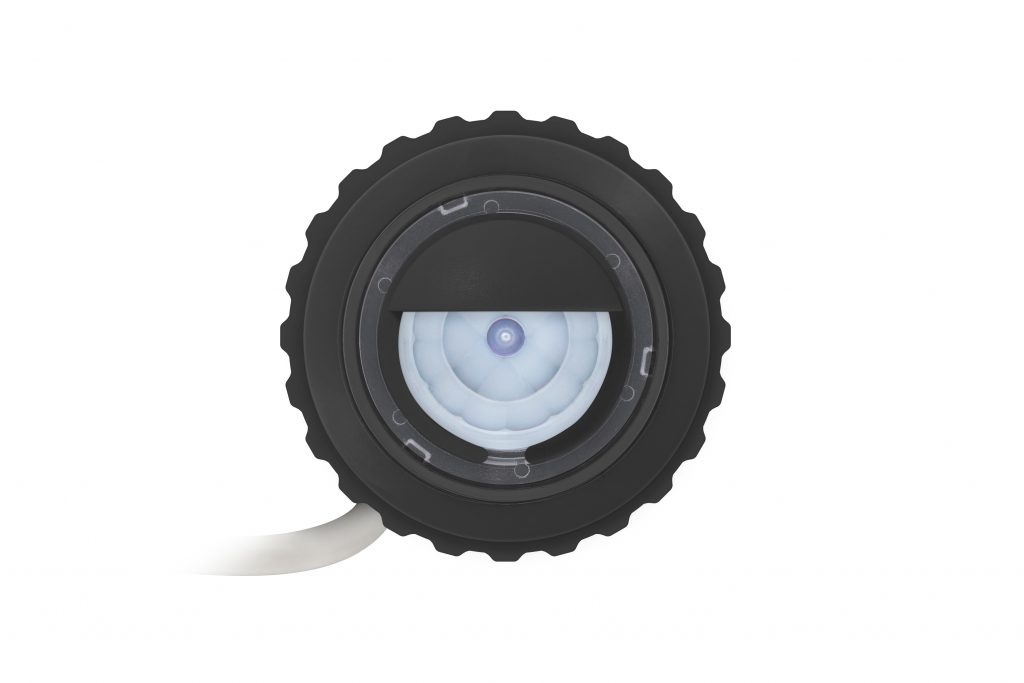

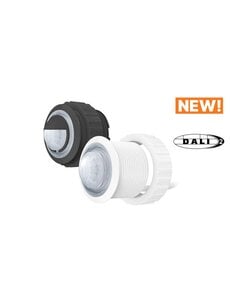

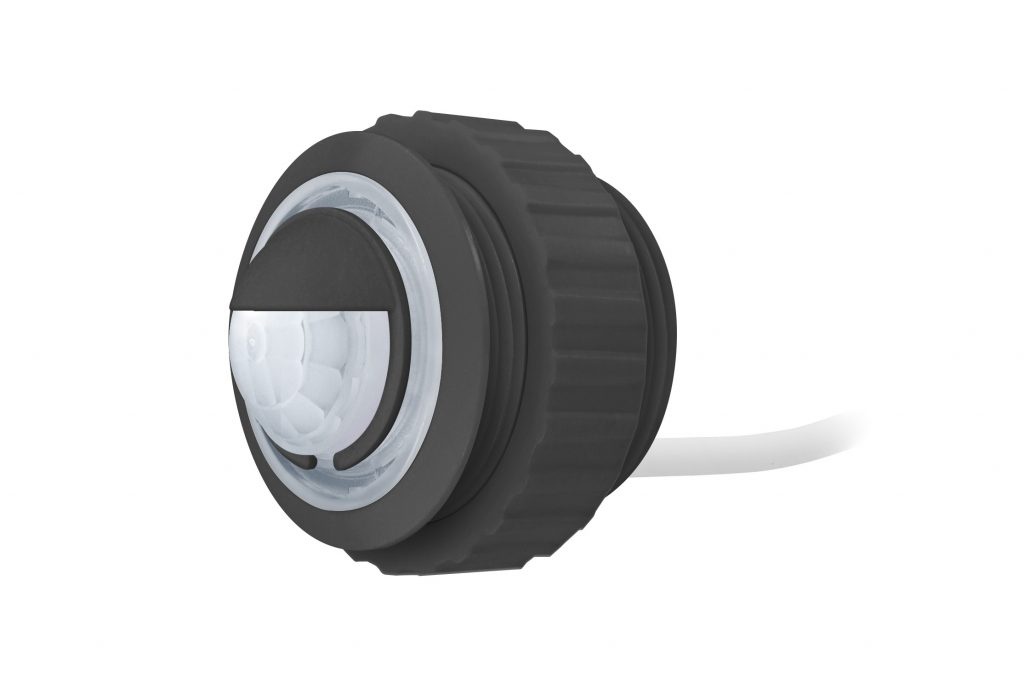

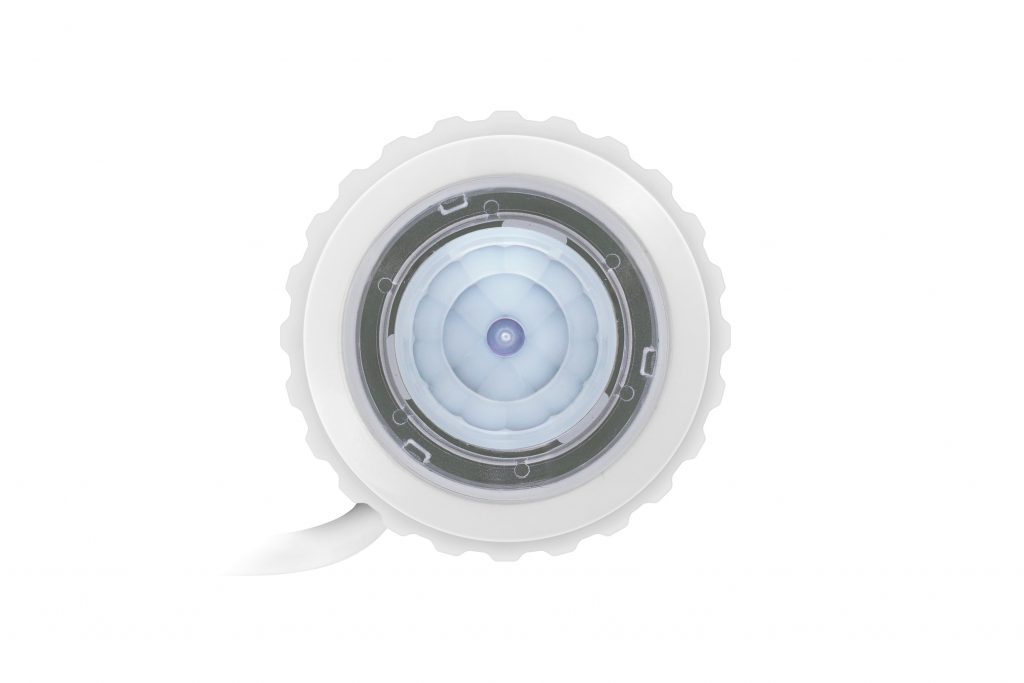

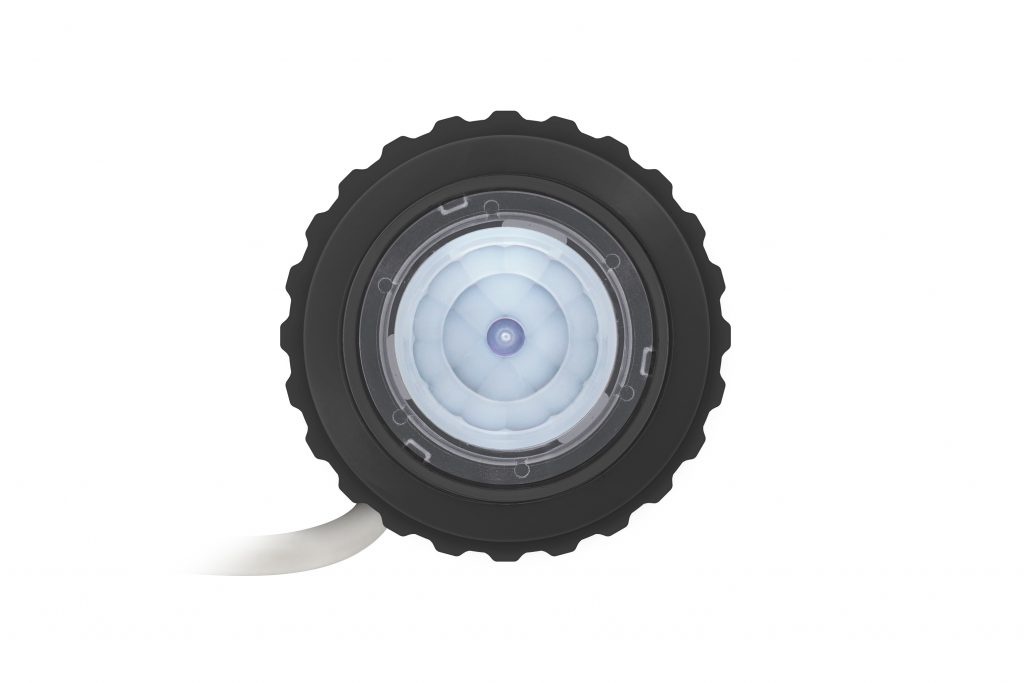

DALI-2 CS Mini Integration GW – Motion and Light Sensor for Instance Mode
Available Variants

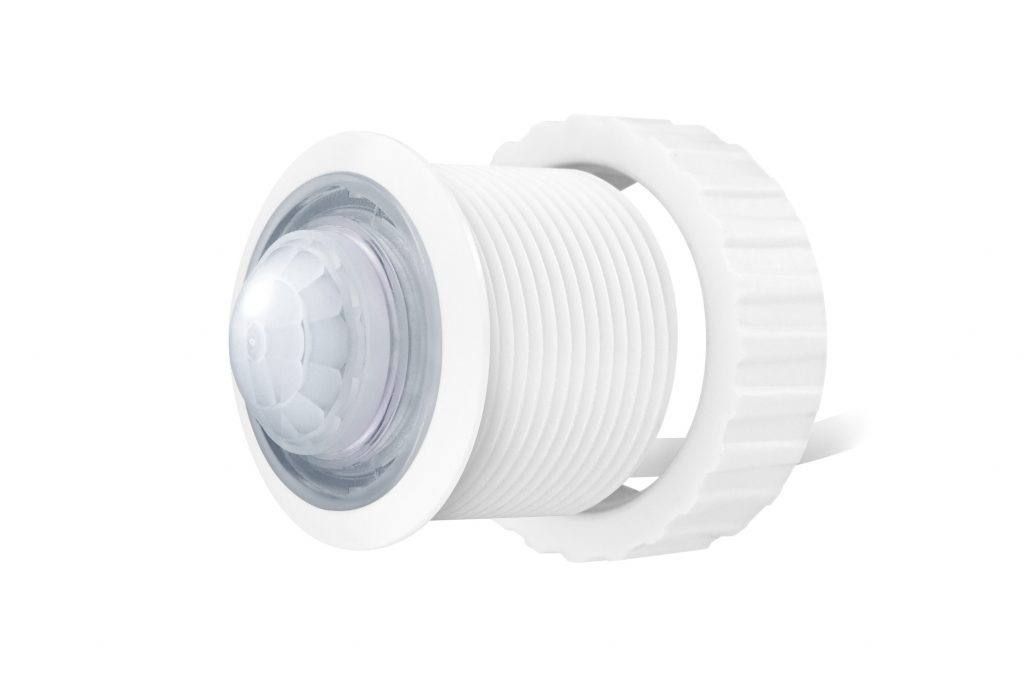

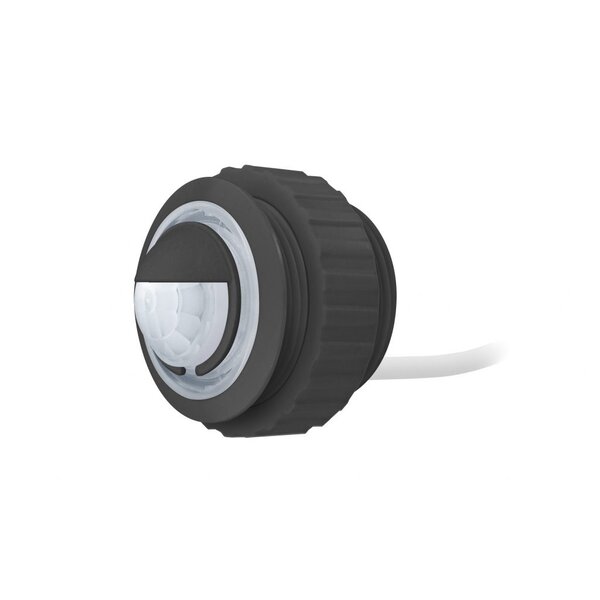

| 86457244-GW-INT | Black, IP20 – For indoor use, mounting with thread |

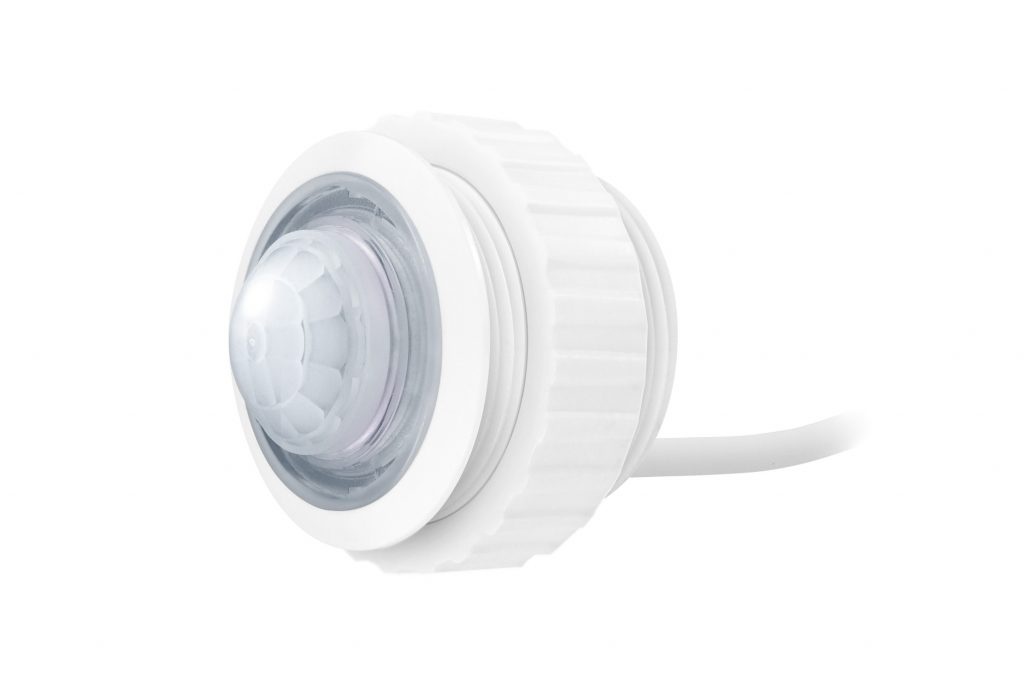

| 86457244-GW-INT-W16 | White (RAL9016), IP20 – For indoor use, mounting with thread |
| 86457244-GW-INT-IP65 | Black, IP65 – For outdoor or humid environments, mounting with thread |
| 86457244-GW-INT-W16-IP65 | White (RAL9016), IP65 – For outdoor or humid environments, mounting with thread |
Application
The DALI-2 CS Mini Integration GW is a compact sensor for motion and light measurement, specially designed for use in instance mode within DALI-2 systems. The sensor transmits measurement data to a central control system (e.g., WAGO, Beckhoff, or DALI-2 controllers) and can automatically generate events when values change. It does not include internal logic or light control — all processing occurs centrally. Configuration and parameterisation are done via DALI Cockpit software.
Main Features
- Motion detection via PIR sensor with standard detection area and an additional sensitive close zone for fine movement.
- Light measurement (lux) with integrated light sensor.
- Operates in instance mode – delivers measurement data to central systems only.
- Event generation on value changes via DALI-2 instances.
- Configured and parameterised via DALI Cockpit software.
- Multiple sensors can be used within the same system.
- Powered directly via the DALI bus – no external power supply required.
Technical Data
| Power supply | Via DALI bus |
| Current consumption | Typically 4.5 mA |
| Function | Motion and light sensor, instance mode |
| Detection principle | PIR (passive infrared) |
| Mounting height | 2.3 to 3 meters |
| Detection area | Up to 36 m² (at 2.3 m) or 48 m² (at 3 m) |
| Detection angle | ±44° (sensitive close zone), ±90° (standard area) |
| Minimum temperature difference | 4 °C |
| Light sensor range | 0–2047 lux |
| Light sensor resolution | 1 lux (11 bit) or 2 lux for DALI-2 event (10 bit) |
| Cable length | 350 mm |
| Dimensions | 28.3 × 28.3 × 27 mm (L × W × H) |

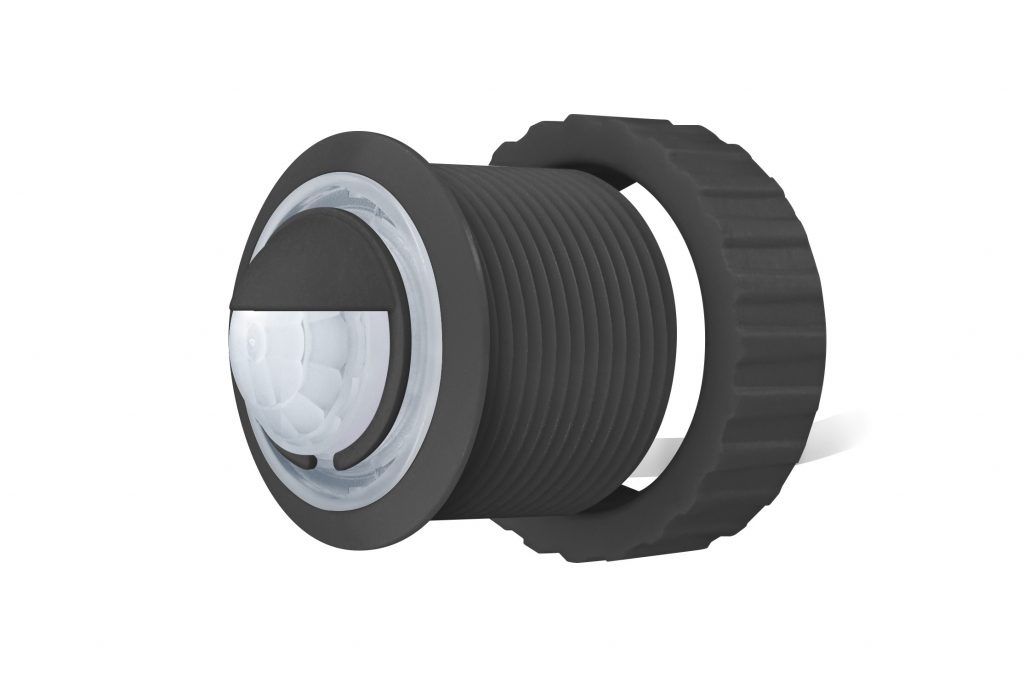

| Mounting | With thread and nut, optional with rubber ring |
| Protection class IP20 | 86457244-GW-INT (black), 86457244-GW-INT-W16 (white) |
| Protection class IP65 | 86457244-GW-INT-IP65 (black), 86457244-GW-INT-W16-IP65 (white) |
| Operating temperature | -20 °C to +70 °C |
Important Notes
- The DALI-2 CS Mini Integration GW operates exclusively in instance mode. There is no internal light control.
- The sensor transmits measurement data to central control systems like DALI-2 controllers, WAGO, or Beckhoff.
- IP20 versions are intended for indoor use.
- IP65 versions are dust and waterproof, suitable for outdoor or humid environments.
- Configuration and parameterisation are done via DALI Cockpit software.
- The detection area depends on the mounting height – up to 48 m² at 3 m.
- Powered fully via the DALI bus – no additional power supply is required.
- Multiple sensors within one system synchronise automatically.
