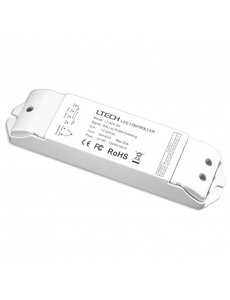

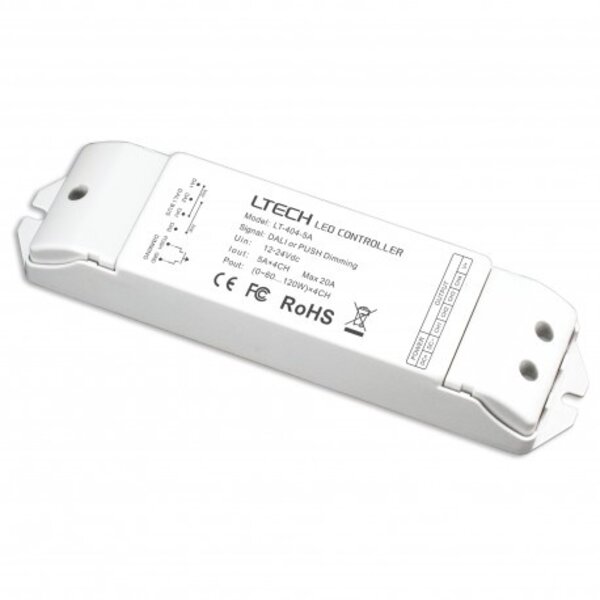

LED Driver DALI 4x5A | input 12-24Vdc / Output 12-24Vdc

Name: LTECH LED Driver DALI 4x5A | input 12-24Vdc / Output 12-24Vdc
Brand: LTECH
SKU: 2264900
Price: 67.11 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€67,11 Excl. tax €97,94 Excl. tax
€81,20 Incl. tax €118,51 Incl. tax. Out of stock, but available Manual

Unit price: €67,11 / Piece

LED Driver for DALI control, 4 channels at 5A, constant voltage, RGBW lighting, PWM-CV, dimmable from 0-100%, CE certified, IP20, indoor use. Read more

Specifications

Brand:

LTECH

Housing:

Surface mounted

Input voltage:

12-24Vdc

DALI Type:

DALI-2 certified:

Article number:

LT-404-5A

SKU:

2264900

Availability:

Out of stock, but available

Delivery time:

Dispatched within approximately 8 working days (please note: this is an estimate and depends on availability from the manufacturer; in some cases, it may be dispatched sooner, but it can also take longer).

Due to the holidays, orders may be delayed and pickup is not possible.

Information

Datasheet

LED Driver DALI 4x5A

General Description: LED Driver for DALI control, suitable for 4 channels of 5A. This product provides constant voltage (RGBW) and supports dimming from 0 to 100% via PWM-CV. It is CE certified and suitable for indoor use (IP20). The driver is designed for 12V ~ 24V DC input and has a maximum output power of 480W at 24V and 240W at 12V. The product is compatible with DALI control and offers Push Dim functionality.

Technical Specifications:

Product Type: Constant Voltage Driver
Length: 175 mm
Width: 44 mm
Height: 30 mm
Housing Color: White
Housing Material: Plastic
Mounting: Surface mounted
Weight: 140 g
Strip Length: 9 mm
Wire Type: 2.5 mm²
Input Voltage: 12V ~ 24V DC
Output Voltage: 12V ~ 24V DC
Max Output Current per Channel: 5000 mA
Max Output Current (Total): 20 A
Output Power at 24V: 480W
Output Power at 12V: 240W
LED Outputs: 4
Dimming Range: 0-100%, logarithmic dimming curve
Operating Temperature: -30 ~ +55 °C
IP Rating: IP20
Certifications: CE
Warranty: 5 years
Standards: EMC, RoHS
Signal: PWM-CV
Control: DALI, Push Dim

Note: This product is only suitable for indoor use (IP20) and must be connected to a DALI system for full functionality. Ensure that the driver's voltage requirements match the LED application to guarantee optimal performance.
