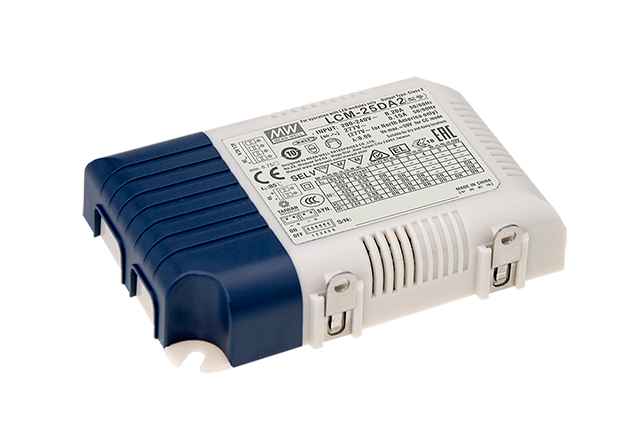

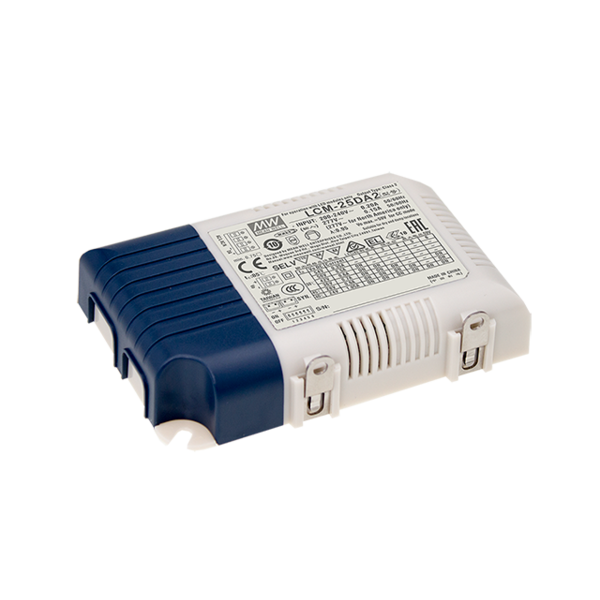

LCM-25DA2 LED driver 25 W 0.7 A 6 - 54 V Constant Current (CC)

29,50 Excl. tax€35,70 Incl. tax In stock (191) Manual
Unit price: €29,50 / Piece
The LCM-25DA2 LED driver is an AC-DC multi-stage output component with constant current (CC). Output of 0.35A/0.6A/0.7A/0.9A/1.05A, suitable for DALI 2.0 and push dimming. Read more

Specifications

Brand:
Meanwell
Article number:
LCM-25DA2
EAN:
6971663550147
Availability:
In stock (191)
Delivery time:
Will be shipped within 1 to 2 working days.

Information

Datasheet

LCM-25DA2 LED Driver 25 W

The LCM-25DA2 LED driver is a high-quality AC-DC multi-stage output component with constant current (CC). This driver offers a flexible output current of 0.35A, 0.6A, 0.7A, 0.9A, and 1.05A, making it suitable for a wide range of LED applications. It supports DALI 2.0 and push dimming, allowing easy integration into various lighting systems.

The LCM-25DA2 is designed with active PFC (Power Factor Correction) to increase efficiency and reduce energy consumption. With a wide input voltage range of 180V to 277V, this driver is versatile and reliable. The compact design in an enclosed plastic housing ensures easy installation and protection against environmental factors.

In addition to the LCM-25DA2, we also offer the LCM-40DA2 and LCM-60DA2, which provide 40 W and 60 W output power, respectively. All these models comply with the latest standards for LED lighting, including EN 61347.

Technical Specifications

  • Output Current: 0.35A / 0.6A / 0.7A / 0.9A / 1.05A
  • Output Power: 25 W
  • Output Voltage: 24V / 28V / 36V / 42V / 50V / 54V
  • Input Voltage: 180 - 277V
  • IP Rating: IP20
  • Dimmable: DALI 2.0 and push dimming
  • Dimensions: 65 mm (W) x 23 mm (H) x 105 mm (D)
  • Net Weight: 170 g
  • RoHS compliant
  • Warranty: 36 months
