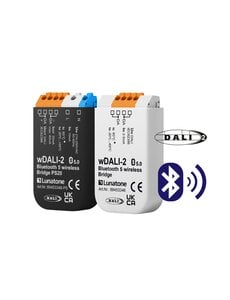

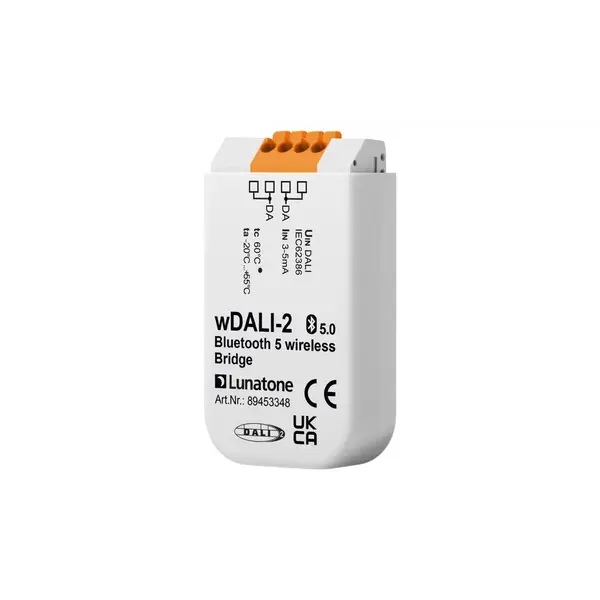

wDALI-2 BT5 wireless bridge
€169,01 Incl. tax €180,29 Incl. tax. Out of stock, but available Manual
Specifications
Information
Description
The wDALI-2 BT5 wireless Bridge enables wireless connection of spatially separated DALI lines using Bluetooth 5 Long Range technology. The connection is fully bidirectional, allowing both control and DALI queries from either side.
Configuration and pairing is done easily via the DALI Cockpit PC Software. One module is set as Master and automatically searches for available Slave modules within range. After pairing, DALI devices in the Slave DALI lines can be addressed and configured wirelessly.
The wireless connection range is up to 300 meters outdoors and approximately 10 to 20 meters indoors, depending on building construction.
Warning: This product is supplied as a single unit. At least 2 modules are required for a working wireless connection. This is not a set.
Product variants

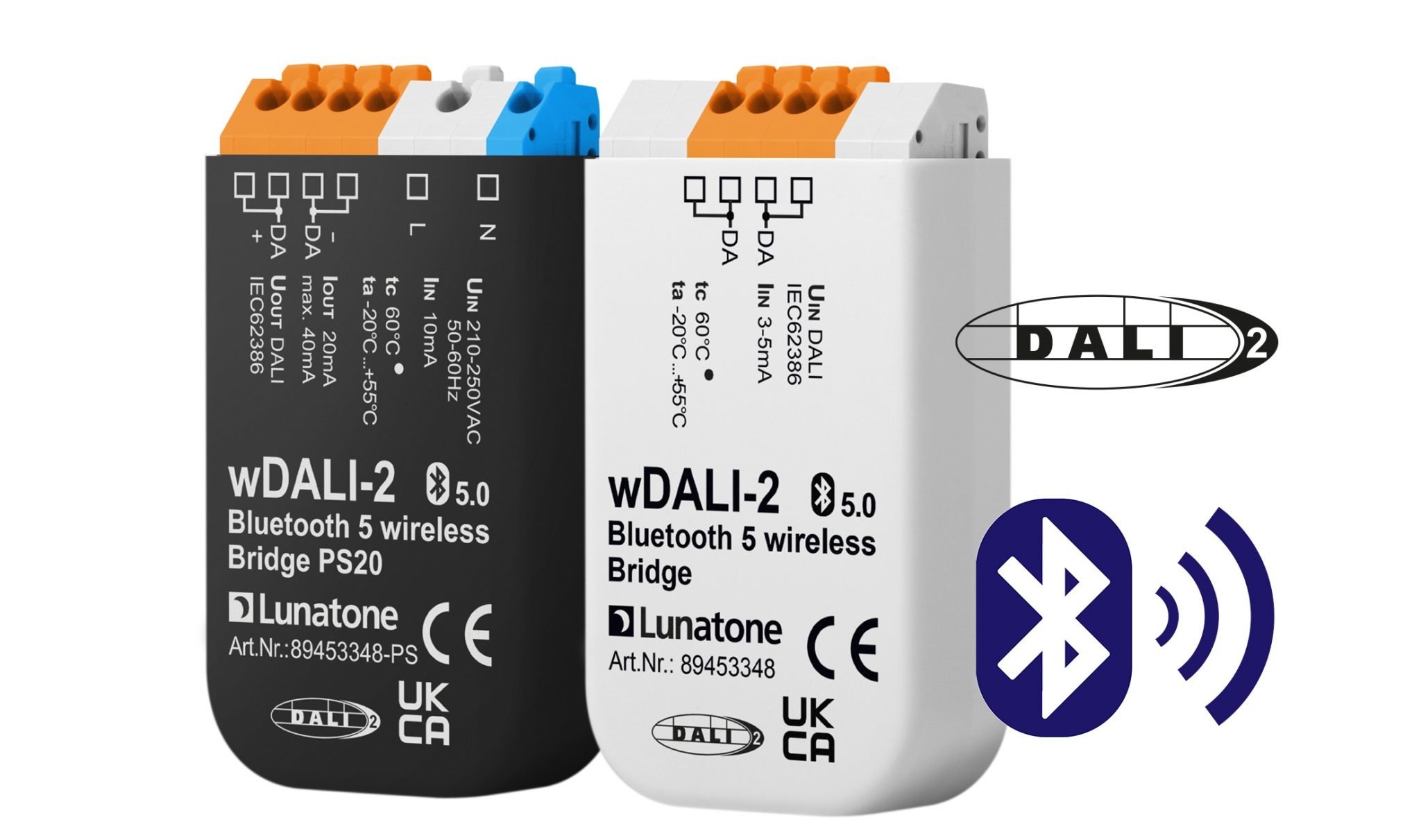

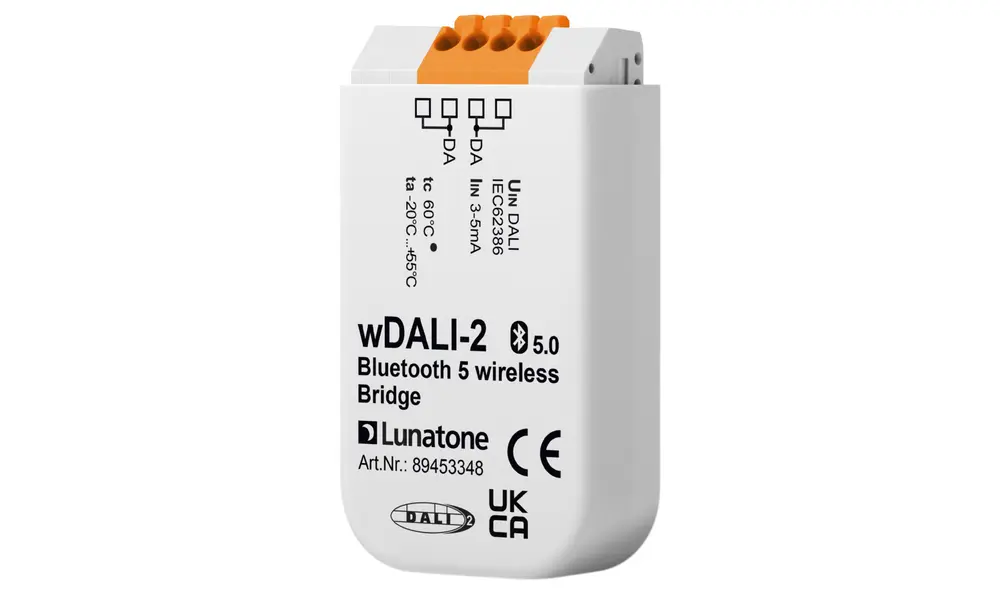

- 89453348 – standard version without integrated DALI power supply (powered via DALI bus)
- 89453348-PS – version with integrated DALI bus power supply 20mA (for up to 10 DALI ballasts)
Key features
- Wireless connection of separated DALI lines
- Bluetooth 5 Long Range technology
- Bidirectional communication (control and feedback)
- Support for DALI queries
- Configuration via DALI Cockpit software
- Range up to 300m outdoor and 10–20m indoor
- Suitable for flush-mounted installation
Technical specifications
- Operating temperature: -20°C to +55°C
- Protection class: IP40 (housing) / IP20 (terminals)
- Connection cross-section: max. 1.5 mm²
- Mounting: installation box
- DALI current consumption (standard): approx. 2mA
- Power supply (PS version): 210–250Vac, 50–60Hz
- Max. power consumption: 1W
- DALI supply (PS version): 20mA guaranteed
- Dimensions: 59 x 33 x 15 mm
Installation

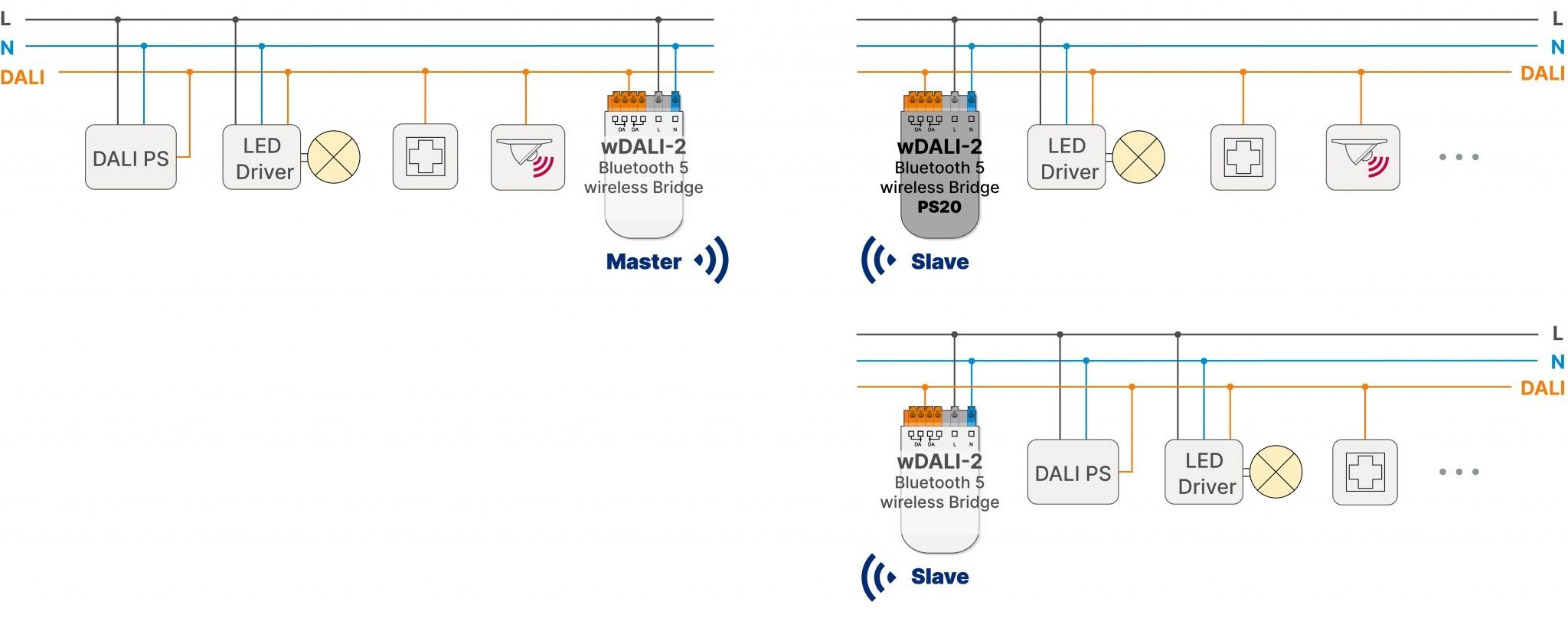

For proper operation, at least one module must be configured as Master and one as Slave. The modules communicate wirelessly via Bluetooth and create a bridge between two separate DALI systems.
