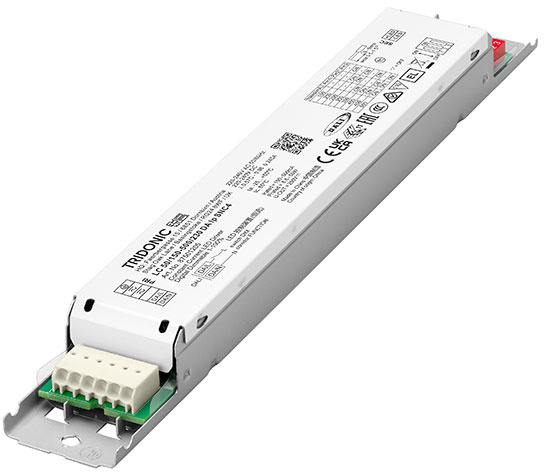

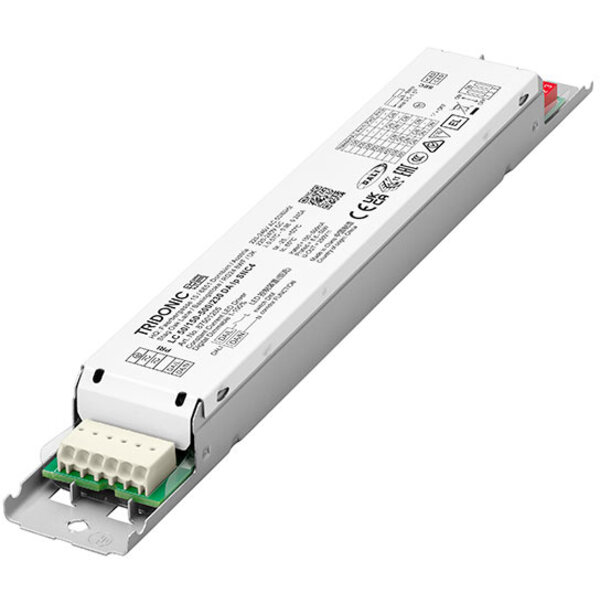

Constant Current LED Driver LC 50/150-500/230 DA lp SNC4 Linear Driver
€27,42 Incl. tax €54,84 Incl. tax. Not in stock in our warehouse, but available to order.
Specifications
Information
Tridonic DALI-2 Constant Current LED Driver 150-500 mA, 50 W
The Tridonic constant current LED driver is a professional dimmable LED control gear designed for demanding lighting applications. Featuring DALI-2, switchDIM and corridorFUNCTION compatibility, it offers exceptional flexibility for intelligent lighting systems and modern building automation.
The output current can be configured from 150 mA to 500 mA using DIP switches or precisely adjusted through DALI in 1 mA increments. With a maximum output power of 50 W, efficiency up to 93%, and a lifetime of up to 100,000 hours, this LED driver is an excellent choice for energy-efficient and long-lasting lighting installations.
Key Features
- Dimmable constant current LED driver
- DALI-2, switchDIM and corridorFUNCTION support
- Adjustable output current from 150 mA to 500 mA
- Maximum output power of 50 W
- Efficiency up to 93%
- 1–100% dimming range
- Constant Light Output (CLO)
- Suitable for emergency lighting systems according to EN 50172
- Lifetime up to 100,000 hours
- 5-year manufacturer warranty
- IP20 protection rating
- Compact low-profile metal housing
Technical Specifications
| Supply Voltage | 220 – 240 V AC |
| AC Voltage Range | 198 – 264 V |
| DC Voltage Range | 176 – 280 V |
| Mains Frequency | 0 / 50 / 60 Hz |
| Output Current | 150 – 500 mA adjustable |
| Output Power | 8.6 – 50 W |
| Maximum Output Voltage | 250 V |
| Dimming Range | 1 – 100% |
| Efficiency | Up to 93% |
| Power Factor | Up to 0.96 |
| THD | < 8% |
| Protection Rating | IP20 |
| Ambient Temperature | -20 °C to +70 °C |
| tc Point | 85 °C |

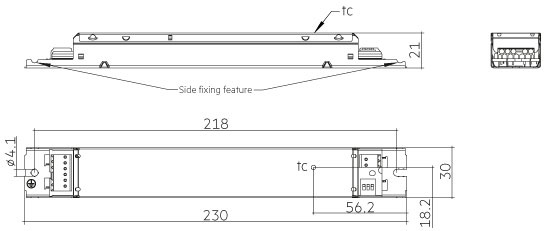

| Dimensions | 230 x 30 x 21 mm |
| Lifetime | Up to 100,000 hours |
| Warranty | 5 years |
Advanced Lighting Control
The integrated one4all interface supports DALI-2, switchDIM and corridorFUNCTION, making this driver suitable for intelligent lighting installations in offices, schools, hospitals, retail environments and industrial buildings.
Through companionSUITE or masterCONFIGURATOR software, additional functions such as Constant Light Output (CLO), corridorFUNCTION, scenes, groups, dimming curves, power-up fading and emergency lighting parameters can be configured.
Protection Features
- Overtemperature protection
- Short-circuit protection
- Overload protection
- No-load protection
- Overvoltage protection
- Surge protection up to 2 kV between L/N and earth
Applications
- Linear LED lighting
- Office lighting
- Panel luminaires
- Retail lighting
- Architectural lighting
- Public buildings
- Emergency lighting systems
- DALI-2 smart building installations
Combining high efficiency, extensive control options and exceptional reliability, this Tridonic LED driver is the ideal solution for professional LED lighting projects.
