Square tilting spot 85mm 5W Incl. Dali2 driver pre-assembled

96,08 Excl. tax €106,76 Excl. tax
€116,26 Incl. tax 129,18 Incl. tax.
Out of stock, but available
Unit price: €96,08
Square tilting spot 5W Incl. Dali2 driver pre-assembled 5W hole size 74mm outer size 85mm 500mA CC Read more

Specifications

Brand:
LEDLED-Meanwell
Article number:
Dali2-C2506-W-AV-wit
Availability:
Out of stock, but available

Information

Input voltage 230V ac
Power 5W
Class IP44
Kind Constant Current
Setpoint Constant Current 500mA
Input voltage light source 9-12Volt
Color temperature 27,30,40K
Bundle 36 graden
Driver Dali2
Dali 2 certified Yes
Dali parts 101,102,207,251
Lumen 500
Afmeting mm 85x85x45mm
Hole size 74mm
Driver dimensions 105x68x23mm
Connection cable 230V + KNX bus 5x0,5mm2
Connection cable type YY-LSOH-JB 5x0,5mm2 300/500V CE ROHS 2020 511 N. 212662
Color connection cable Orange
LED connection cable 2x0,5mm2
Color connection cable LED black

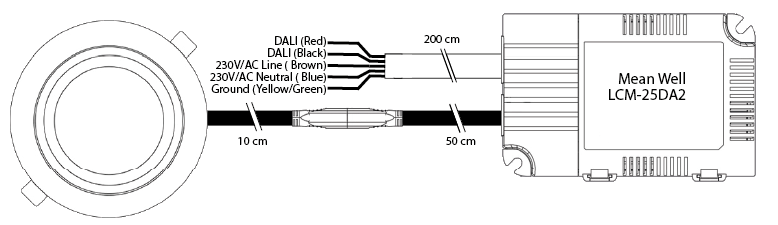

Connection diagram;
